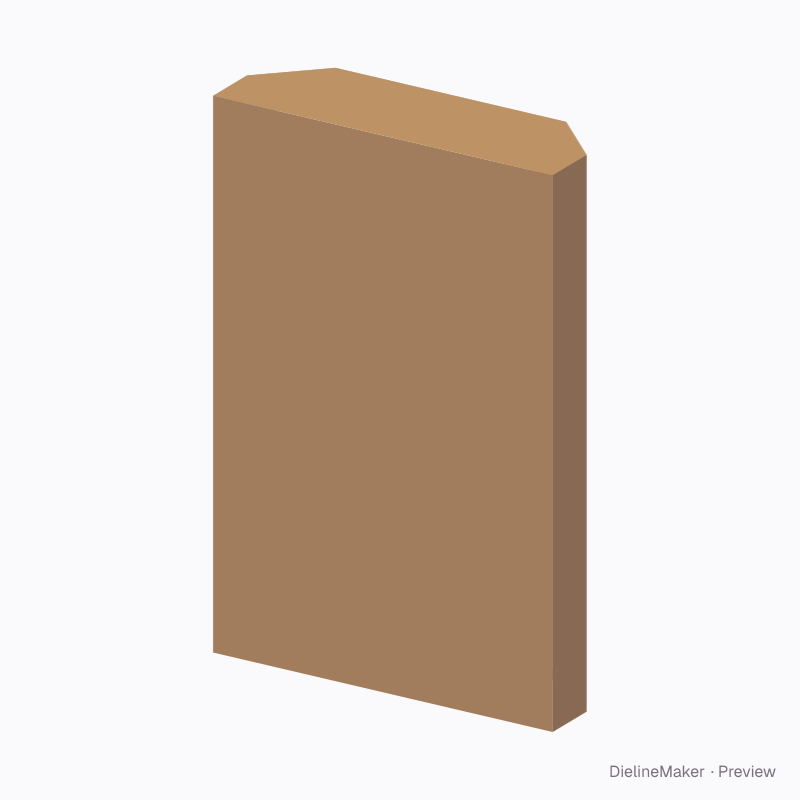

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DDOOR-CHAMFER-01Shipping
Chamfered double-door tray dieline
A tray whose long sides lean in on a chamfer and carry two half covers meeting in the middle, with chamfered end walls, folded ears and fold-over ends. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 300 × 64 mm
Outside203.2 × 303.2 × 65.6 mm
Flat blank540.1 × 552.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DDOOR-CHAMFER-01
- Inside size
- Width (both doors) 200 · Length 300 · Height 64 mm
- Size range
- Width (both doors) 80–600 · Length 80–800 · Height 30–250 mm
- Manufacturing
- 200 × 300 × 64 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.210 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for

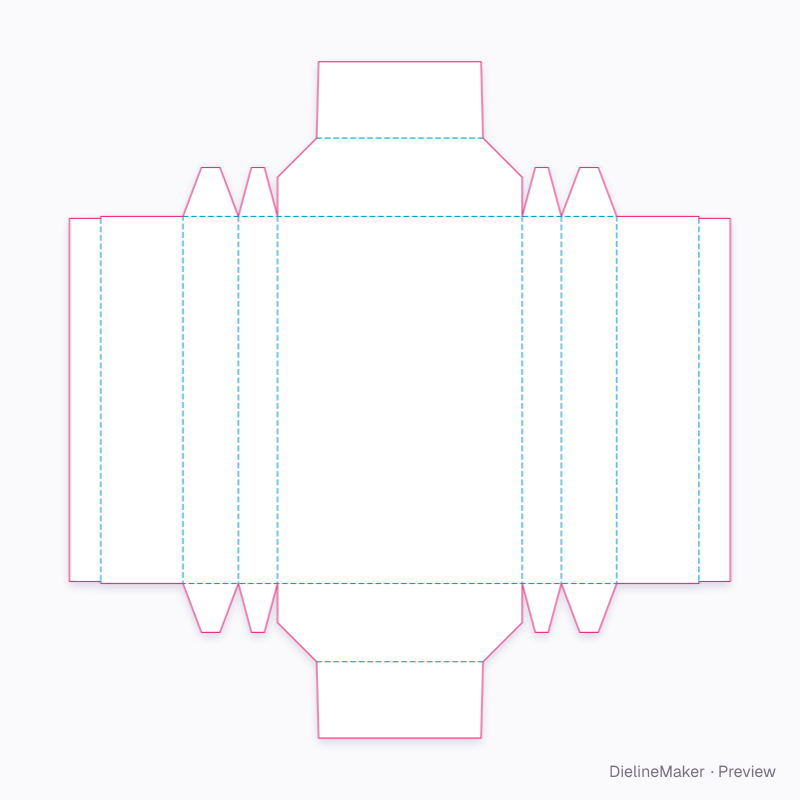

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DDOOR-CHAMFER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 200 × 300 | L × W |
| Right wall | 32 × 300 | – × W |
| Chamfer face ×2 | 45.3 × 300 | – × W |
| Right door | 67.2 × 300 | – × W |
| Centre lip ×2 | 25.6 × 296.8 | – × W − 2T |
| End ear ×4 | 32 × 40 | – |
| End ear ×4 | 45.3 × 40 | – |
| Left wall | 32 × 300 | – × W |
| Left door | 67.2 × 300 | – × W |
| Back end | 200 × 64 | L × H |
| End fold-over ×2 | 136 × 62.4 | – × H − T |
| Front end | 200 × 64 | L × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Chamfer lean°
- Chamfer face widthmm
- Centre lipmm

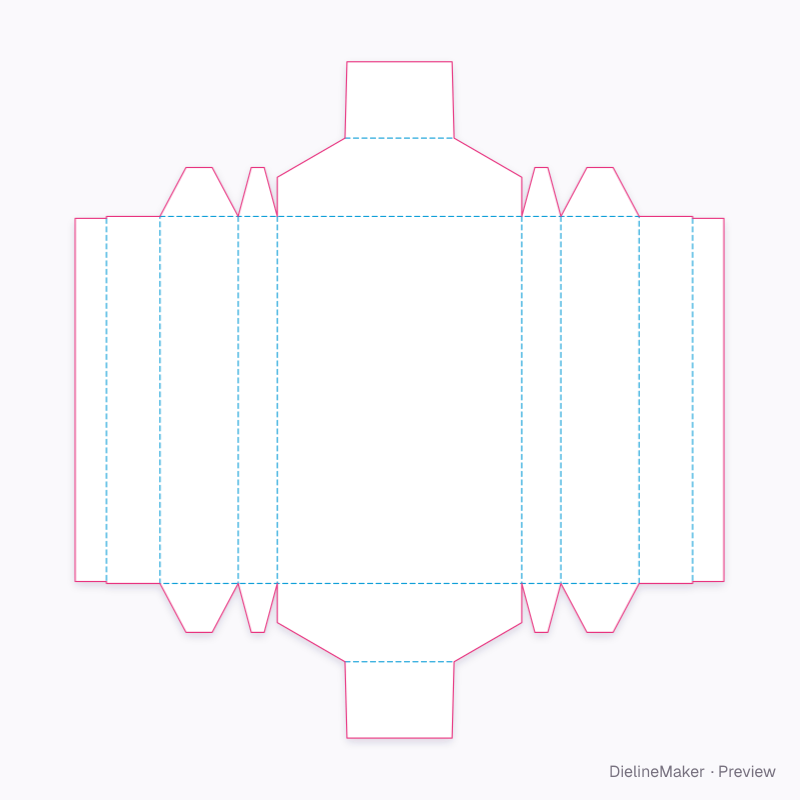

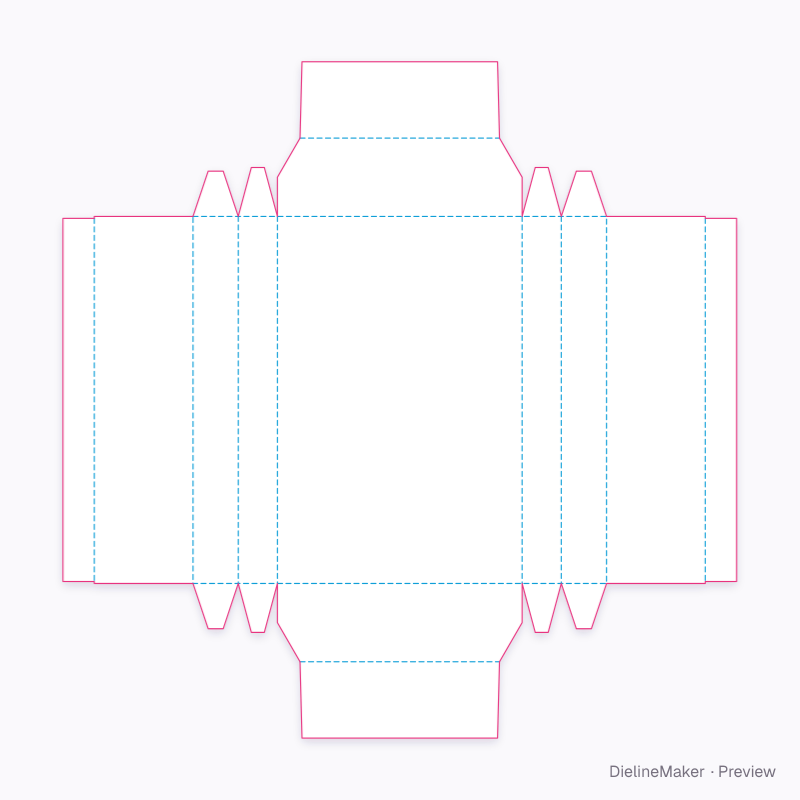

Ready-sized chamfered double-door tray presets
The same structure with sizes, boards and options set for a use.
