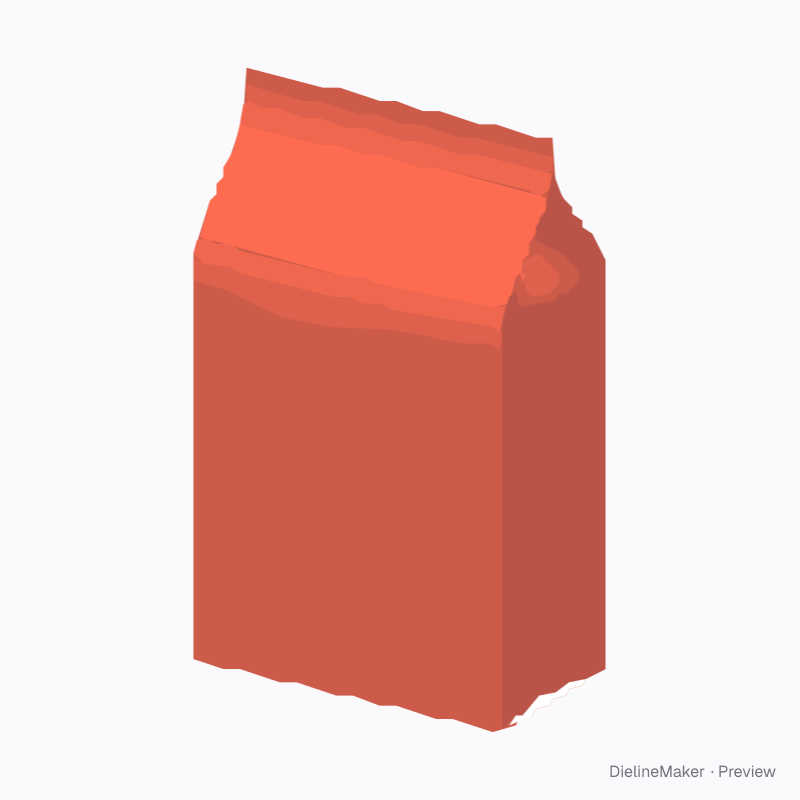

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Pet food box pouch 1.5 kg dieline
Block-bottom bag that stands square on the shelf. A ready-sized preset of the flat-bottom bag — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 300 mm
Outside180 × 300 mm
Flat blank560 × 300 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Front width 180 · Height 300 mm
- Size range
- Front width 50–300 · Height 100–500 mm
- Manufacturing
- 180 × 300 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Bag film, Bag base
- Board area
- 0.186 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Kraft 350Label glossPaper 170Clear BOPPWhite PET/PEClear PET/PEMet PET/PEKraft/PE
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Left gussetBag film | 100 × 300 | – × H |
| FrontBag film | 180 × 300 | L × H |
| Right gussetBag film | 100 × 300 | – × H |
| BackBag film | 180 × 300 | L × H |
| BaseBag base | 180 × 100 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Side gussetmm
- Top sealmm
- Degassing valveon / off
- Fill%
- Metallised filmon / off
- Carry header3 options
- Mouth2 options
- Resealable zipperon / off
