Composite can label template

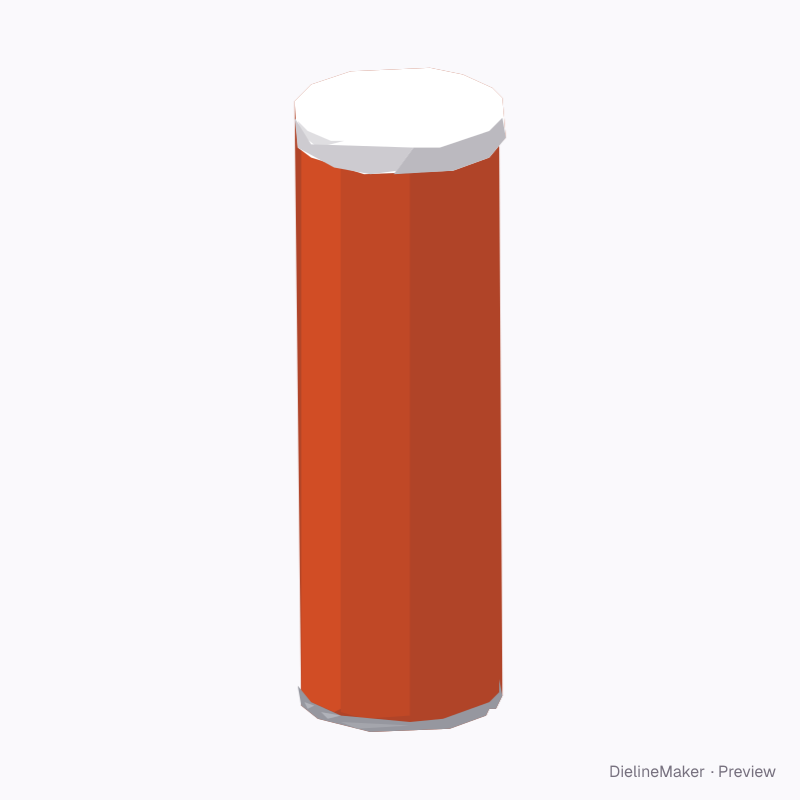

Spiral-wound paper can with a metal bottom end and a plastic overcap. The body wrap is the printed outer ply. Chips, nuts, cocoa, oats and coffee. A parametric template — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 75 × 230 mm
Artwork area242.6 × 219 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Diameter 75 · Height 230 mm
- Size range
- Diameter 40–160 · Height 60–350 mm
- Parts
- One artwork area
- Artwork area
- 0.053 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 6 options; the template and 3D preview follow each change.
- Wrap coverage%
- Overlapmm
- Label heightmm
- Label from basemm
- Overcap7 options
- Metal end3 options
Ready-sized composite can presets
The same model with sizes and artwork options ready to customize.
