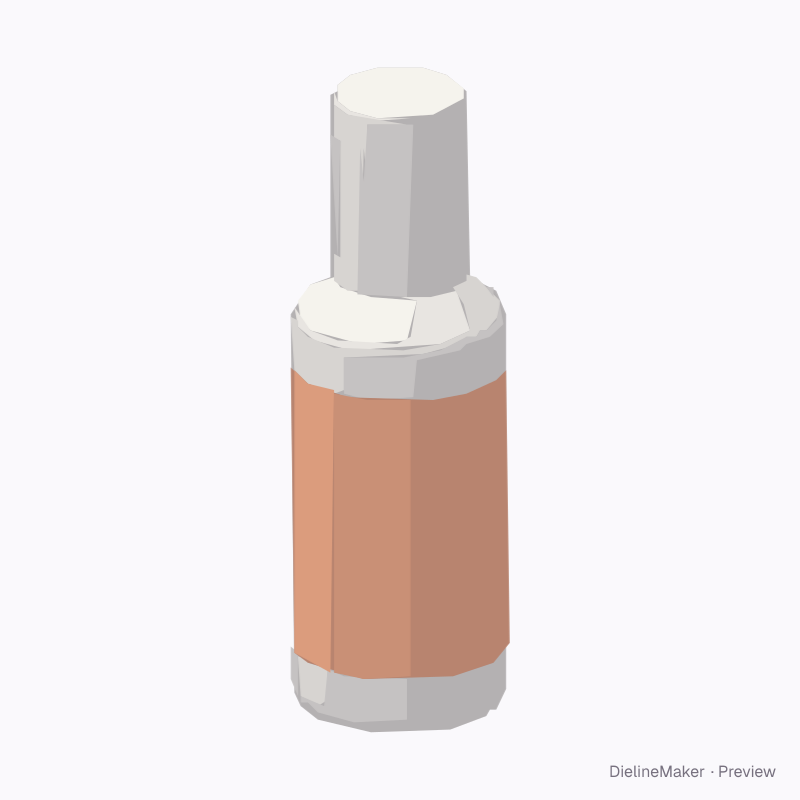

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Plastic nozzle dropper bottle label template
Squeezable round or octagonal plastic bottle with a hollow dispensing nozzle and a removable protective screw cap. Exports contain the straight-wall wrap label; mould tooling, cap fit, drop size and nominal fill capacity require supplier specifications. A parametric template — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 24 × 72 mm
Artwork area78.9 × 33.4 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Body width across flats 24 · Overall height 72 mm
- Size range
- Body width across flats 14–90 · Overall height 35–260 mm
- Parts
- One artwork area
- Artwork area
- 0.003 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 9 options; the template and 3D preview follow each change.
- Wrap coverage%
- Label overlapmm
- Label height (0 = auto)mm
- Label from base (0 = auto)mm
- Body shape2 options
- Bottle colour6 options
- Cap colour5 options
- Show fitted capon / off
- Dispensing closure3 options
Ready-sized plastic nozzle dropper bottle presets
The same model with sizes and artwork options ready to customize.
- Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this plastic nozzle dropper bottle yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
