Coffee sleeve 12 oz dieline
Glued sleeve for a 350 ml hot cup. A ready-sized preset of the cup sleeve — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 60 × 60 mm
Outside90 × 60 × 60 mm
Flat blank268.8 × 101.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Cup rim Ø 90 · Cup base Ø 60 · Sleeve height 60 mm
- Size range
- Cup rim Ø 55–130 · Cup base Ø 35–120 · Sleeve height 25–120 mm
- Manufacturing
- 90 × 60 × 60 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.015 m² · about 24 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350F-fluteSBS 300GD2 350Black 350SBS 18 pt
- Good for

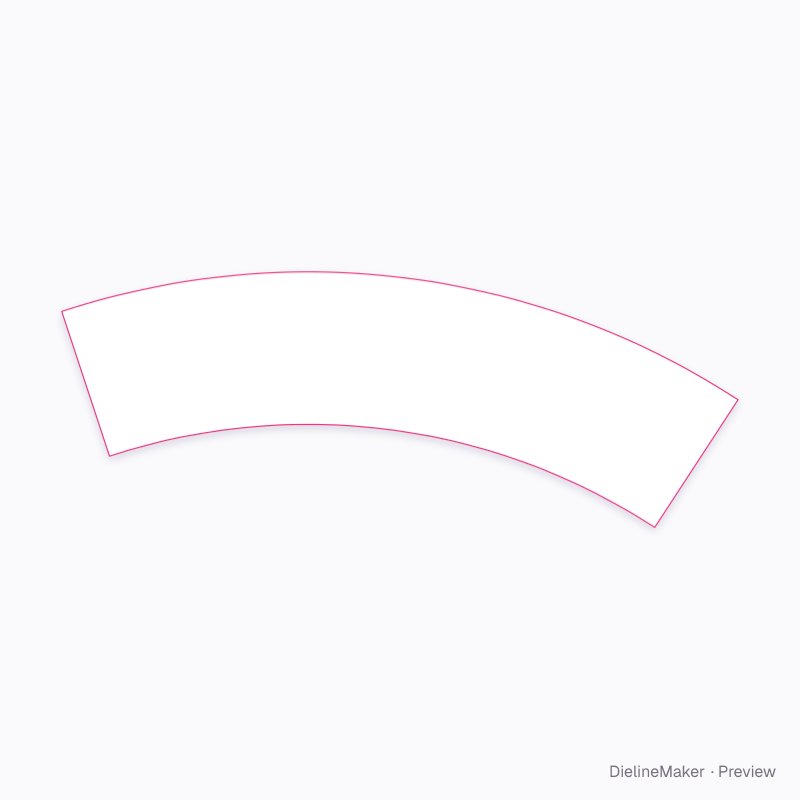

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Left strip ×7 | 9.5 × 60.6 | – |
| Front strip ×6 | 9.5 × 60.6 | – |
| Front strip | 9.5 × 60.6 | π·Ø / 28 × Slant |
| Right strip ×7 | 9.5 × 60.6 | – |
| Back strip ×7 | 9.5 × 60.6 | – |
| Overlap | 9.5 × 60.6 | – |
| Overlap | 5.4 × 60.6 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
