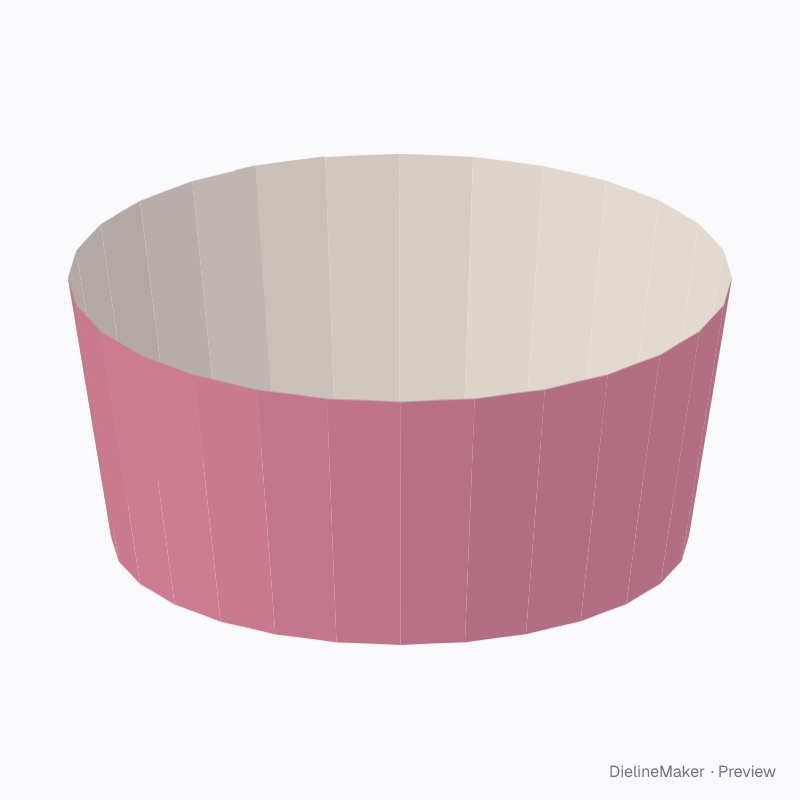

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Dessert cake cup sleeve 8 oz dieline
A 40 mm band for an 8 oz cake, ice-cream or sundae cup. Editable cup size: 96 mm rim, 80 mm base and 52 mm cup height; the sleeve sits 6 mm below the rim. A ready-sized preset of the cup sleeve — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside96 × 80 × 40 mm
Outside96 × 80 × 40 mm
Flat blank295.2 × 94.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Cup rim Ø 96 · Cup base Ø 80 · Sleeve height 40 mm
- Size range
- Cup rim Ø 55–130 · Cup base Ø 35–120 · Sleeve height 25–120 mm
- Manufacturing
- 96 × 80 × 40 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.012 m² · about 32 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 350Kraft 350F-fluteSBS 300GD2 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Left strip ×7 | 10.6 × 40.5 | – |
| Front strip ×6 | 10.6 × 40.5 | – |
| Front strip | 10.6 × 40.5 | π·Ø / 28 × Slant |
| Right strip ×7 | 10.6 × 40.5 | – |
| Back strip ×7 | 10.6 × 40.5 | – |
| Overlap | 10.6 × 40.5 | – |
| Overlap | 3.2 × 40.5 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Cup heightmm
- Sleeve below rimmm
- Closure2 options
- Overlapmm
