DM-FOURLOBE-CARRY-01Tuck end
Small lobed gift carry box dieline
A one-piece carry box: a square base whose four broad lobes curve up into a vaulted shell, the front and back lobes ending in a back-to-back carry handle. A ready-sized preset of the curved four-lobe carry wrap — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 100 × 110 mm
Outside120.9 × 100.9 × 110.9 mm
Flat blank361.8 × 466.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FOURLOBE-CARRY-01
- Inside size
- Length 120 · Width 100 · Height to ridge 110 mm
- Size range
- Length 80–400 · Width 80–400 · Height to ridge 60–400 mm
- Manufacturing
- 120.5 × 100.5 × 110.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.065 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 300SBS 18 pt
- Good for

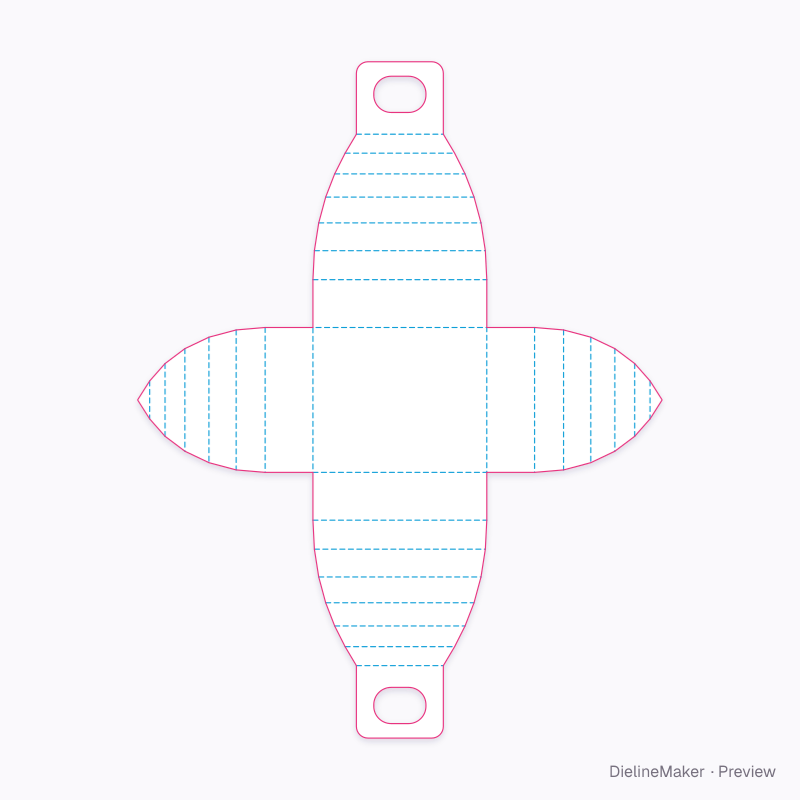

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-FOURLOBE-CARRY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 120 × 100 | L × W |
| Front lobe wall | 120 × 33 | L × – |
| Back lobe wall | 120 × 33 | L × – |
| Right lobe wall | 33 × 100 | – × W |
| Left lobe wall | 33 × 100 | – × W |
| Front lobe curve | 120 × 20 | L × – |
| Back lobe curve | 120 × 20 | L × – |
| Right lobe curve | 20 × 100 | – × W |
| Left lobe curve | 20 × 100 | – × W |
| Front lobe curve | 118 × 19.2 | – |
| Back lobe curve | 118 × 19.2 | – |
| Right lobe curve | 18.8 × 96.6 | – |
| Left lobe curve | 18.8 × 96.6 | – |
| Front lobe curve | 112 × 17.8 | – |
| Back lobe curve | 112 × 17.8 | – |
| Right lobe curve | 16.6 × 86.7 | – |
15 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Straight wall heightmm
- Ridge / handle widthmm
- Handle heightmm
