DM-FRAMED-MUG-CARTON-01Tuck end
Open-front framed mug carton dieline
A tuck-end carton with a framed open front and an inner retaining panel in front of the mug handle. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside125 × 95 × 105 mm
Outside126 × 96 × 106 mm
Flat blank454 × 325 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FRAMED-MUG-CARTON-01
- Inside size
- Length 125 · Depth 95 · Height 105 mm
- Size range
- Length 80–250 · Depth 60–200 · Height 60–250 mm
- Manufacturing
- 125.5 × 95.5 × 105.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Framed mug carton, Retaining insert
- Board area
- 0.101 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350F-fluteE-flute WSBS 18 pt
- Good for

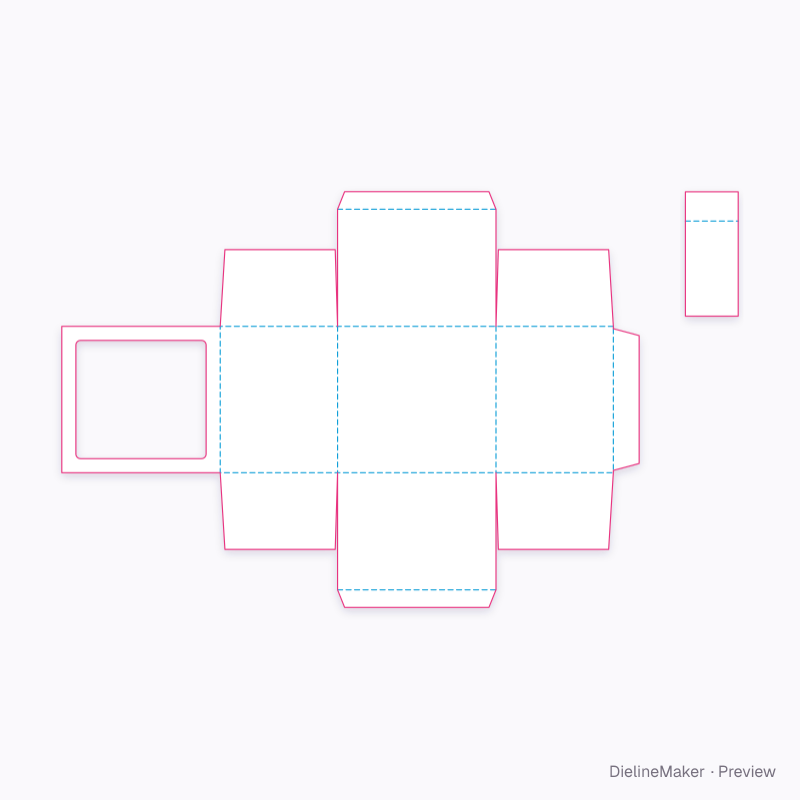

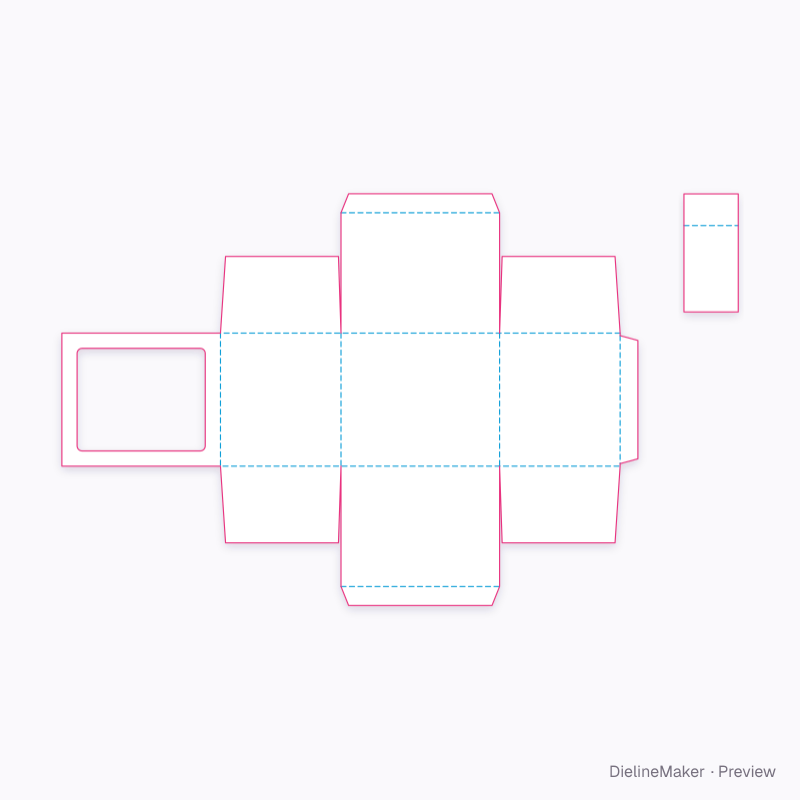

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-FRAMED-MUG-CARTON-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front frameFramed mug carton | 125 × 105 | L × H |
| Right sideFramed mug carton | 95 × 105 | W × H |
| BackFramed mug carton | 125 × 105 | L × H |
| Dust flap ×4Framed mug carton | 95 × 60.5 | W × – |
| Left sideFramed mug carton | 95 × 105 | W × H |
| Top lidFramed mug carton | 125 × 95 | L × W |
| Bottom lidFramed mug carton | 125 × 95 | L × W |
| Glue flapFramed mug carton | 14 × 101 | – |
| Tuck ×2Framed mug carton | 125 × 15 | L × – |
| Retaining panelRetaining insert | 42.8 × 68.3 | – |
| Glued footRetaining insert | 42.8 × 25 | – |
