DM-CURVCART-01Labels
Sloped-top juice carton with cap dieline

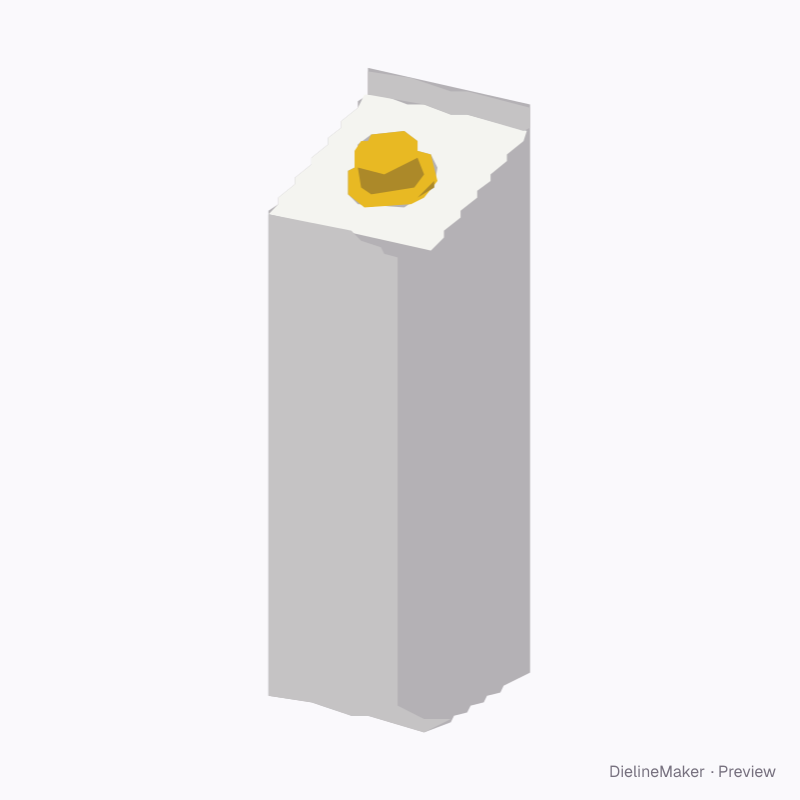

A tall liquid carton with waisted, bowed walls, a flat or gable top and an applied screw cap. Print the four-wall wrap. A ready-sized preset of the curved-wall liquid carton (with cap) — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside70 × 70 × 190 mm
Outside70 × 70 × 190 mm
Flat blank280 × 190 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CURVCART-01
- Inside size
- Width 70 · Depth 70 · Body height 190 mm
- Size range
- Width 40–120 · Depth 30–120 · Body height 80–330 mm
- Manufacturing
- 70 × 70 × 190 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.053 m² · about 10 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Top3 options
- Wall waist%
- Screw fitmenton / off
- Fitment2 options
- Cap5 options
