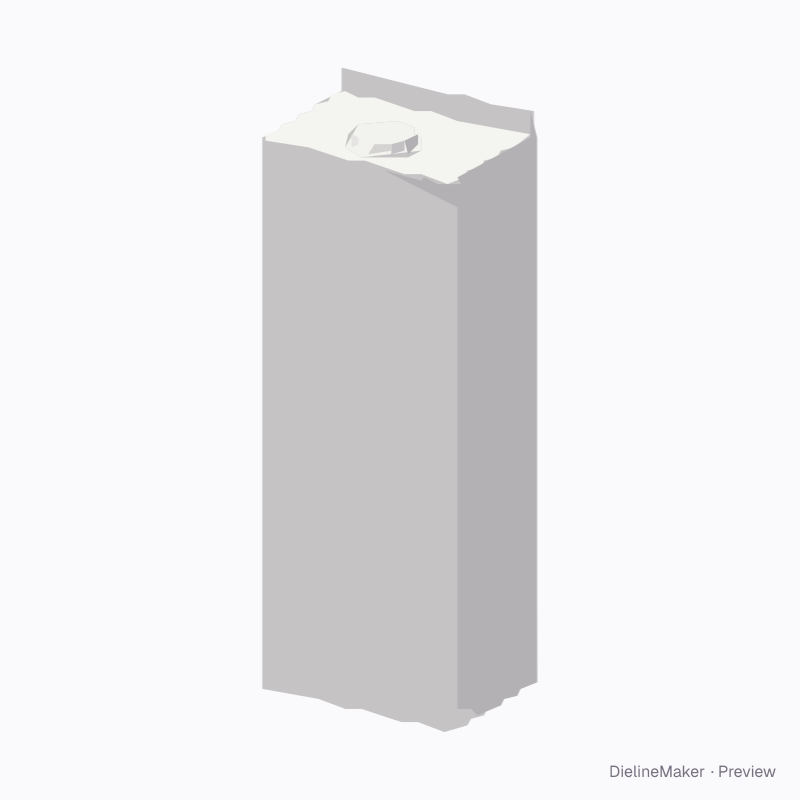

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CURVCART-01Labels
500 ml milk box with flip cap dieline
A tall liquid carton with waisted, bowed walls, a flat or gable top and an applied screw cap. Print the four-wall wrap. A ready-sized preset of the curved-wall liquid carton (with cap) — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside63 × 45 × 165 mm
Outside63 × 45 × 165 mm
Flat blank216 × 165 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CURVCART-01
- Inside size
- Width 63 · Depth 45 · Body height 165 mm
- Size range
- Width 40–120 · Depth 30–120 · Body height 80–330 mm
- Manufacturing
- 63 × 45 × 165 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.036 m² · about 16 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Top3 options
- Wall waist%
- Screw fitmenton / off
- Fitment2 options
- Cap5 options
The curved-wall liquid carton (with cap) family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 500 ml milk box with flip cap yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
