The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CURVED-PLEAT-TRAY-01Trays & lids

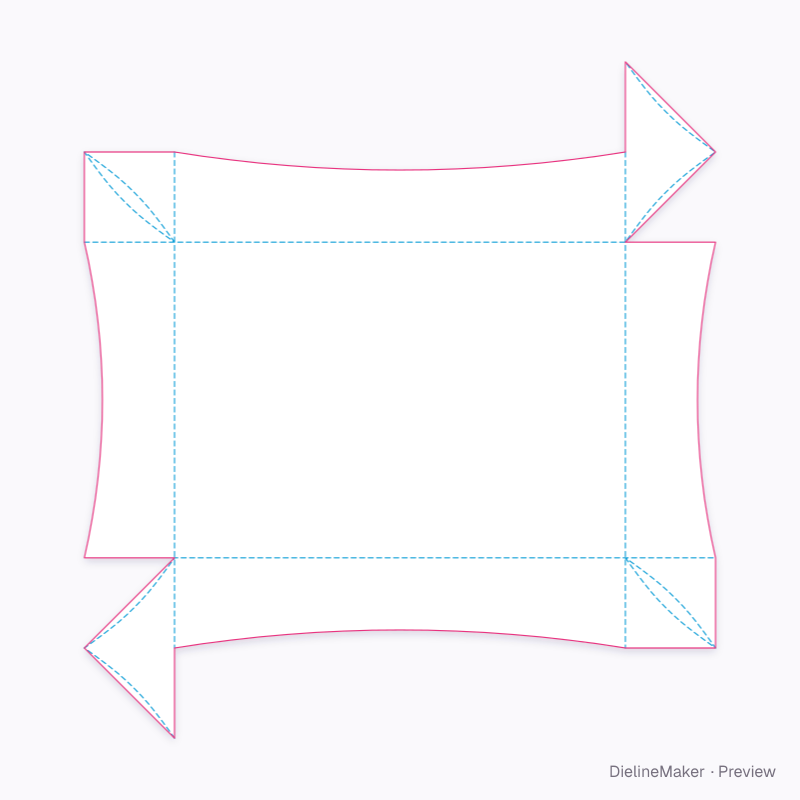

Curved-score food tray dieline
An open one-piece tray whose uncut corners fold in as pleats on paired curved scores, with concave rims between the corners. A ready-sized preset of the tray with curved-score corner returns — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 140 × 40 mm
Outside201 × 141 × 41 mm
Flat blank280 × 300 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CURVED-PLEAT-TRAY-01
- Inside size
- Length 200 · Width 140 · Wall height 40 mm
- Size range
- Length 60–500 · Width 50–400 · Wall height 15–150 mm
- Manufacturing
- 200.5 × 140.5 × 40.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.058 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350FBB 400E-flute WE-flute KSBS 18 pt
- Good for

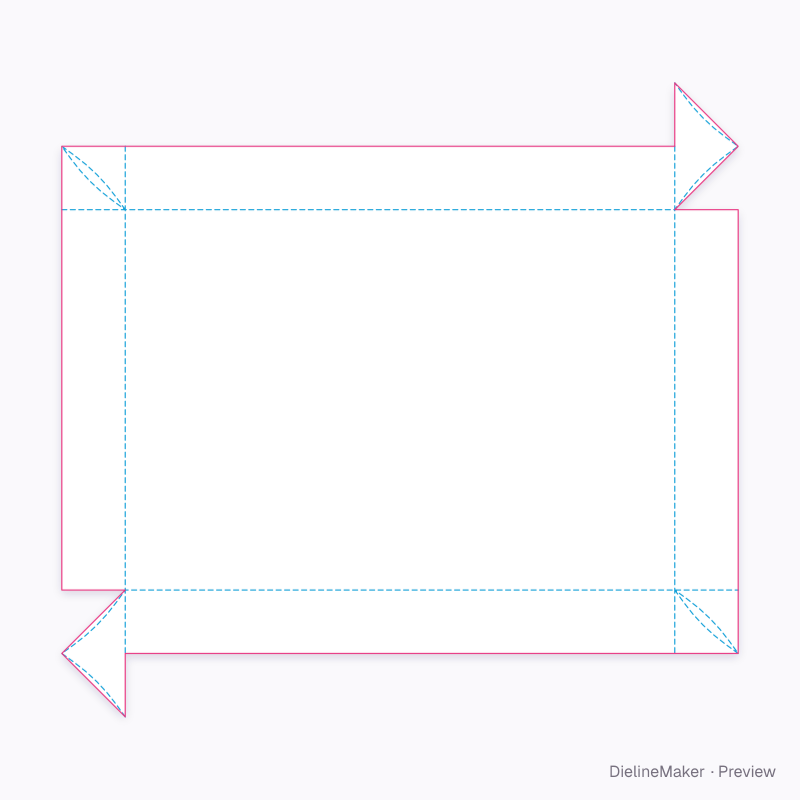

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CURVED-PLEAT-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 200 × 140 | L × W |
| Front wall | 200 × 40 | L × H |
| Back wall | 200 × 40 | L × H |
| Left wall | 40 × 140 | H × W |
| Right wall | 40 × 140 | H × W |
| Corner pleat ×6 | 40 × 40 | H × H |
| Corner pleat ×2 | 56.6 × 28.3 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Lens widthmm
- Rim dipmm
