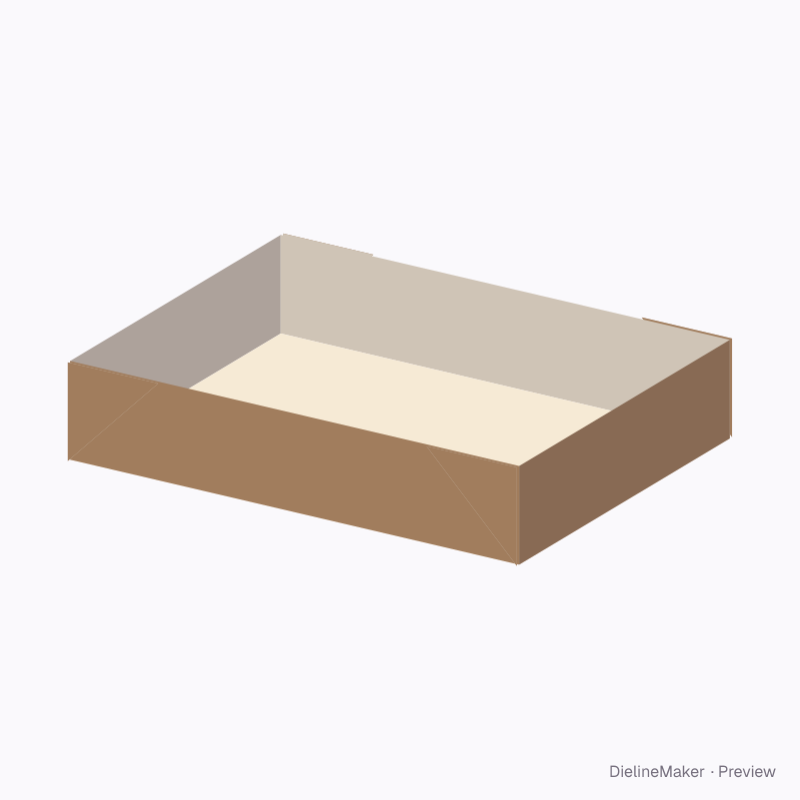

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0449Trays & lids

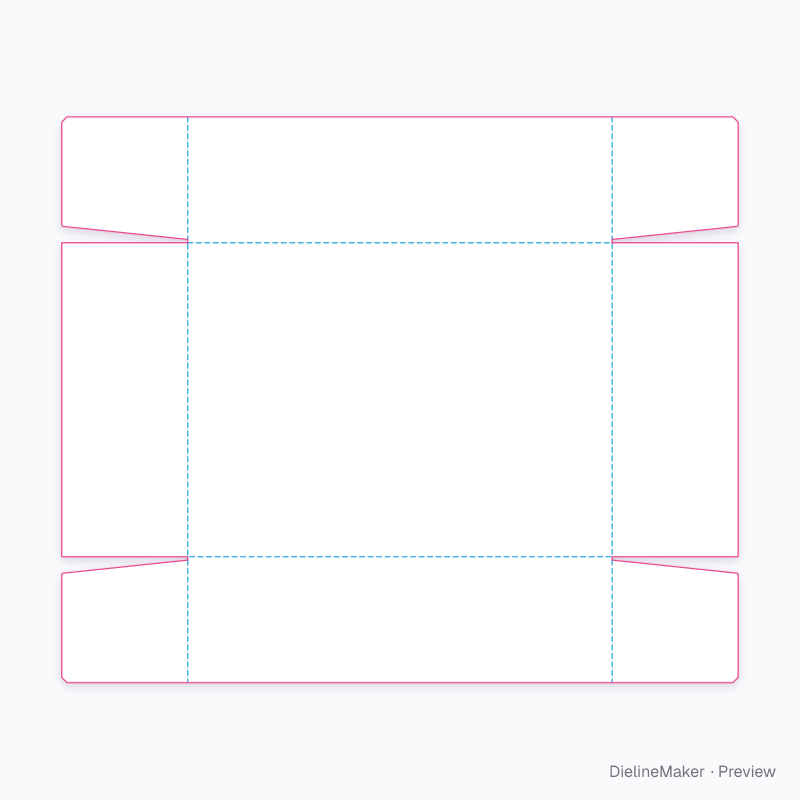

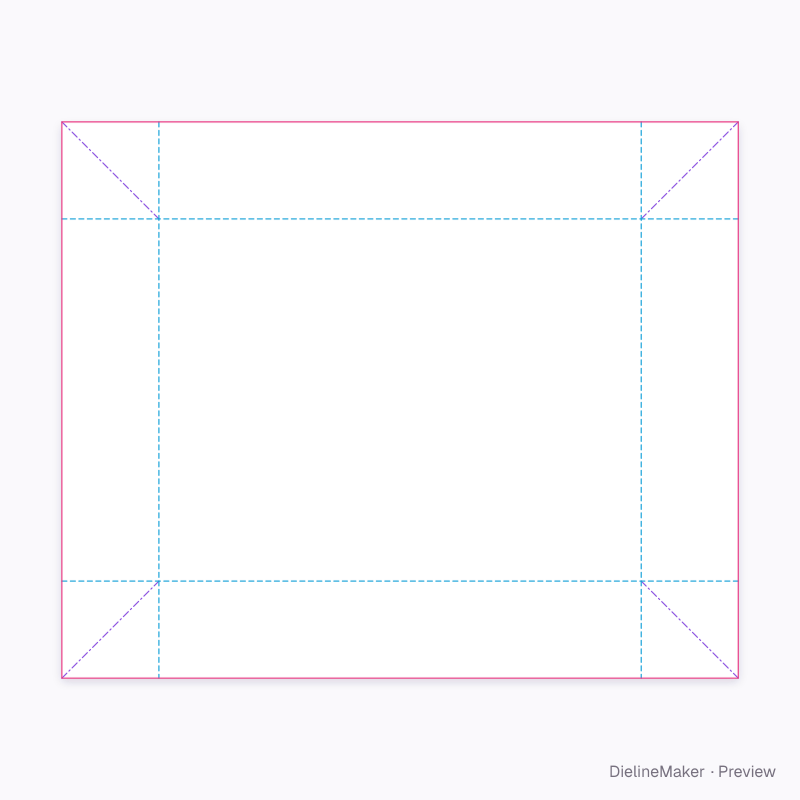

Glued and webbed standard tray dieline
Open trays with external web corners, glued corner flaps, collapse scores, taped joints or locking double walls. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 80 mm
Outside403.2 × 309.6 × 81.6 mm
Flat blank563.2 × 463.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0449
- Inside size
- Length 400 · Width 300 · Height 80 mm
- Size range
- Length 120–800 · Width 80–600 · Height 25–250 mm
- Manufacturing
- 401.6 × 301.6 × 80.8 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.261 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteFBB 400
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0449 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Tray floor | 401.6 × 301.6 | L + T × W + T |
| Tray wall ×2 | 401.6 × 80.8 | L + T × H + T/2 |
| Tray wall ×2 | 80.8 × 301.6 | H + T/2 × W + T |
| Corner web ×4 | 80.8 × 80.8 | H + T/2 × H + T/2 |
| Corner web ×3 | 114.3 × 57.1 | – |
| Corner web | 57.1 × 114.3 | – |
