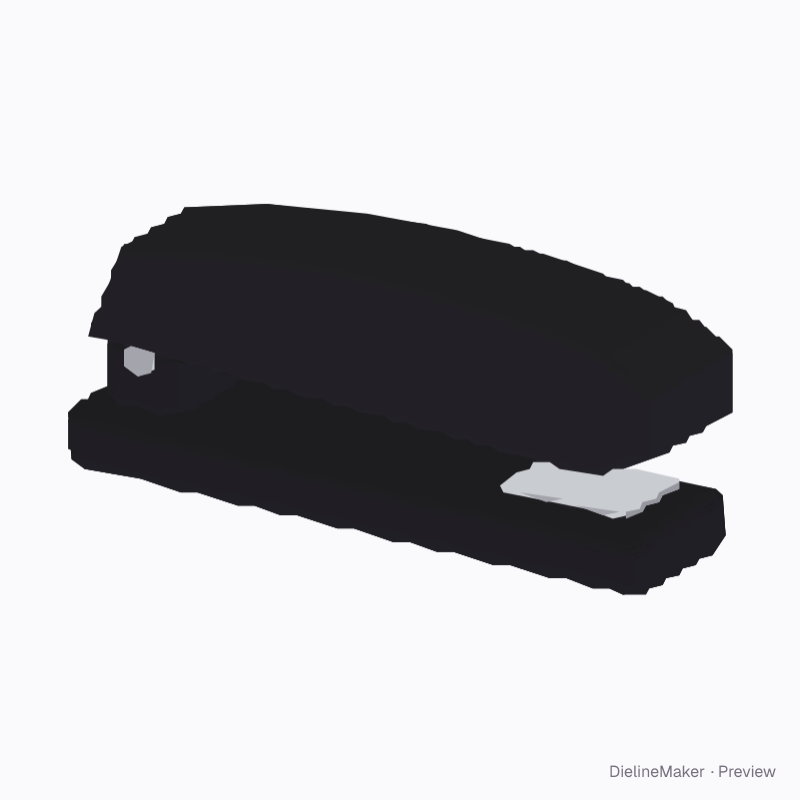

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-STAPLER-01Apparel & merchandise
Half-strip stapler decoration template
A desktop stapler with base, anvil, hinge, staple channel and a crowned arm, closed or opened. Print the arm top and the base side for branded office supplies. A ready-sized preset of the desktop stapler — adjust the object dimensions and decoration area to preview your artwork at size.
Object size120 × 30 × 48 mm
Artwork area108 × 24.6 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-STAPLER-01
- Object size
- Length 120 · Width 30 · Closed height 48 mm
- Size range
- Length 90–220 · Width 22–50 · Closed height 35–90 mm
- Parts
- 2 parts — Arm top, Base side
- Artwork area
- 0.004 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Arm raisedon / off
- Print the base sideon / off
- Body colour4 options
The desktop stapler family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this half-strip stapler yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
