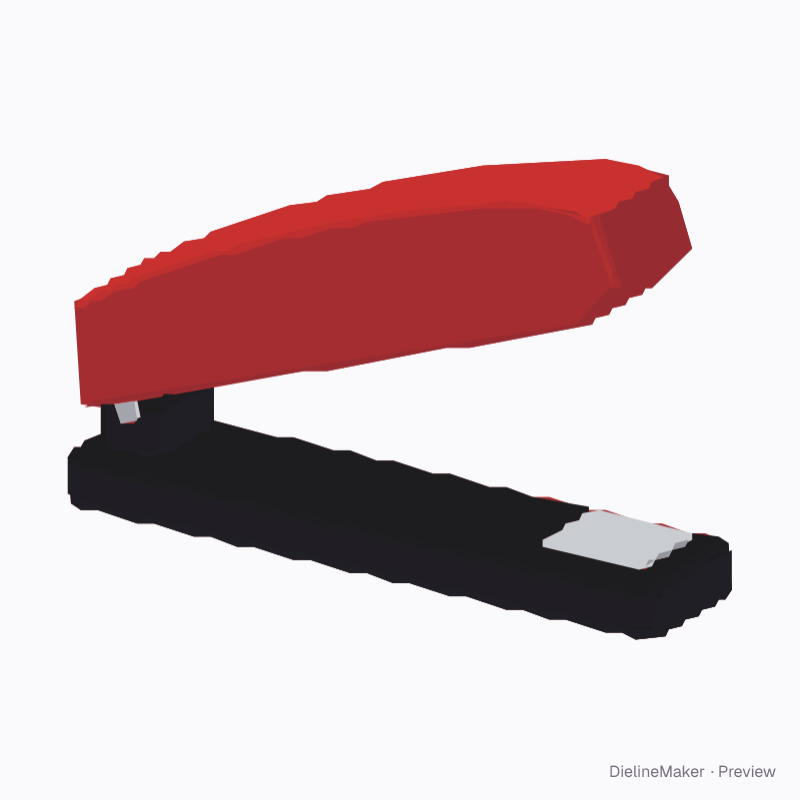

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-STAPLER-01Apparel & merchandise
Stapler, arm raised decoration template
A desktop stapler with base, anvil, hinge, staple channel and a crowned arm, closed or opened. Print the arm top and the base side for branded office supplies. A ready-sized preset of the desktop stapler — adjust the object dimensions and decoration area to preview your artwork at size.
Object size150 × 34 × 55 mm
Artwork area138 × 27.9 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-STAPLER-01
- Object size
- Length 150 · Width 34 · Closed height 55 mm
- Size range
- Length 90–220 · Width 22–50 · Closed height 35–90 mm
- Parts
- 2 parts — Arm top, Base side
- Artwork area
- 0.006 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Arm raisedon / off
- Print the base sideon / off
- Body colour4 options
The desktop stapler family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this stapler, arm raised yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
