The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DIAGONAL-SUPPORT-01Tuck end
Carton with diagonal aperture support dieline
A tuck carton whose seam extends into a diagonal internal panel with a round aperture that steadies a bottle neck. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside80 × 80 × 220 mm
Outside81 × 81 × 221 mm
Flat blank445.7 × 410 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DIAGONAL-SUPPORT-01
- Inside size
- Length 80 · Depth 80 · Height 220 mm
- Size range
- Length 50–300 · Depth 50–300 · Height 80–450 mm
- Manufacturing
- 80.5 × 80.5 × 220.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.106 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 18 pt
- Good for

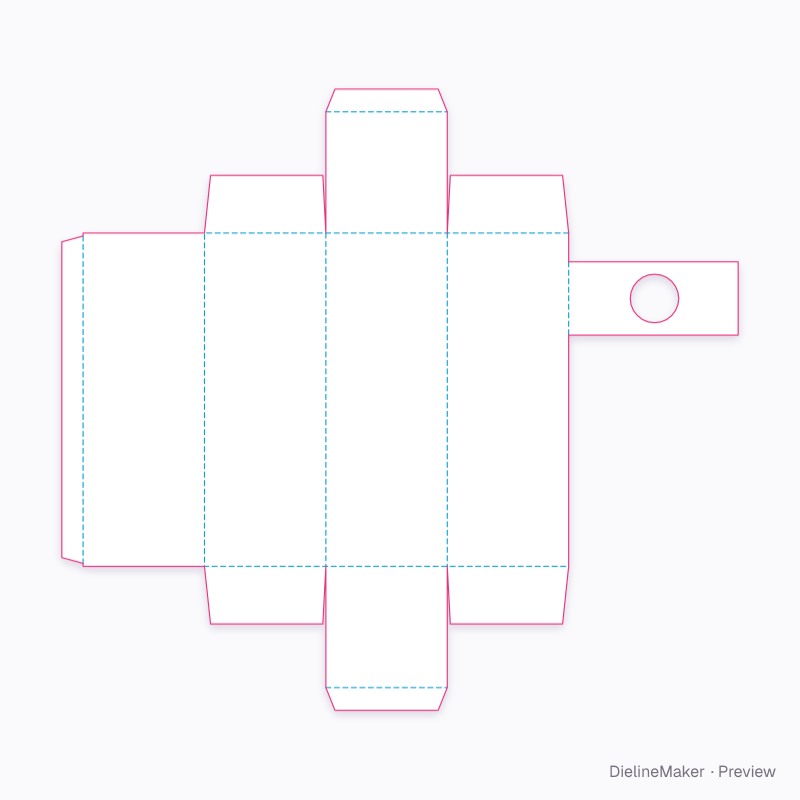

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DIAGONAL-SUPPORT-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front frame | 80 × 220 | – × H |
| Right side | 80 × 220 | – × H |
| Glue flap | 14 × 216 | – |
| Back | 80 × 220 | – × H |
| Dust flap ×4 | 80 × 38 | – |
| Left side | 80 × 220 | – × H |
| Top lid | 80 × 80 | – |
| Bottom lid | 80 × 80 | – |
| Diagonal aperture support | 111.7 × 48.4 | – |
| Tuck ×2 | 80 × 15 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Front window framemm
- Support panel heightmm
- Aperture diametermm
- Tuck depthmm

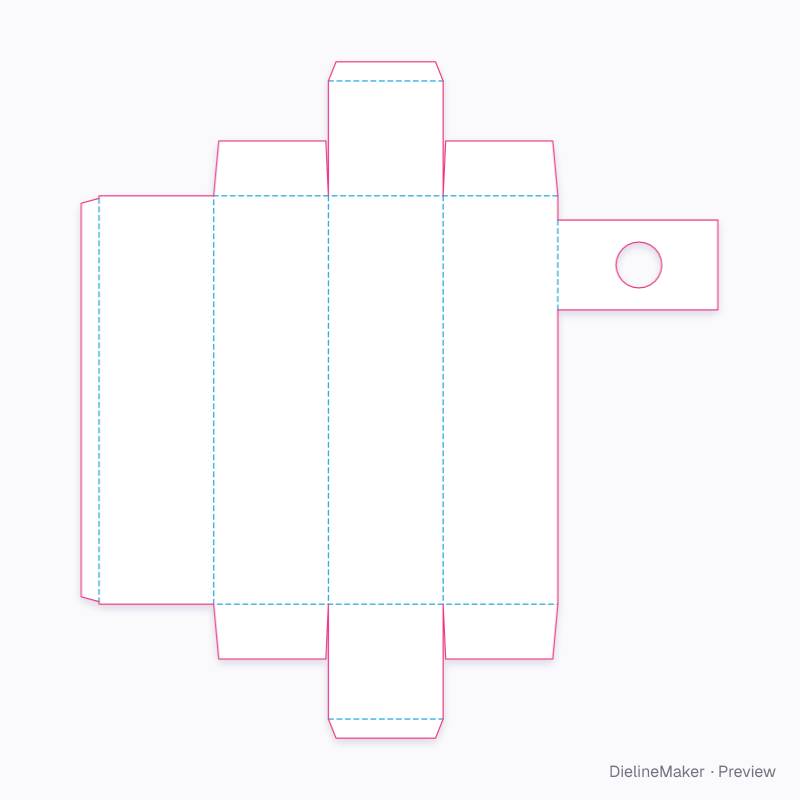

Ready-sized carton with diagonal aperture support presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this carton with diagonal aperture support yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
