The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F60.41.00.00Tuck end
Carton with integral separator dieline
A tuck-end carton with its own separator folded in from the blank: saw teeth that hold one row of products across the depth, or two rows formed by retained partitions or a continuous zigzag. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 45 × 100 mm
Outside151 × 46 × 101 mm
Flat blank404 × 220.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F60.41.00.00
- Inside size
- Length (A) 150 · Depth (B) 45 · Height 100 mm
- Size range
- Length (A) 50–400 · Depth (B) 15–200 · Height 30–300 mm
- Manufacturing
- 150.5 × 45.5 × 100.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.069 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F60.41.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 150.5 × 100.5 | L + T × H + T |
| Left end | 45.5 × 100.5 | W + T × H + T |
| Back | 150.5 × 100.5 | L + T × H + T |
| Right end | 45.5 × 100.5 | W + T × H + T |
| Separator base | 18.1 × 43.5 | – |
| Separator tooth face ×4 | 8.8 × 42 | – |
| Separator tooth slope ×4 | 23.8 × 42 | – |
| Glue flap | 12 × 99.5 | – × H − T |
| Top closure | 150.5 × 45 | L + T × W |
| Tuck ×2 | 149.5 × 15 | L − T × – |
| Top dust flap ×2 | 45.5 × 30.3 | W + T × – |
| Bottom closure | 150.5 × 45 | L + T × W |
| Bottom dust flap ×2 | 45.5 × 30.3 | W + T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Separator2 options
- Separator countcount
- Tuck depthmm
- Slit lockon / off
Ready-sized carton with integral separator presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset

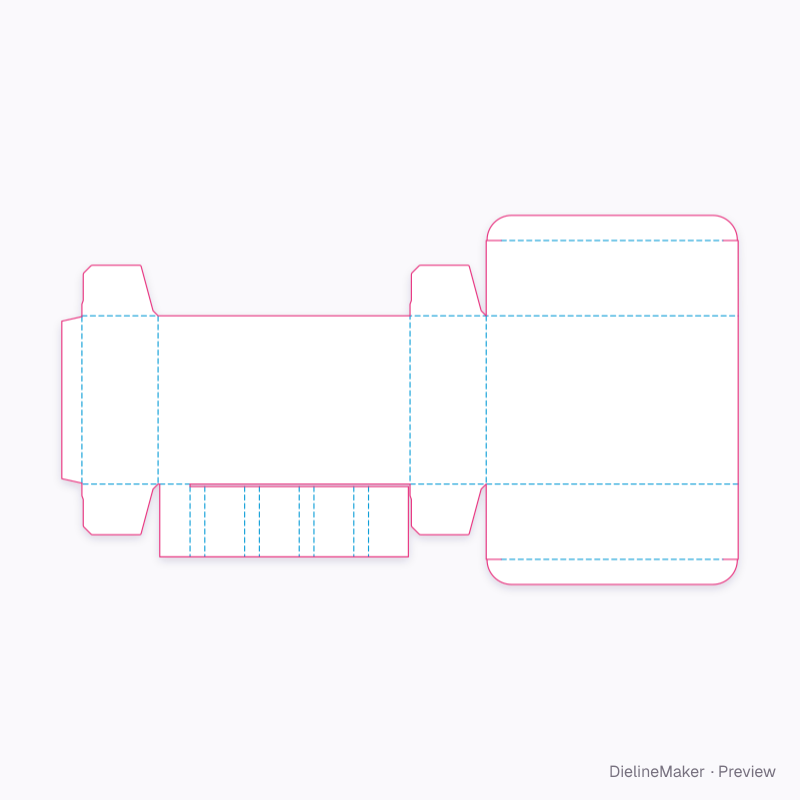

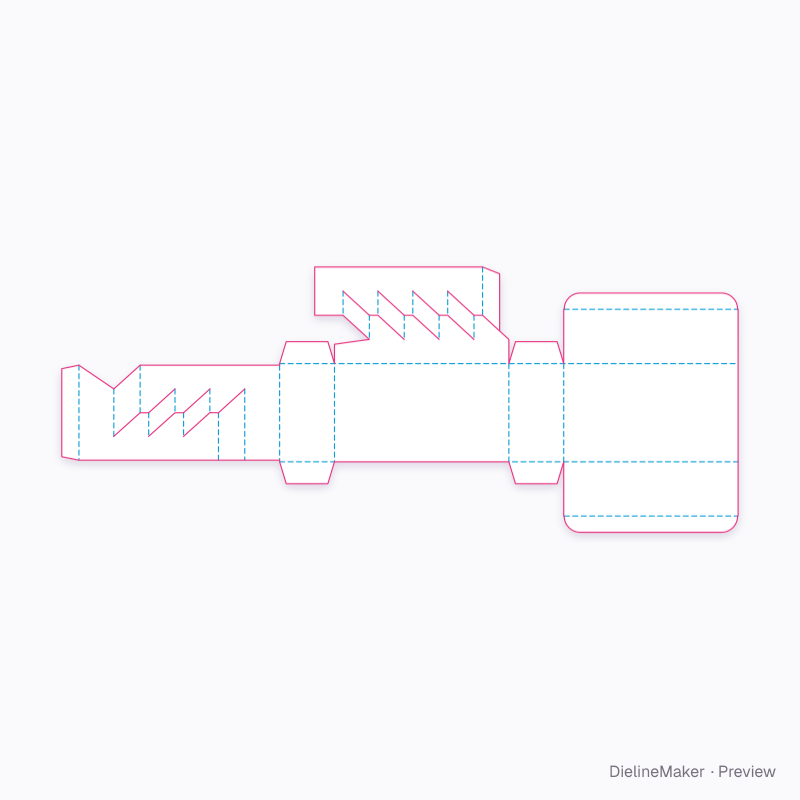

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this carton with integral separator yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
