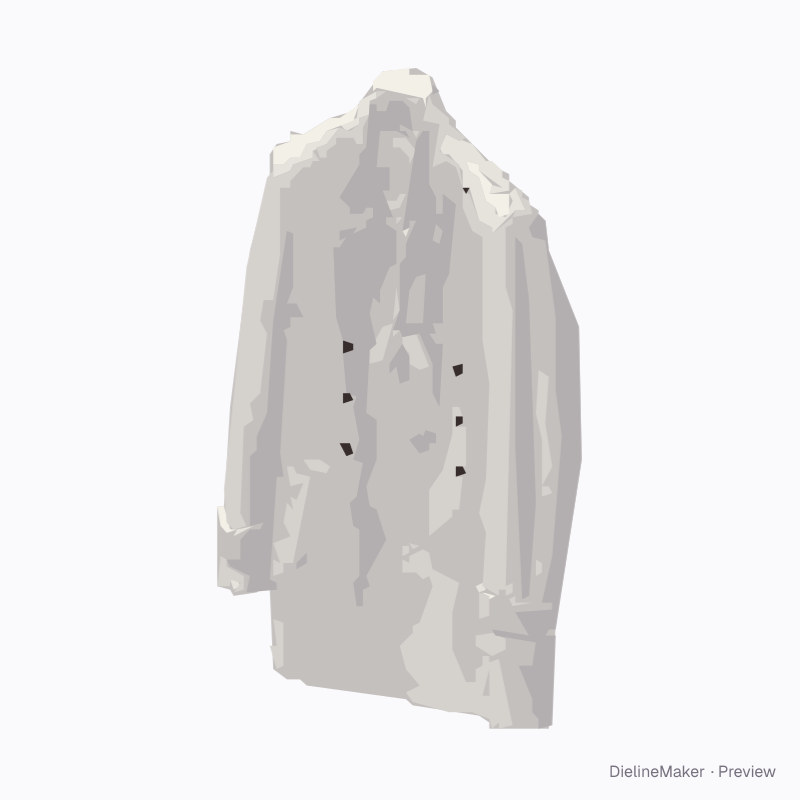

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementApparel & merchandise
Double-breasted belted coat decoration template
An original double-breasted coat: deeply overlapping fronts closed by two parallel rows of sewn buttons, a pointed open lapel collar, buttoned shoulder tabs, a tied waist belt with loops and two broad flapped lower pockets. Independent chest and rear decoration references export at size. Supplier sewing/grading patterns, textile performance, embroidery programs, production all-over panels and human-worn rigs are separate. A parametric template — adjust the object dimensions and decoration area to preview your artwork at size.
Object size590 × 1000 mm
Artwork area318.6 × 238 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Torso width 590 · Total garment height 1000 mm
- Size range
- Torso width 413–826 · Total garment height 800–1350 mm
- Parts
- 3 parts — Left chest decoration, Right chest decoration, Rear decoration
- Artwork area
- 0.107 m²
- Good for

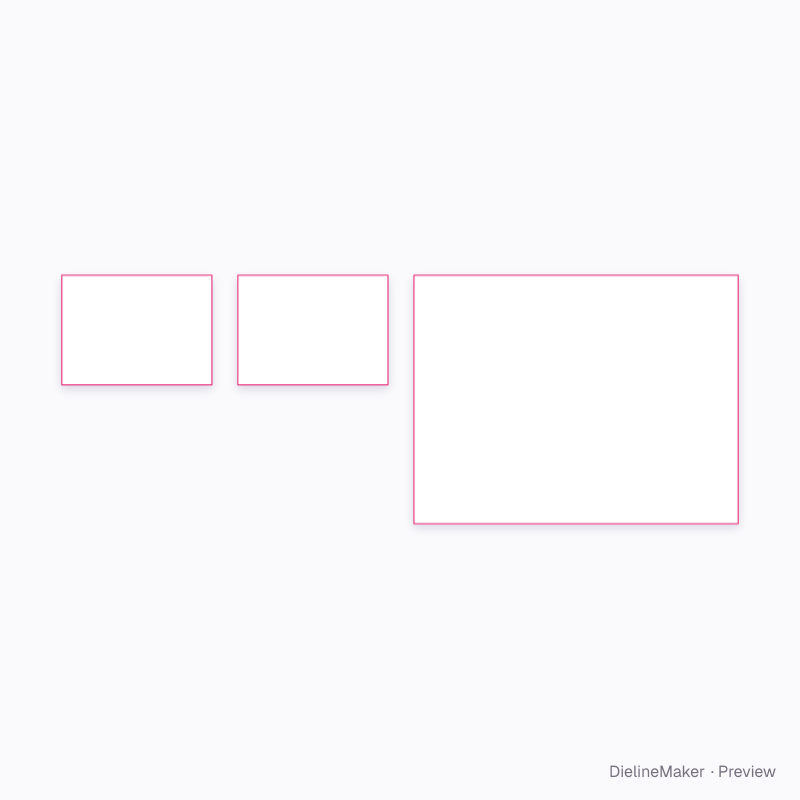

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 2 options; the template and 3D preview follow each change.
- Object colour17 options
- Lower body extensionmm
Ready-sized double-breasted belted coat presets
The same model with sizes and artwork options ready to customize.
- Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this double-breasted belted coat yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
