Preset

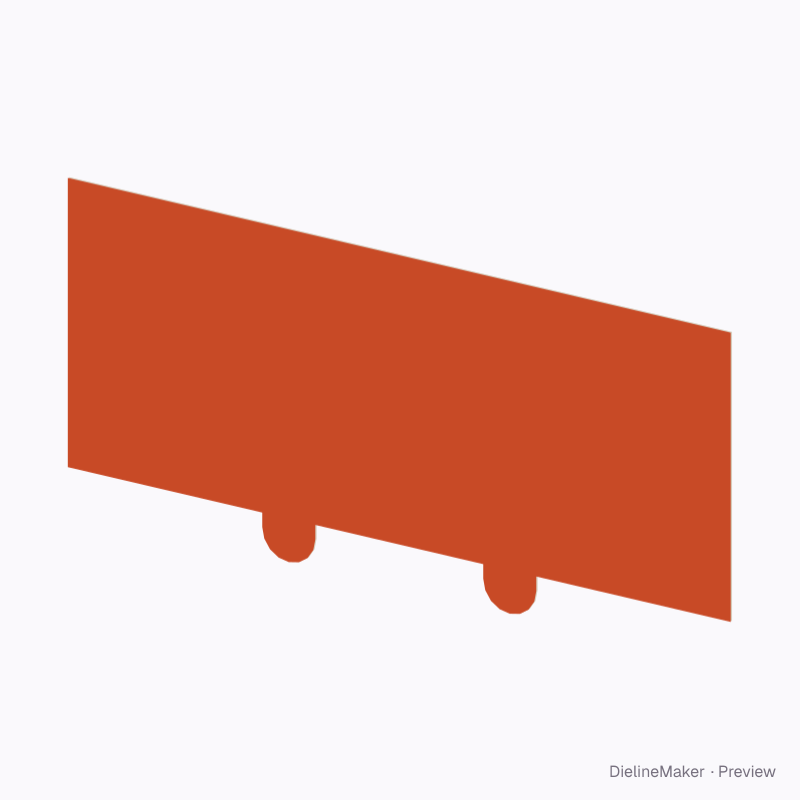

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-MOUNTING-PANEL-01Display
Doubled tabbed mounting panel dieline
A doubled graphic panel with rounded tabs below that plug into display slots. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside500 × 200 mm
Outside503.2 × 203.2 mm
Flat blank500 × 460 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-MOUNTING-PANEL-01
- Inside size
- Width 500 · Height 200 mm
- Size range
- Width 80–1200 · Height 50–800 mm
- Manufacturing
- 501.6 × 201.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.204 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WSBS 350FBB 400B-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-MOUNTING-PANEL-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front ply | 500 × 230 | L × – |
| Back ply | 500 × 230 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Mounting tabscount
- Tab widthmm
- Tab depthmm
Ready-sized doubled tabbed mounting panel presets
The same structure with sizes, boards and options set for a use.
- Preset

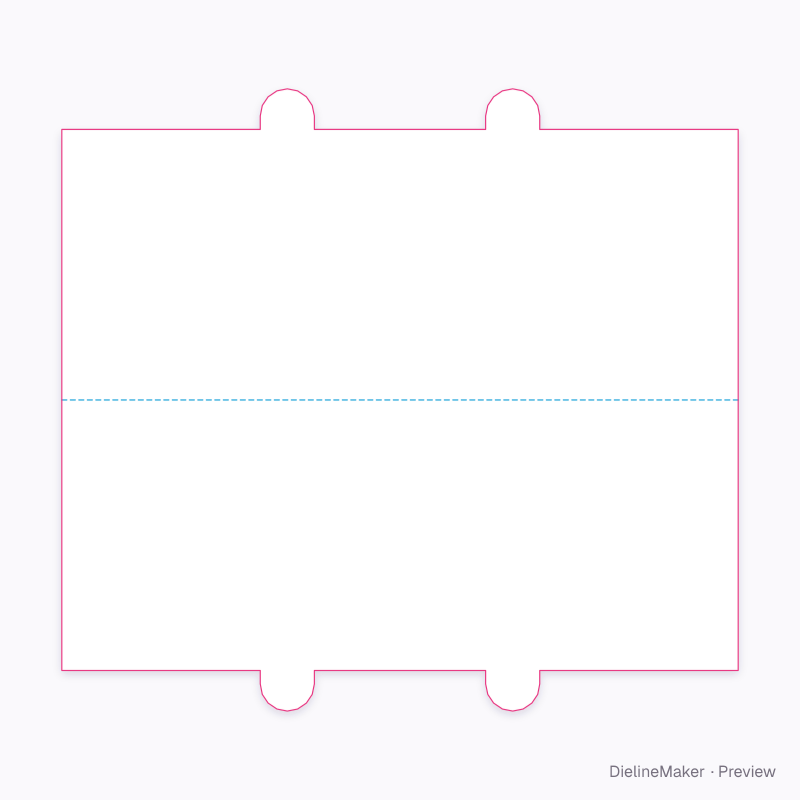

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this doubled tabbed mounting panel yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
