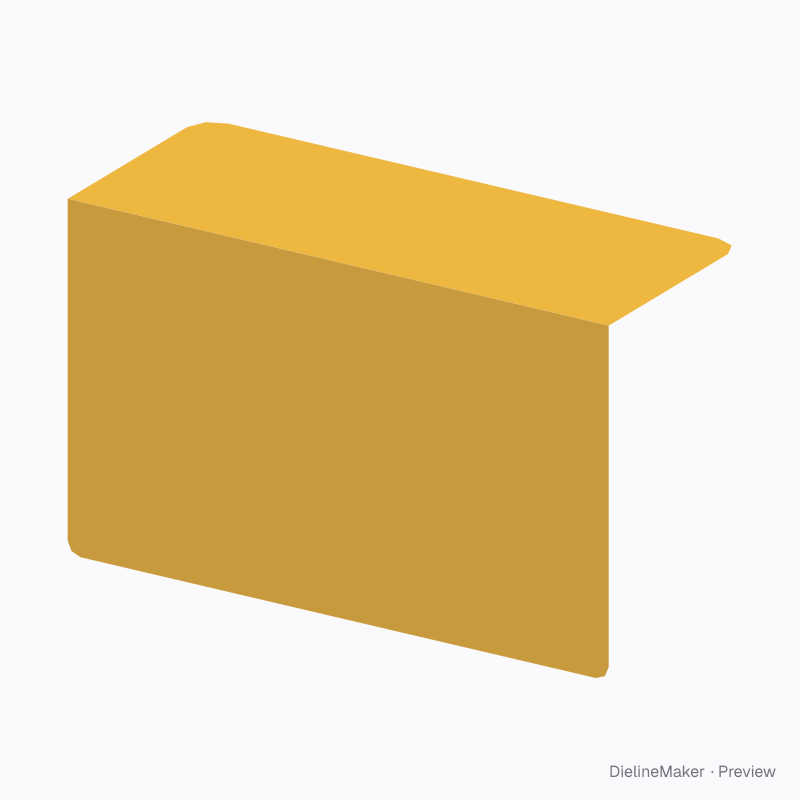

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureDisplay
Shelf talker dieline
A shelf-edge sign: a fold-over flap that tapes to the shelf, a tab that slides into the price channel, or a flat strip for the channel itself. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside127 × 76.2 mm
Outside127 × 76.2 mm
Flat blank127 × 127 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 127 · Message height 76.2 mm
- Size range
- Width 50–1250 · Message height 25–300 mm
- Manufacturing
- 127 × 76.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.016 m² · about 35 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400SBS 300Kraft 350Black 350PET 0.3SBS 18 pt
- Good for

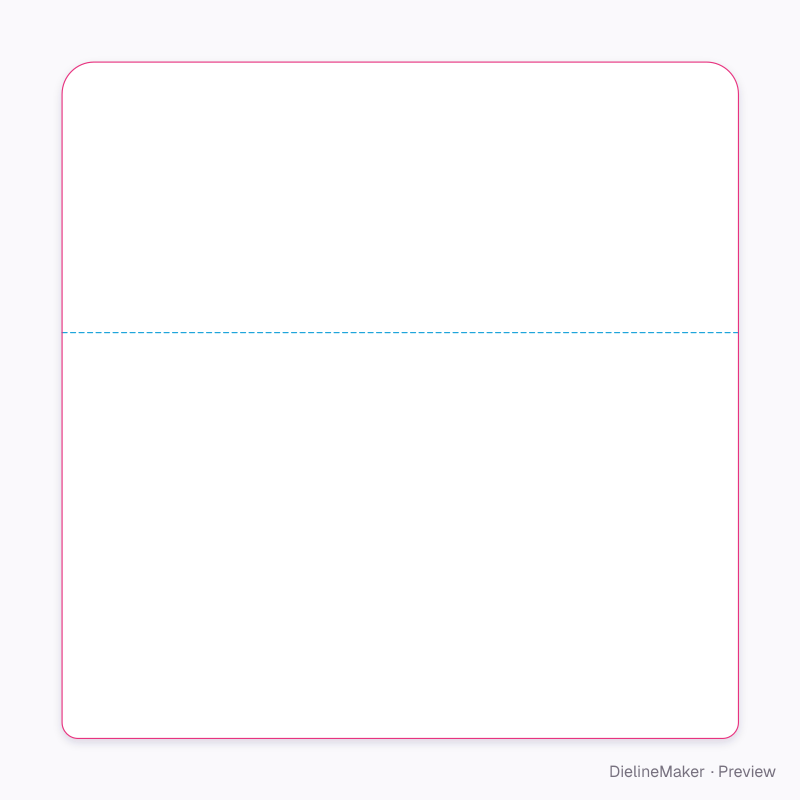

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Message | 127 × 76.2 | W × H |
| Mounting flap | 127 × 50.8 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Mounting3 options
- Flap depthmm
- Ear heightmm
- Corner radiusmm

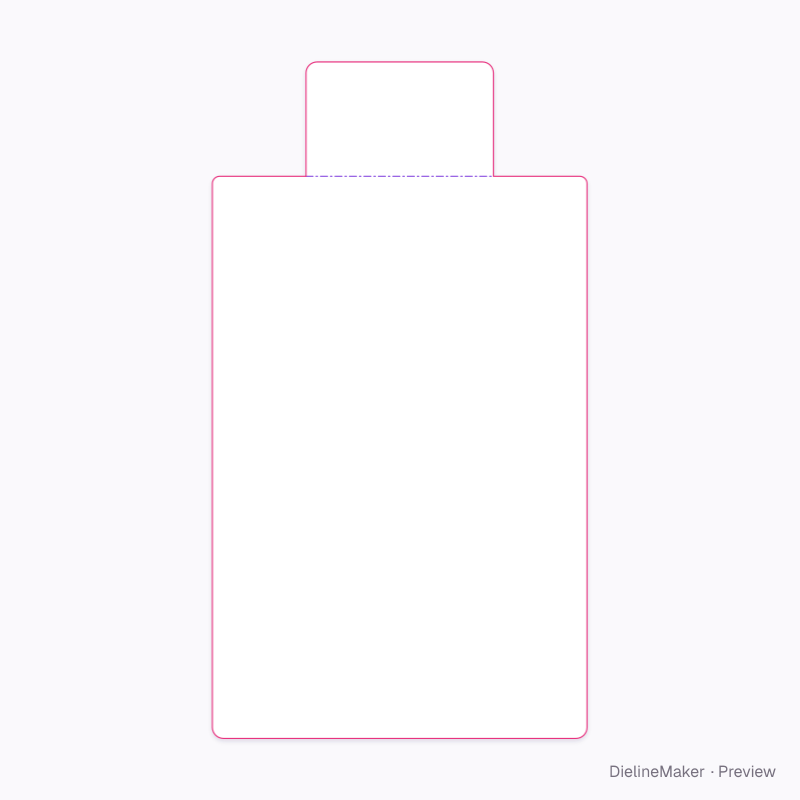

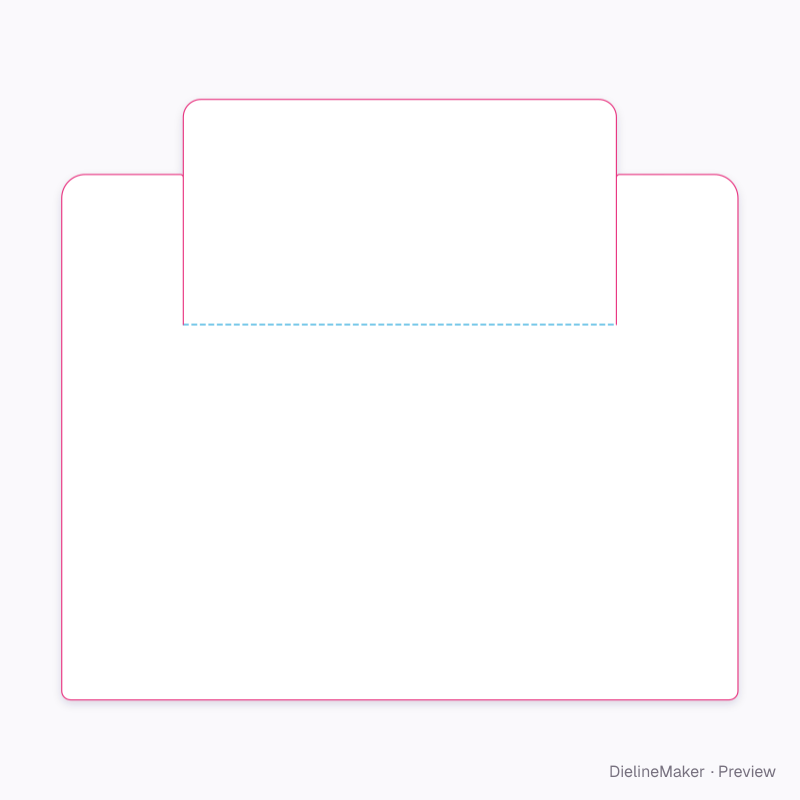

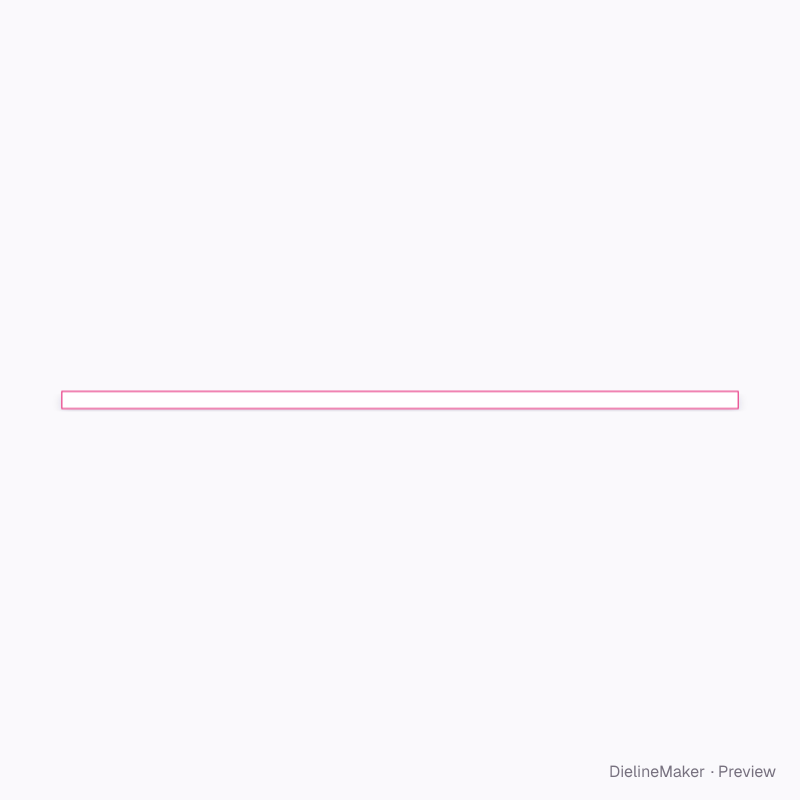

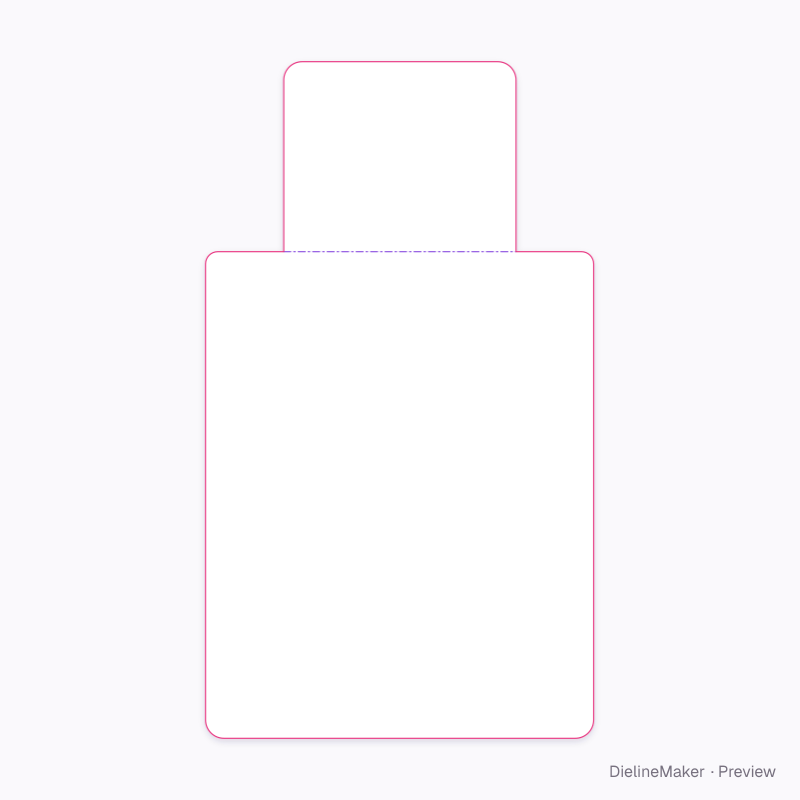

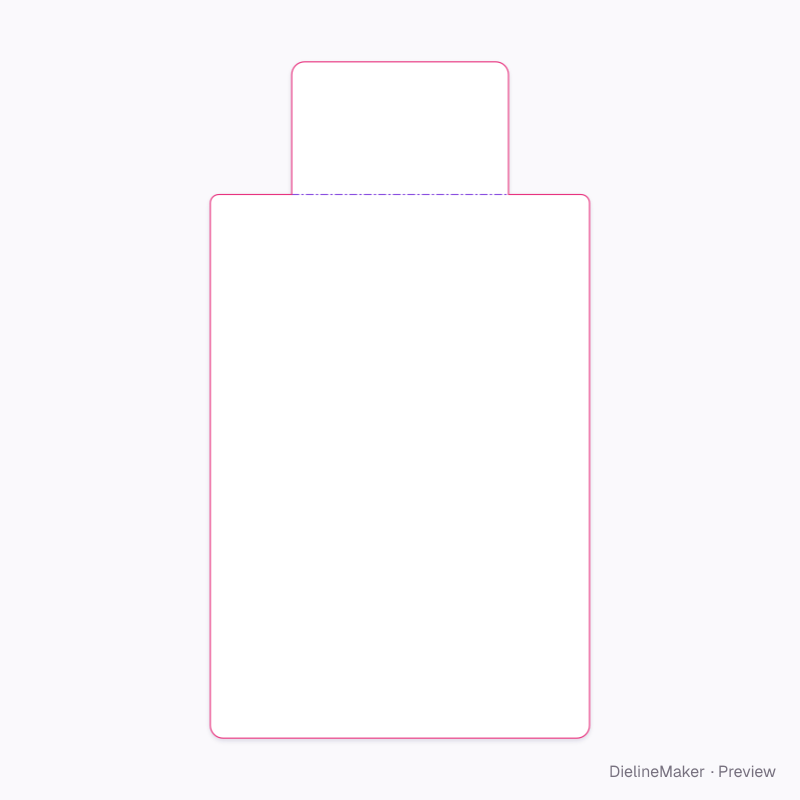

Ready-sized shelf talker presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset
Preset
Preset
Preset

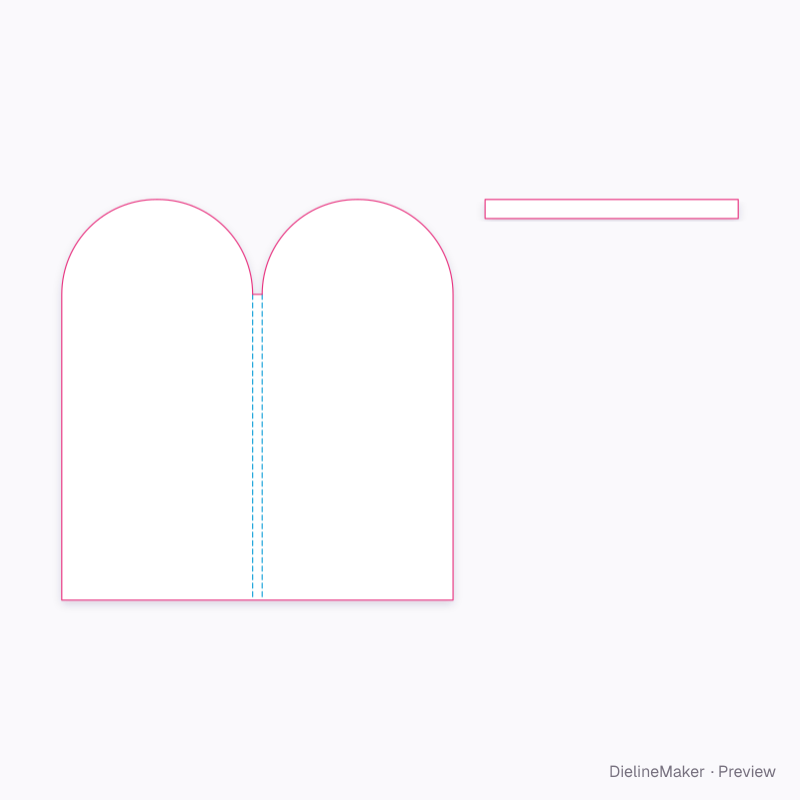

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this shelf talker yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
