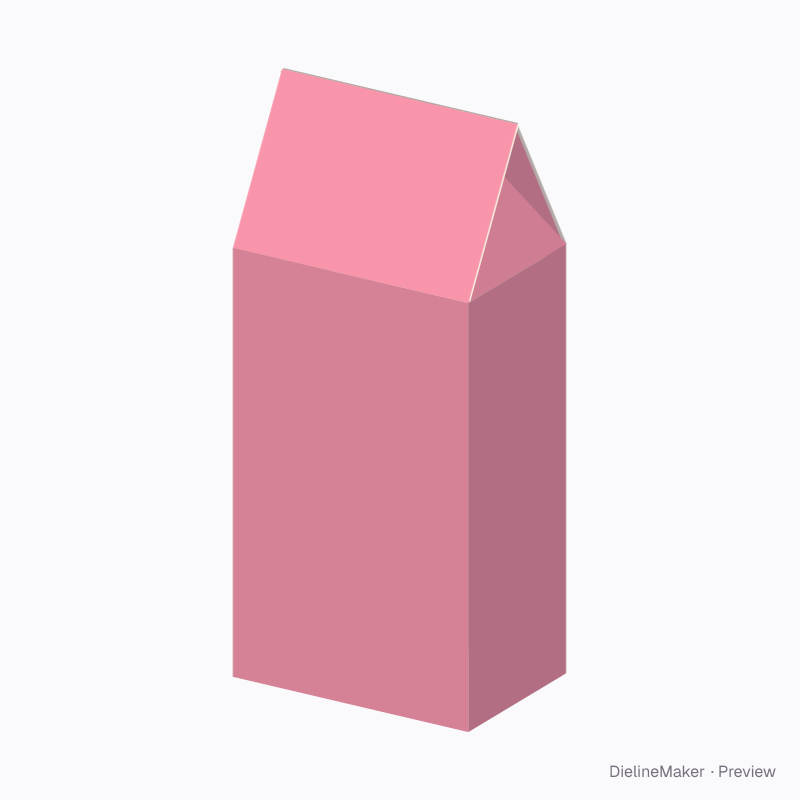

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA A01.75.00.03Food
Locking gable, open base dieline
A continuous gable roof with a sealed fin or a single rounded locking flap and receiving slit. A ready-sized preset of the gable-end folding carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 60 × 150 mm
Outside90.5 × 60.9 × 203.1 mm
Flat blank314 × 271.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A01.75.00.03
- Inside size
- Length 90 · Width 60 · Body height 150 mm
- Size range
- Length 45–300 · Width 25–200 · Body height 40–500 mm
- Manufacturing
- 90.5 × 60.5 × 150.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.070 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Food SBS PEFood kraft PEFBB 400Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A01.75.00.03 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 90.5 × 150.5 | L + T × H + T |
| Left side | 60.5 × 150.5 | W + T × H + T |
| Back | 90.5 × 150.5 | L + T × H + T |
| Right side | 60 × 150.5 | W × H + T |
| Glue flap | 12 × 150.5 | – × H + T |
| Back roof | 90.5 × 60.5 | L + T × √(rise² + a²) |
| Front roof | 90.5 × 60.5 | L + T × √(rise² + a²) |
| Gable end | 60.5 × 60.5 | W + T × W + T |
| Gable fold-in ×4 | 27.1 × 67.6 | – |
| Gable end | 60 × 60.5 | W × W + T |
| Seam end triangle | 12 × 24 | – |
| Seam diagonal return | 27.1 × 26.8 | – |
| Rounded roof locking flap | 90.5 × 60.3 | L + T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Construction5 options
- Gable heightmm
- Locking flap depthmm
- Fin heightmm
