ECMA F30.22.00.00Shapes
Hexagonal tear-strip carton dieline
Long hexagonal carton with glued webbed ends and a tamper-evident tear strip, for chocolate bars or pasta. A ready-sized preset of the hexagonal tamper-evident carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside220 × 52 × 45 mm
Outside220 × 52.4 × 45.3 mm
Flat blank542 × 116.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F30.22.00.00
- Inside size
- Length (A) 220 · Depth across corners 52 · Height across flats 45 mm
- Size range
- Length (A) 60–500 · Depth across corners 20–240 · Height across flats 20–200 mm
- Manufacturing
- 220 × 52 × 45 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.049 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350SBS 300SBS 18 pt
- Good for

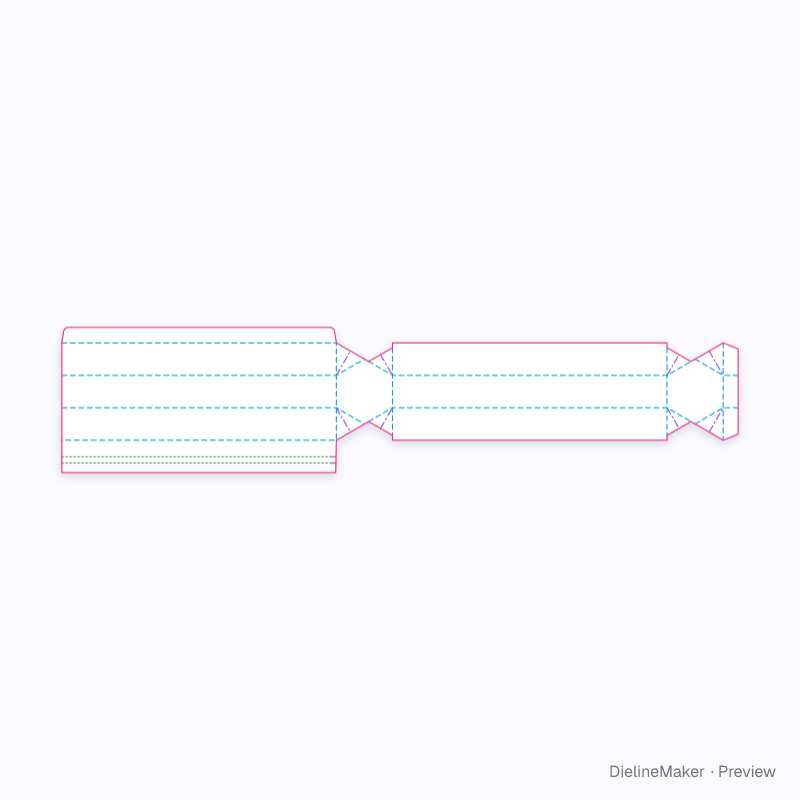

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Perforation
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F30.22.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Wall ×6 | 220 × 26 | L × – |
| End ×2 | 45 × 26 | H × – |
| End web ×4 | 22.1 × 9.6 | – |
| End web ×4 | 11 × 19.1 | – |
| End web ×4 | 26 × 11.3 | – |
| End web ×4 | 13 × 22.5 | – |
| Glue strip ×3 | 12 × 26 | – |
| Glue flap | 220 × 12.5 | L × – |
| Tear-strip panel | 220 × 26 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Tear strip widthmm
