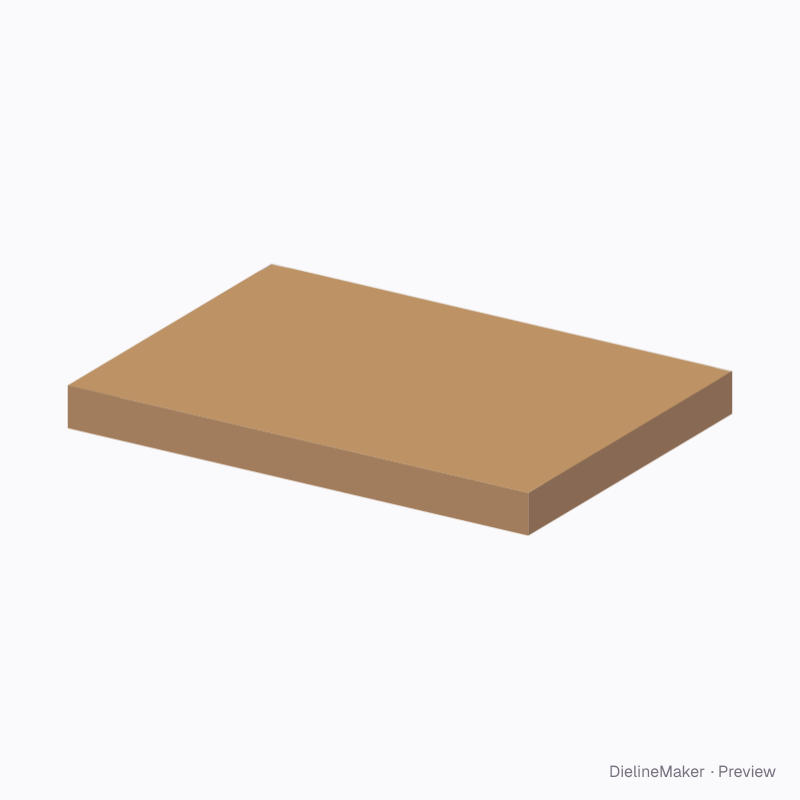

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA E40.82.00.00Trays & lids
Folder with locking panels dieline
A shallow folder for books or bars: side and end walls, locking panels folded in over the base, a front flap with a slot and a lid whose tongue locks into it. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside240 × 170 × 20 mm
Outside241 × 171 × 21 mm
Flat blank363.5 × 458.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA E40.82.00.00
- Inside size
- Length (A) 240 · Width (B) 170 · Depth (H) 20 mm
- Size range
- Length (A) 60–450 · Width (B) 40–350 · Depth (H) 5–80 mm
- Manufacturing
- 240.5 × 170.5 × 20.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.124 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350F-fluteSBS 18 pt
- Good for

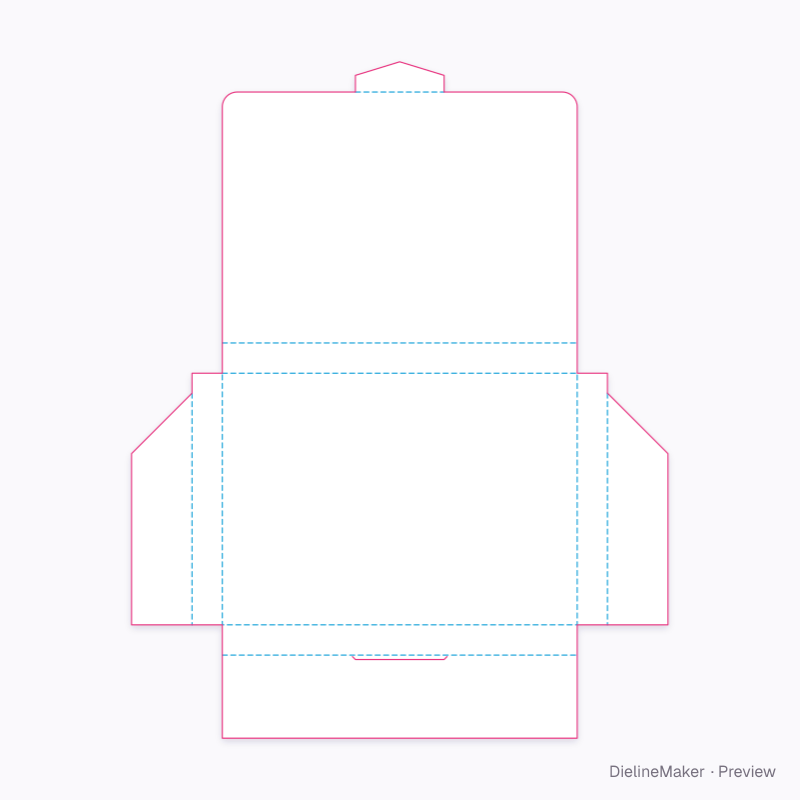

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA E40.82.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 240.5 × 170.5 | L + T × W + T |
| Side wall ×2 | 240.5 × 20.5 | L + T × H + T |
| Front flap (lock slot) | 240.5 × 56.3 | L + T × – |
| Lid | 240.5 × 170 | L + T × W |
| Locking tongue | 60.1 × 20.5 | – |
| End wall ×2 | 20.5 × 170.5 | H + T × W + T |
| Locking panel ×2 | 41 × 157 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Front flapmm
- Locking panel depthmm
- Tongue widthmm

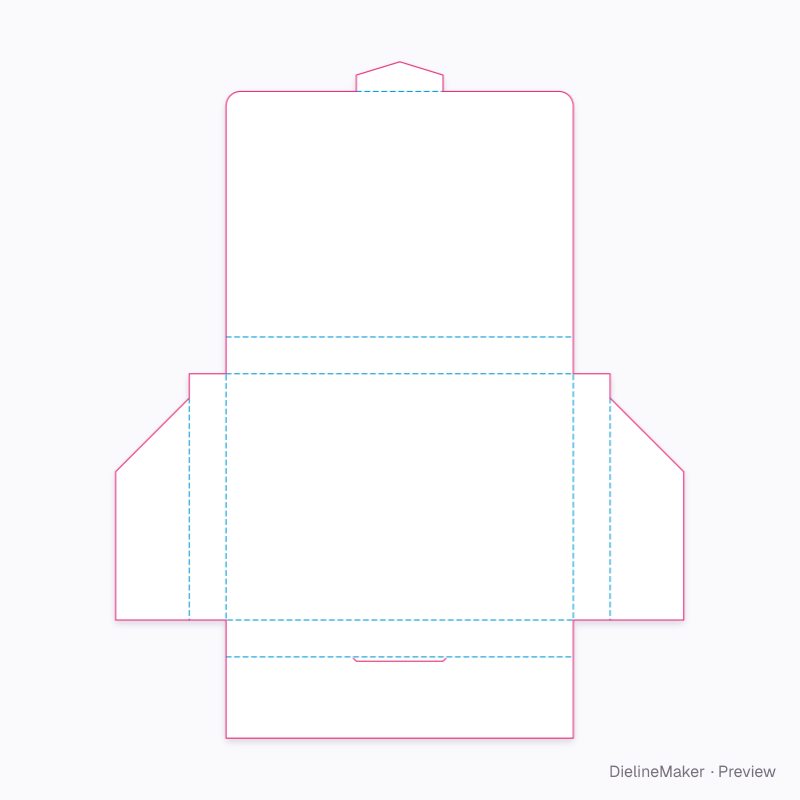

Ready-sized folder with locking panels presets
The same structure with sizes, boards and options set for a use.
- Preset
