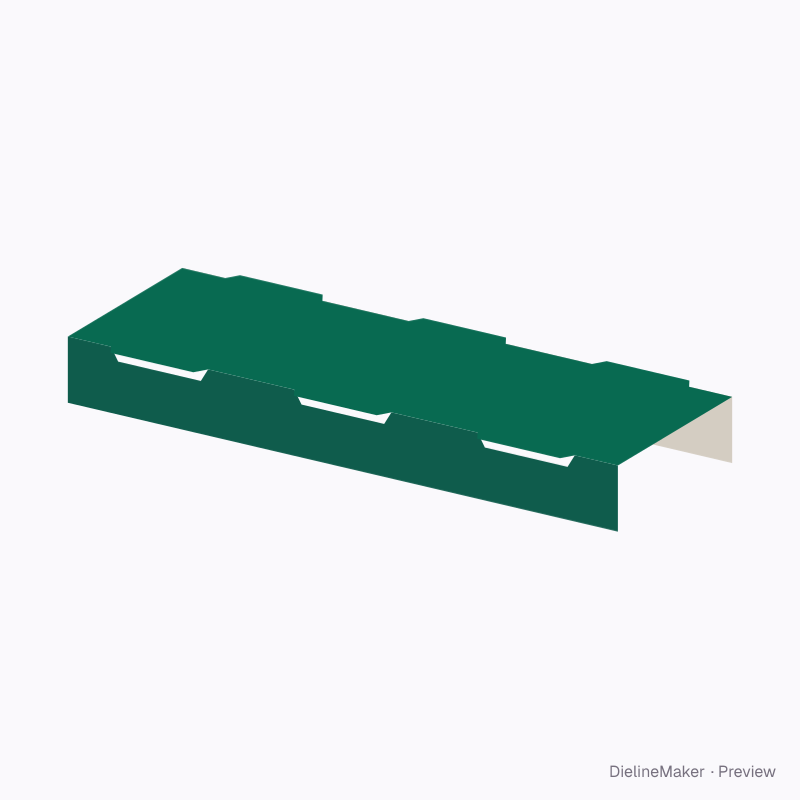

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA E10.11.00.00Carriers
Can clip, single row of 3 dieline
Top clip for three cans in a row; a locking tab into each skirt per can. A ready-sized preset of the can / cup clip with locking device — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 66 × 22 mm
Outside201 × 67 × 23 mm
Flat blank200 × 110.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA E10.11.00.00
- Inside size
- Row length (A) 200 · Depth (B) 66 · Skirt height 22 mm
- Size range
- Row length (A) 40–600 · Depth (B) 30–200 · Skirt height 6–120 mm
- Manufacturing
- 200.5 × 66.5 × 22.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.022 m² · about 24 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350F-fluteSBS 18 pt
- Good for

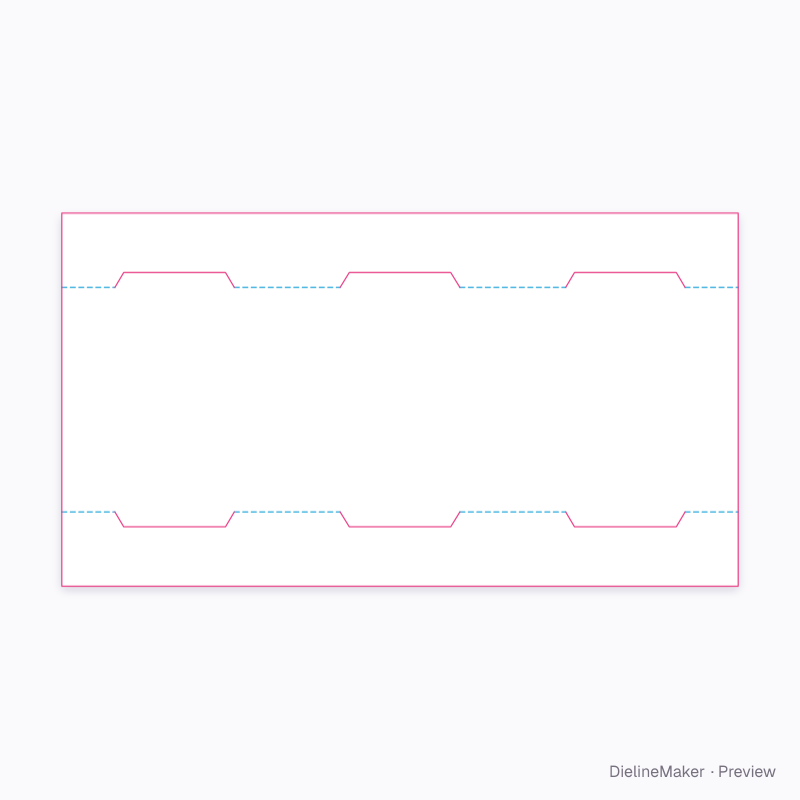

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA E10.11.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Top panel | 200 × 75.3 | L × – |
| Skirt ×2 | 200 × 22 | L × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Construction2 options
- Products in the rowcount
- Locking tab widthmm
The can / cup clip with locking device family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this can clip, single row of 3 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
