PresetEnd-load skillet, chamfered flaps with stepped side flaps
DM-CARTON-ENDS-10-10-03-03-A
Dieline files on Pro

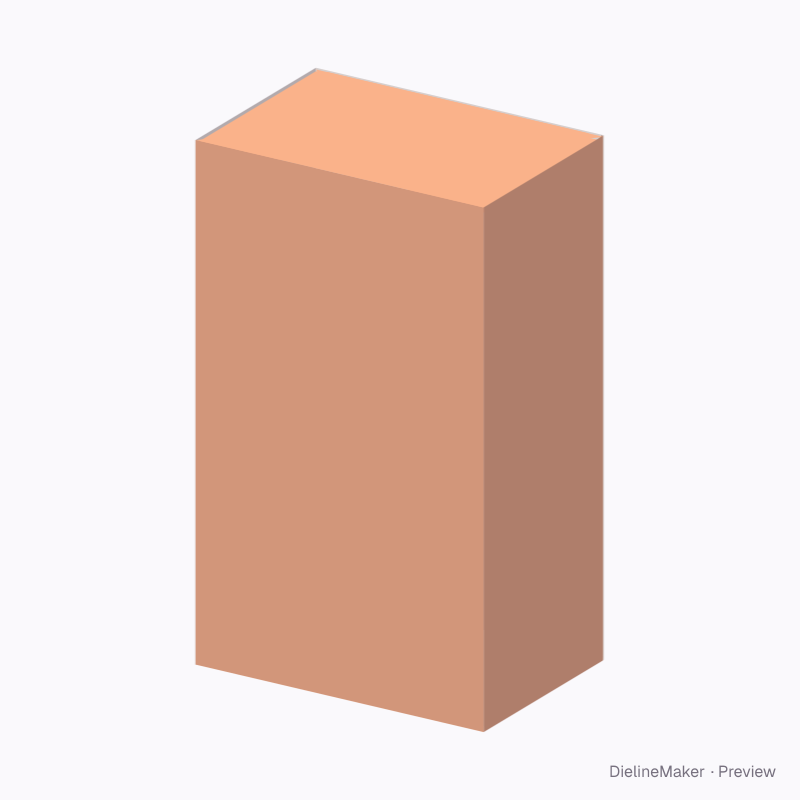

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CARTON-ENDS-10-10-03-03-ATuck end
Skillet and combination-end carton dieline
Long-seam folding cartons with end-load skillet seal ends, edge locks, lobe locks and library end combinations of tuck, seal, lock and gable closures. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 60 × 150 mm
Outside91 × 61 × 151 mm
Flat blank313.5 × 269.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CARTON-ENDS-10-10-03-03-A
- Inside size
- Length 90 · Width 60 · Body height 150 mm
- Size range
- Length 45–400 · Width 20–200 · Body height 40–500 mm
- Manufacturing
- 90.5 × 60.5 × 150.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.072 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for

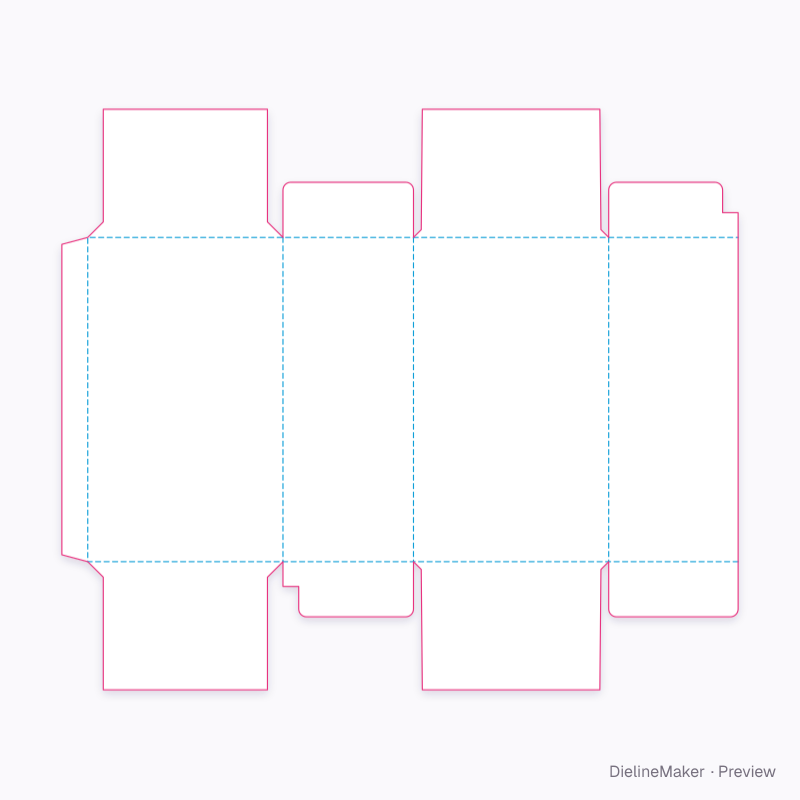

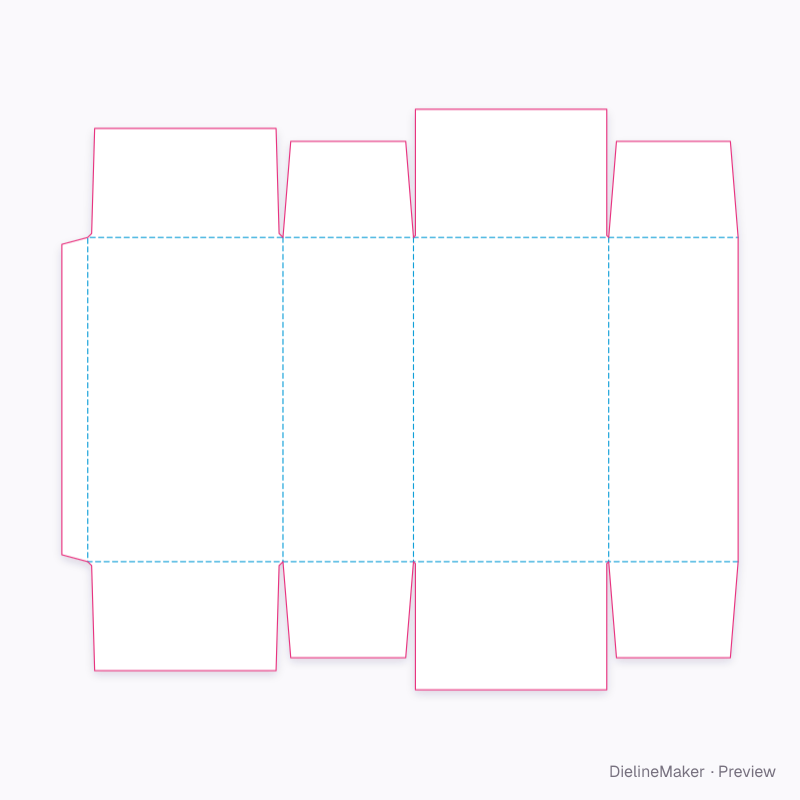

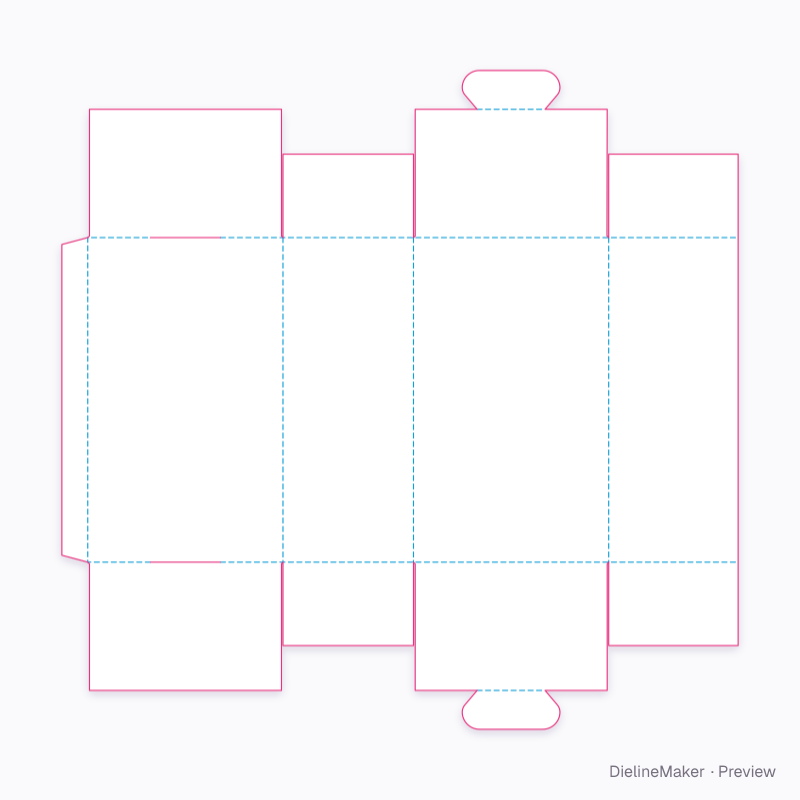

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CARTON-ENDS-10-10-03-03-A blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 90.5 × 150.5 | L + T × H + T |
| Left side | 60.5 × 150.5 | W + T × H + T |
| Back | 90.5 × 150.5 | L + T × H + T |
| Right side | 60 × 150.5 | W × H + T |
| Glue flap | 12 × 150.5 | – × H + T |
| bottom glued major flap | 90.5 × 59.5 | L + T × W − T |
| bottom glued side flap | 60.5 × 25.6 | W + T × – |
| bottom cover flap | 90.5 × 59.5 | L + T × W − T |
| bottom glued side flap | 60 × 25.6 | W × – |
| top glued major flap | 90.5 × 59.5 | L + T × W − T |
| top glued side flap | 60.5 × 25.6 | W + T × – |
| top cover flap | 90.5 × 59.5 | L + T × W − T |
| top glued side flap | 60 × 25.6 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 11 options; the template and 3D preview follow each change.
- Construction17 options
- Glue flapmm
- Tuck depthmm
- Reduced major flap depthmm
- Side flap depthmm
- Lock tab widthmm
- Edge-lock tab depthmm
- Lock extensionmm
- Gable heightmm
- Fin heightmm
- Gable locking flap depthmm
Ready-sized skillet and combination-end carton presets
The same structure with sizes, boards and options set for a use.
- Preset

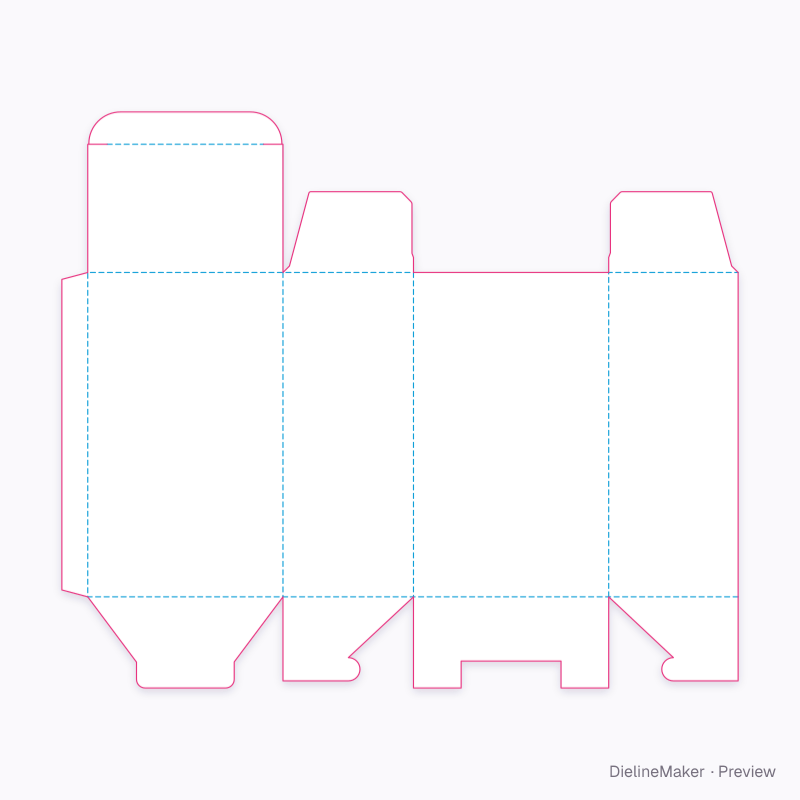

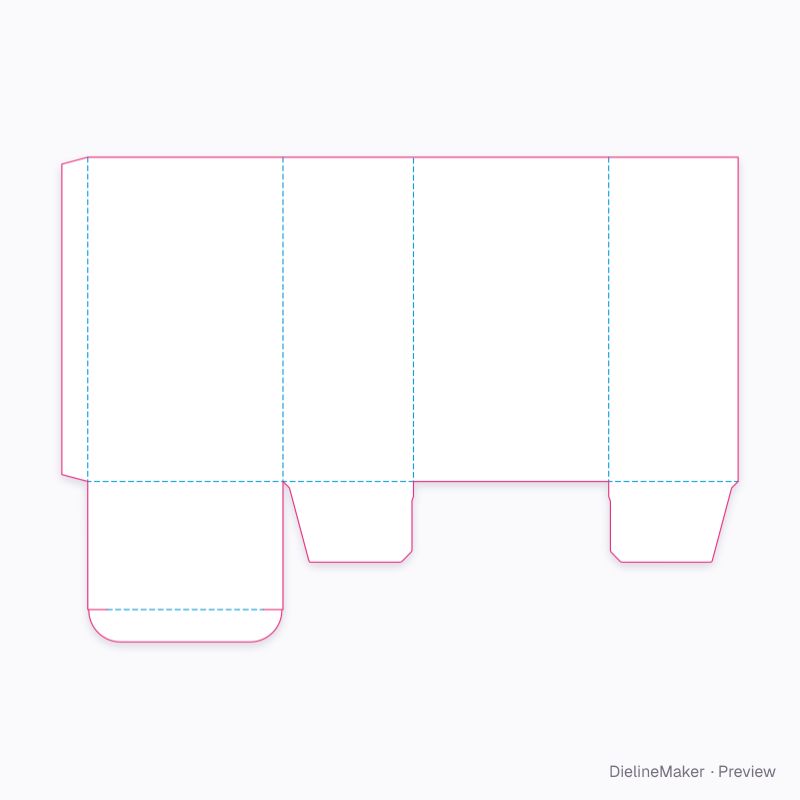

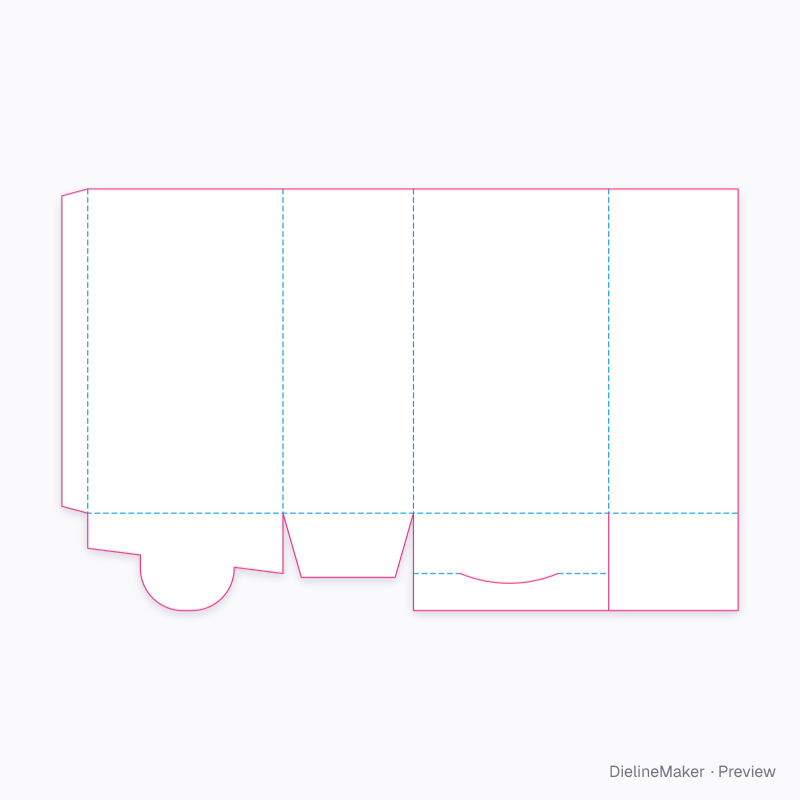

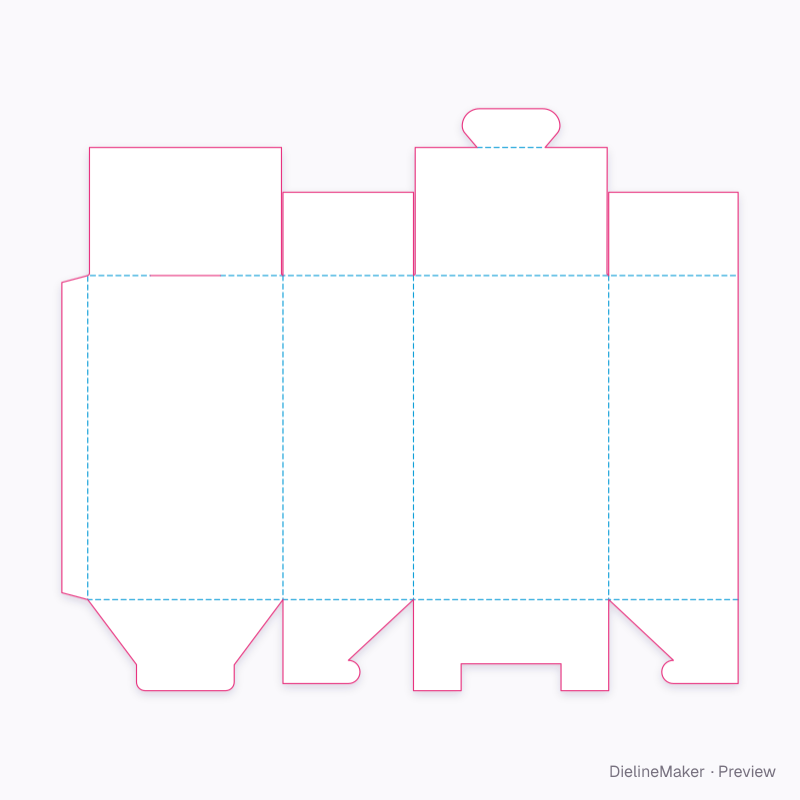

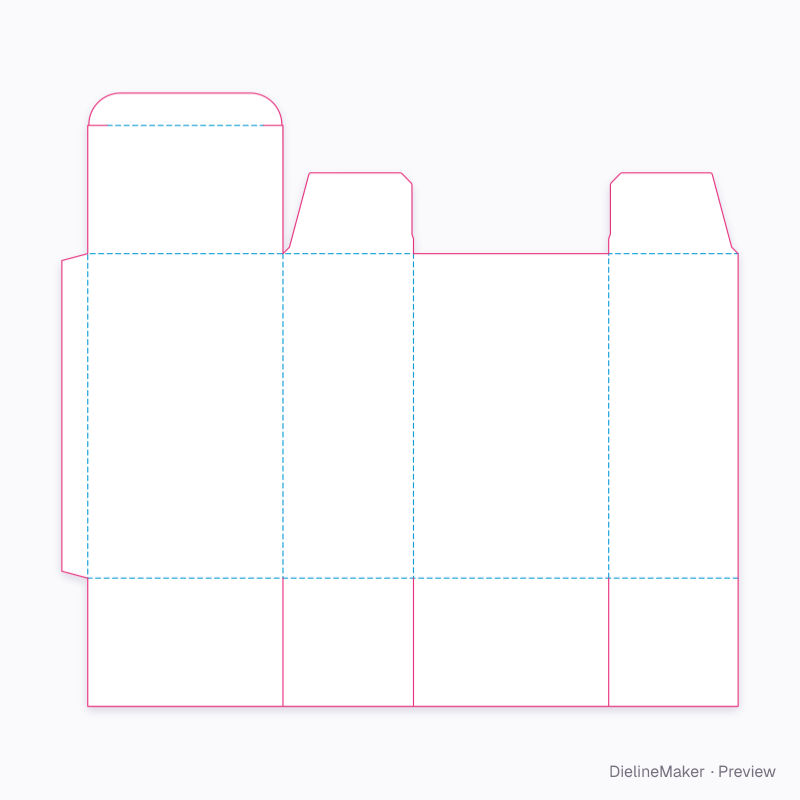

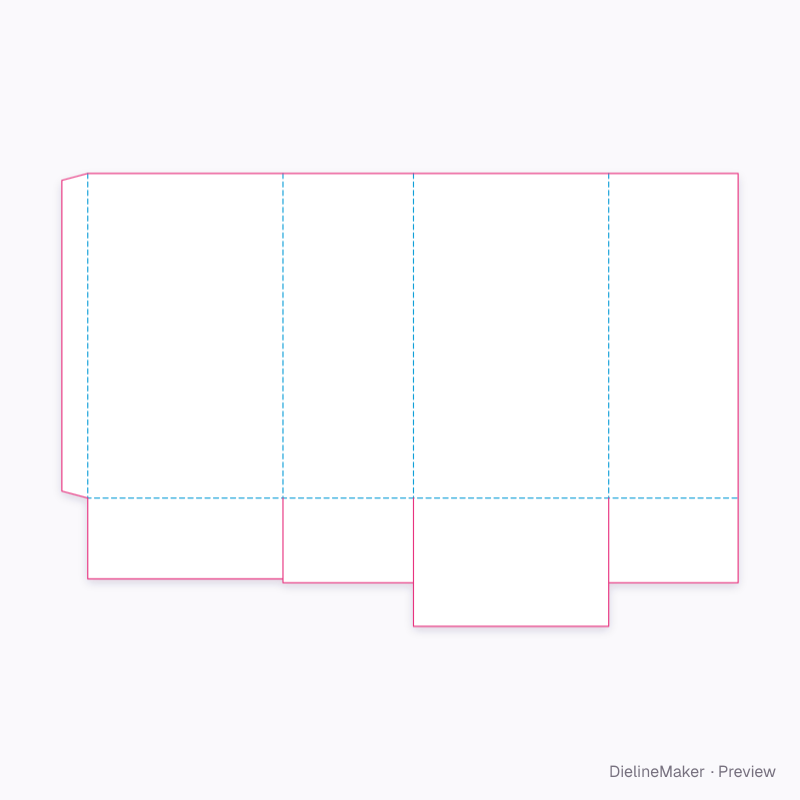

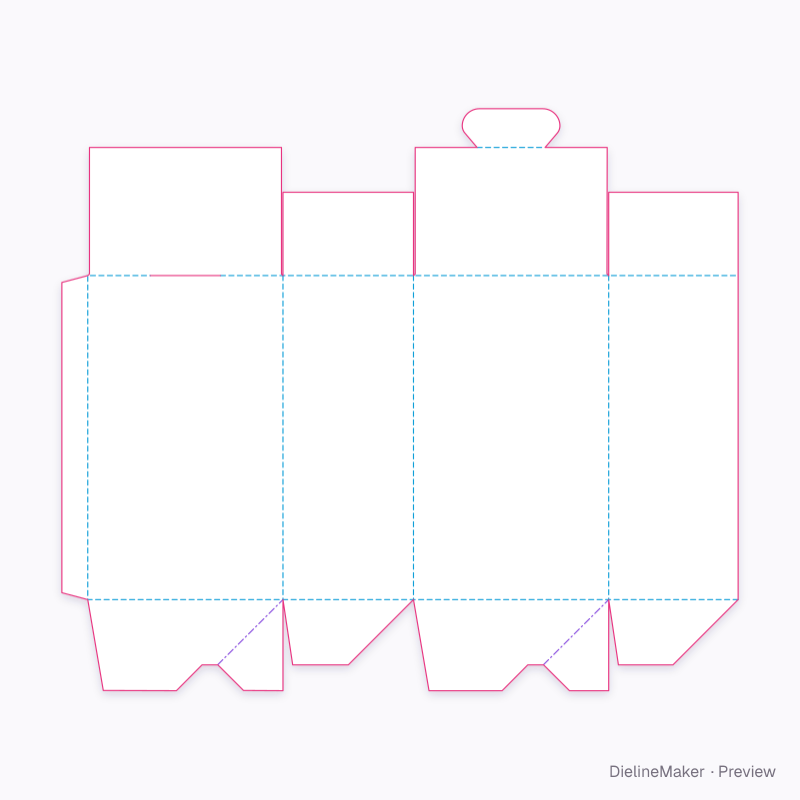

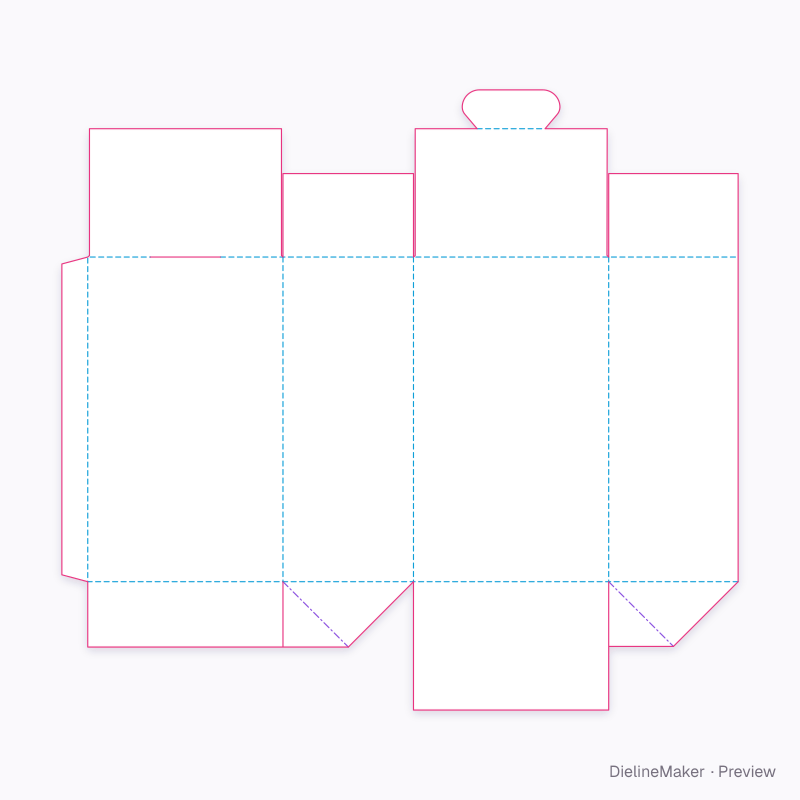

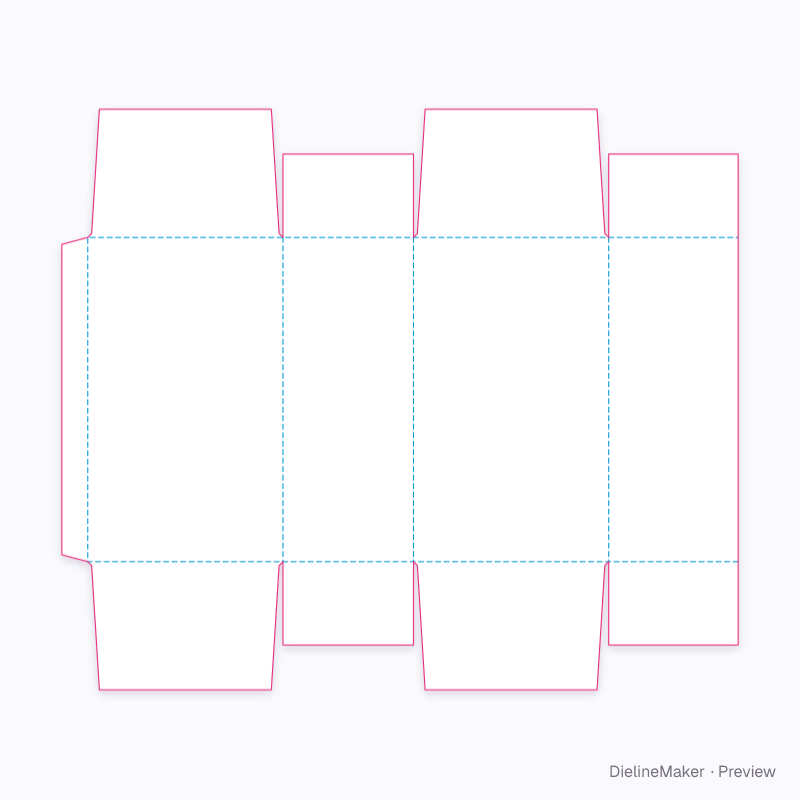

PresetEnd-load skillet, tapered flaps with square side flaps
