DM-CARTON-ENDS-55-70-01-00Tuck end
Snap-lock base, fin-sealed gable top dieline
Built from the library reference A55.70.01.00. A ready-sized preset of the skillet and combination-end carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 60 × 150 mm
Outside90.5 × 60.5 × 212.9 mm
Flat blank314 × 263.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CARTON-ENDS-55-70-01-00
- Inside size
- Length 90 · Width 60 · Body height 150 mm
- Size range
- Length 45–400 · Width 20–200 · Body height 40–500 mm
- Manufacturing
- 90.5 × 60.5 × 150.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.078 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for

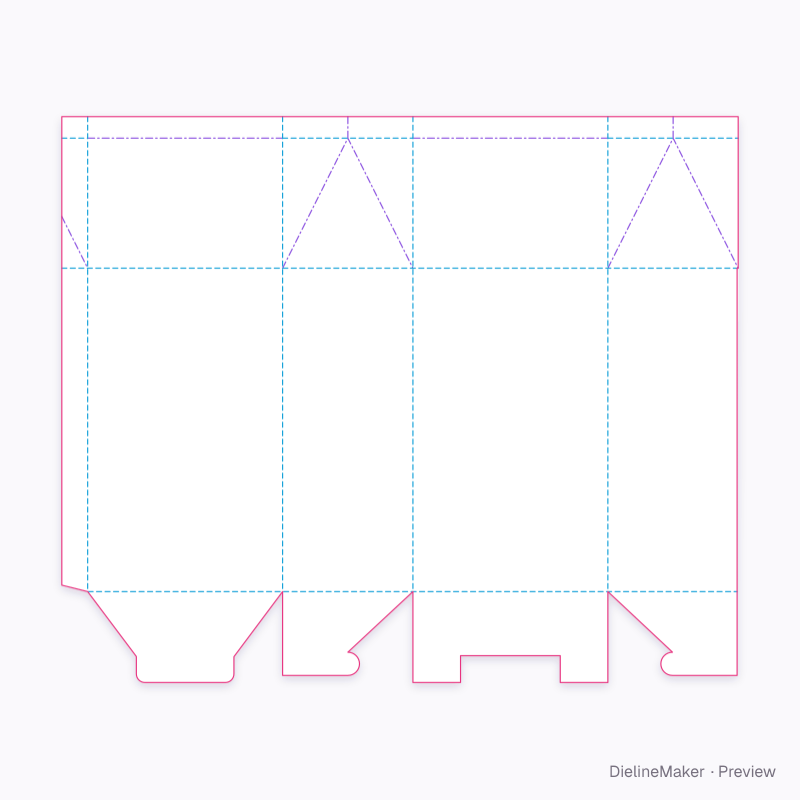

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CARTON-ENDS-55-70-01-00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 90.5 × 150.5 | L + T × H + T |
| Left side | 60.5 × 150.5 | W + T × H + T |
| Back | 90.5 × 150.5 | L + T × H + T |
| Right side | 60 × 150.5 | W × H + T |
| Glue flap | 12 × 150.5 | – × H + T |
| Back roof | 90.5 × 60.5 | L + T × √(rise² + a²) |
| Top fin ×2 | 90.5 × 10 | L + T × – |
| Front roof | 90.5 × 60.5 | L + T × √(rise² + a²) |
| Gable end | 60.5 × 60.5 | W + T × W + T |
| Gable fold-in ×4 | 27.1 × 67.6 | – |
| Gable fin ×4 | 30.3 × 10 | – |
| Gable end | 60 × 60.5 | W × W + T |
| Seam end triangle | 12 × 24 | – |
| Seam diagonal return | 27.1 × 26.8 | – |
| Seam fin | 12 × 10 | – |
| P1 snap tongue | 90.5 × 42.3 | L + T × – |
3 more panels are listed in the editor’s structure step.
