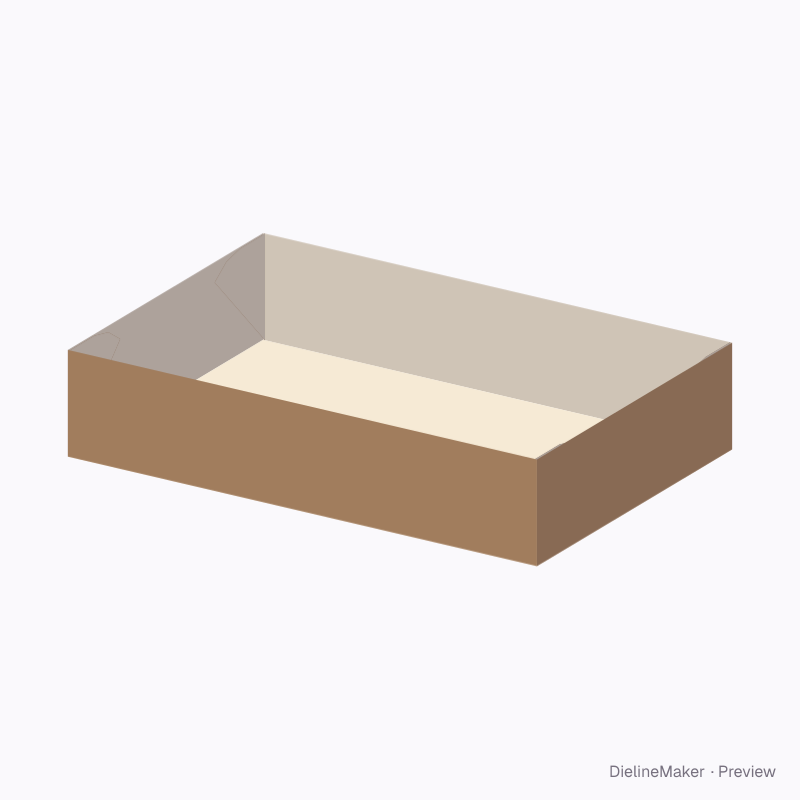

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA B15.11.00.00Trays & lids
ECMA B15.11.00.00 · Unglued webbed-corner tray dieline
Unglued webbed-corner tray. A ready-sized preset of the unglued claw, scissor and web-lock trays — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside240 × 160 × 50 mm
Outside242 × 161 × 50.5 mm
Flat blank341.5 × 261 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA B15.11.00.00
- Inside size
- Inside length (A) 240 · Inside width (B) 160 · Inside height 50 mm
- Size range
- Inside length (A) 60–600 · Inside width (B) 40–450 · Inside height 15–150 mm
- Manufacturing
- 241 × 160.5 × 50.3 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.088 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350E-flute WSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA B15.11.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Tray floor | 241 × 160.5 | L + 2T × W + T |
| Long wall ×2 | 241 × 50.3 | L + 2T × H + T/2 |
| End wall ×2 | 50.3 × 160.5 | H + T/2 × W + T |
| Corner web ×4 | 41.4 × 50.3 | – × H + T/2 |
| Corner web ×4 | 71.1 × 35.5 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Construction6 options
- Claw ear reachmm
- Corner radiusmm
- Cover wing depthmm
