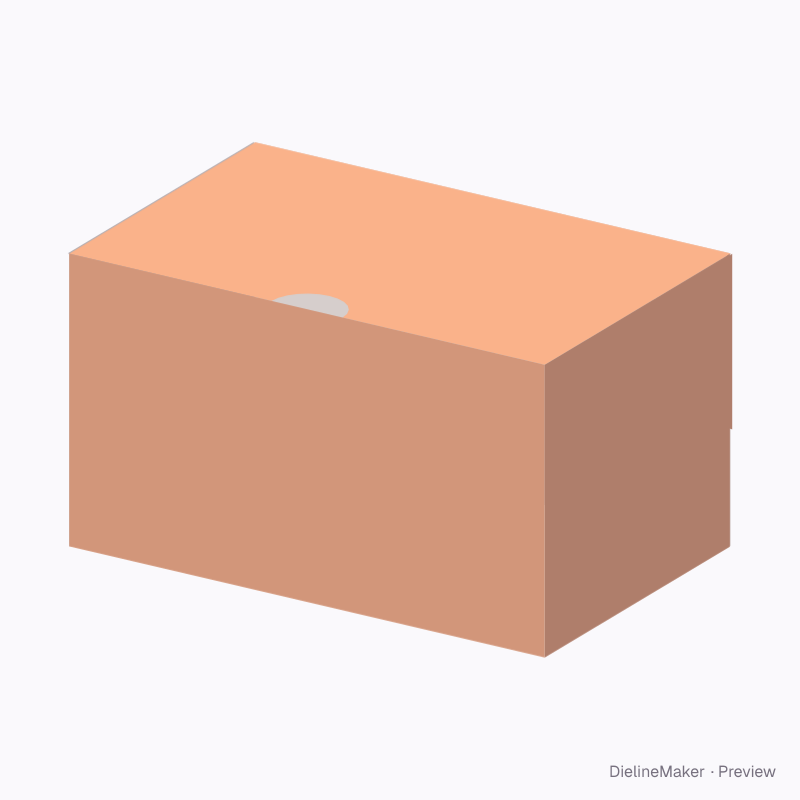

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CARTON-EXTERNAL-GUSSET-LID-01Tuck end
Tuck-out glued-lid carton dieline
A lid resting on the walls, its gussets glued outside the side walls. Auxiliary feature reference: ECMA X36; product code is DM-CARTON-EXTERNAL-GUSSET-LID-01. A ready-sized preset of the carton with opening device — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside160 × 100 × 90 mm
Outside161 × 101 × 91 mm
Flat blank575.8 × 305.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CARTON-EXTERNAL-GUSSET-LID-01
- Inside size
- Length 160 · Width 100 · Height 90 mm
- Size range
- Length 40–400 · Width 20–250 · Height 40–450 mm
- Manufacturing
- 160.5 × 100.5 × 90.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.098 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350F-fluteSBS 18 pt
- Good for

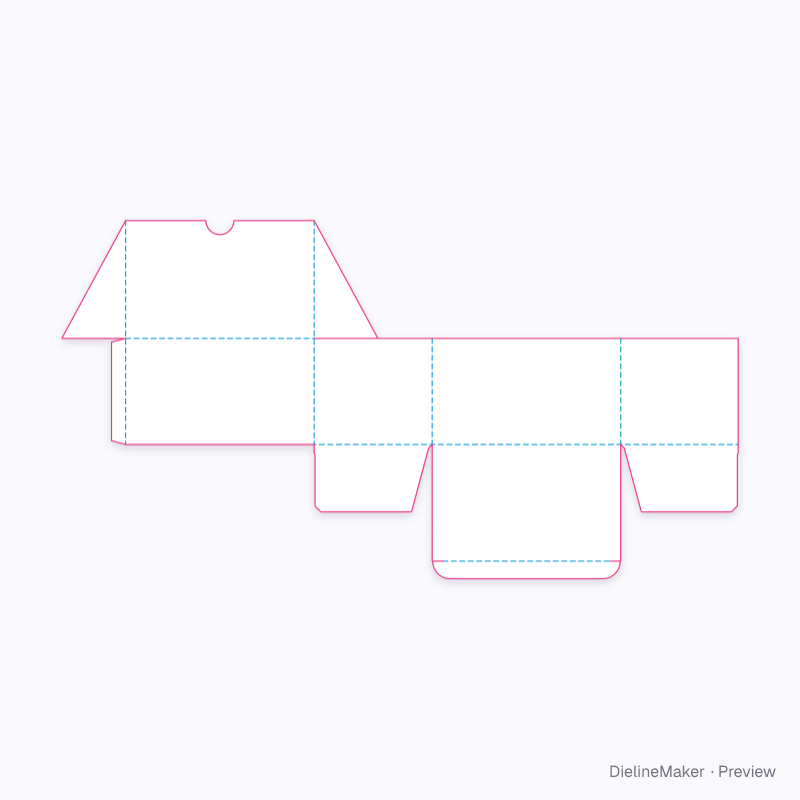

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CARTON-EXTERNAL-GUSSET-LID-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 160.5 × 90.5 | L + T × H + T |
| Left side | 100.5 × 90.5 | W + T × H + T |
| Back | 160.5 × 90.5 | L + T × H + T |
| Right side | 100 × 90.5 | W × H + T |
| Glue flap | 12 × 90.5 | – × H + T |
| Bottom closure | 160.5 × 99.5 | L + T × W − T |
| Bottom tuck | 159.5 × 15 | L − T × – |
| Bottom dust flap | 100.5 × 57.5 | W + T × – |
| Bottom dust flap | 100 × 57.5 | W × – |
| Glued lid | 160.5 × 100.5 | L + T × W + T |
| Tuck-out gusset ×2 | 54.3 × 100.5 | – × W + T |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Device17 options
- Strip widthmm
- Strip positionmm
- Lock widthmm
- Tuck depthmm
