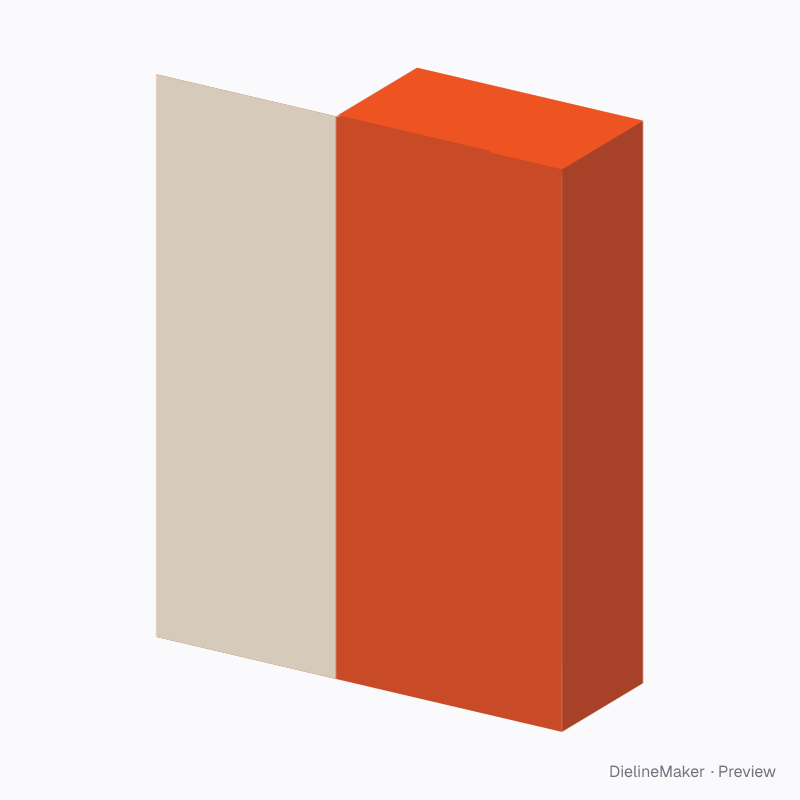

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DISPLAY-WING-JOINED-01Display
Carton with glued double display panel dieline
Panels from both ends of the blank glued together: they close the tube and stand as one double display. Auxiliary feature reference: ECMA X73; product code is DM-DISPLAY-WING-JOINED-01. A ready-sized preset of the carton with display panel — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside70 × 40 × 160 mm
Outside71 × 41 × 161 mm
Flat blank333.5 × 269.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DISPLAY-WING-JOINED-01
- Inside size
- Length 70 · Width 40 · Height 160 mm
- Size range
- Length 30–300 · Width 15–200 · Height 50–400 mm
- Manufacturing
- 70.5 × 40.5 × 160.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.065 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350F-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DISPLAY-WING-JOINED-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 70.5 × 160.5 | L + T × H + T |
| Right side | 40.5 × 160.5 | W + T × H + T |
| Back | 70.5 × 160.5 | L + T × H + T |
| Left side | 40 × 160.5 | W × H + T |
| Top closure | 70.5 × 39.5 | L + T × W − T |
| Top tuck | 69.5 × 15 | L − T × – |
| Top dust flap | 40.5 × 27.5 | W + T × – |
| Top dust flap | 40 × 27.5 | W × – |
| Bottom closure | 70.5 × 39.5 | L + T × W − T |
| Bottom tuck | 69.5 × 15 | L − T × – |
| Bottom dust flap | 40.5 × 27.5 | W + T × – |
| Bottom dust flap | 40 × 27.5 | W × – |
| Display panel | 56 × 160.5 | – × H + T |
| Display panel (second wall) | 56 × 160.5 | – × H + T |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Display panel3 options
- Panel widthmm
- Tuck depthmm
The carton with display panel family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this carton with glued double display panel yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
