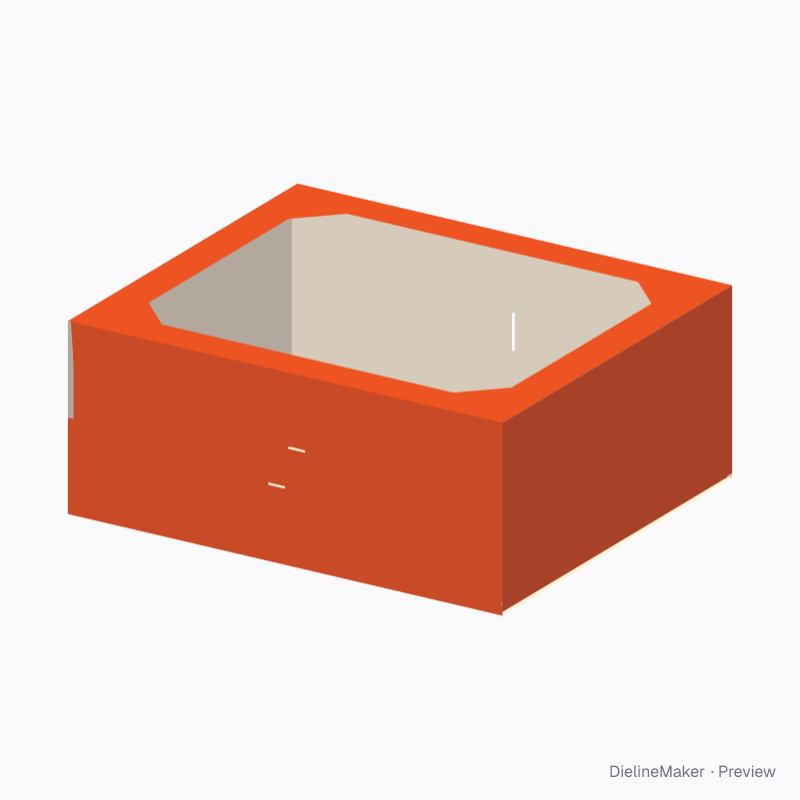

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0722Display

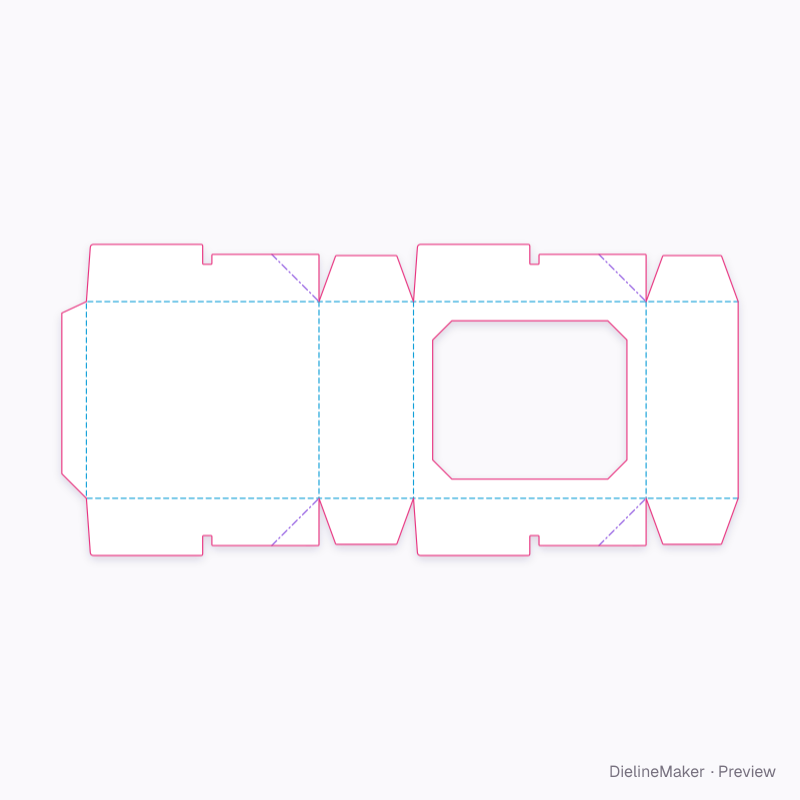

Automatic-end window display dieline
A side-opening display with a large window and pre-glued automatic closures at both ends. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 120 × 250 mm
Outside306.4 × 126.4 × 262.8 mm
Flat blank881.6 × 405.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0722
- Inside size
- Display width 300 · Display height 120 · Display depth 250 mm
- Size range
- Display width 100–1000 · Display height 60–800 · Display depth 50–900 mm
- Manufacturing
- 303.2 × 123.2 × 256.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.330 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for

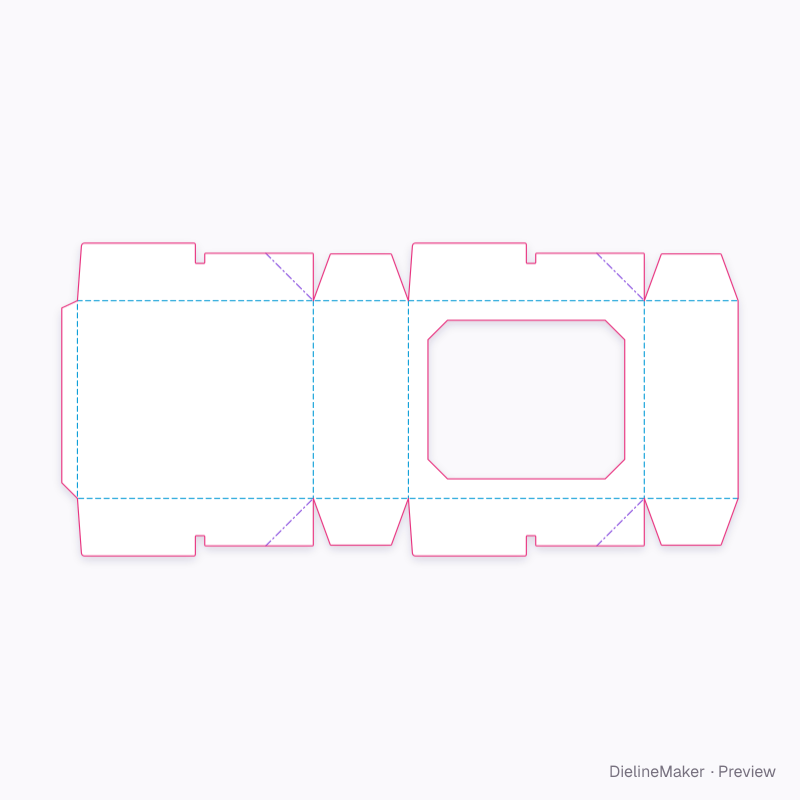

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0722 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 303.2 × 256.4 | L + T × H + 2T |
| Left side | 123.2 × 256.4 | W + T × H + 2T |
| Back | 303.2 × 256.4 | L + T × H + 2T |
| Right side | 120 × 256.4 | W × H + 2T |
| Glue flap | 32 × 256.4 | – × H + 2T |
| Crash-lock flap (back) ×2 | 303.2 × 74.6 | L + T × – |
| Glued web ×2 | 43.1 × 87.1 | – |
| Bottom side flap ×2 | 123.2 × 60 | W + T × – |
| Crash-lock flap (front) ×2 | 303.2 × 74.6 | L + T × – |
| Glued web ×2 | 87.1 × 43.1 | – |
| Bottom side flap ×2 | 120 × 60 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Window bordermm
- Hook reachmm
- Hook notchmm
Ready-sized automatic-end window display presets
The same structure with sizes, boards and options set for a use.
- Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this automatic-end window display yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
