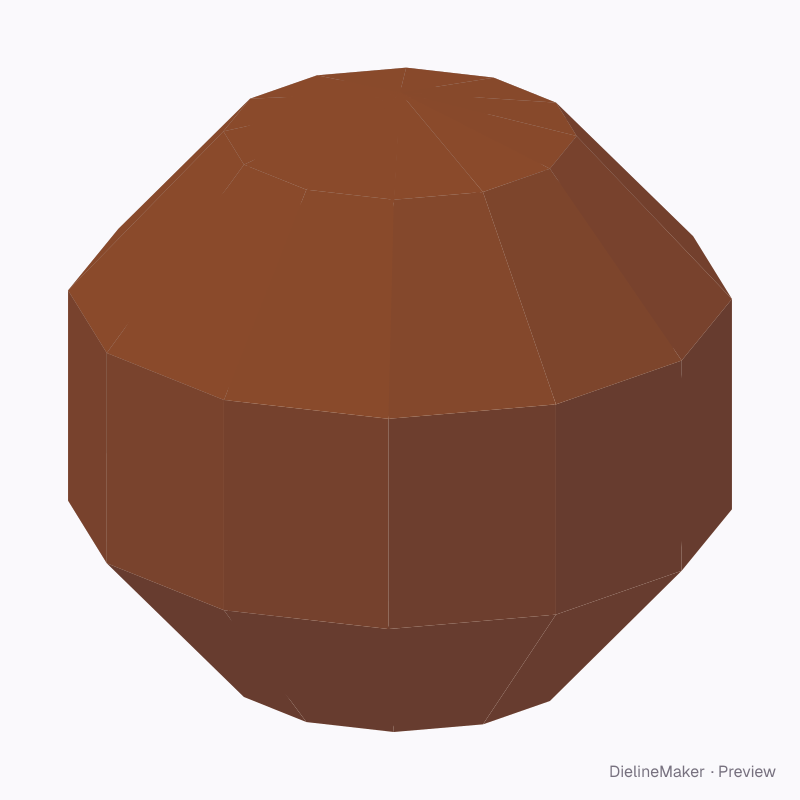

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FACETED-SPHERE-CARTON-01Shapes
Bauble box (12 columns) dieline
A faceted paper ball that opens: flat facets in latitude bands, glued side seams and polar end bays that close with reusable tuck tabs. A ready-sized preset of the faceted sphere gift carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 90 × 90 mm
OutsideØ 90 × 90 mm
Flat blank285.1 × 140.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FACETED-SPHERE-CARTON-01
- Inside size
- Diameter 90 · Height 90 mm
- Size range
- Diameter 50–400 · Height 50–400 mm
- Manufacturing
- Ø 90 × 90 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.029 m² · about 15 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350Black 350SBS 18 pt
- Good for

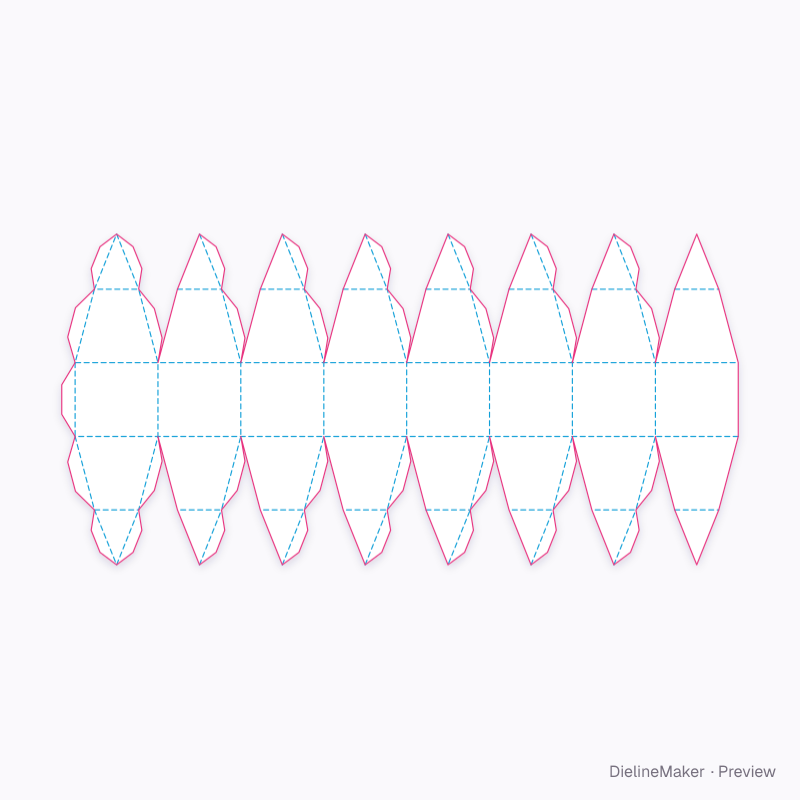

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Columnscount
- Latitude bandscount
- Polar bay angle°
- Reclosable ends2 options
- Tab depthmm
The faceted sphere gift carton family
The same structure with sizes, boards and options set for a use.
Preset
Preset

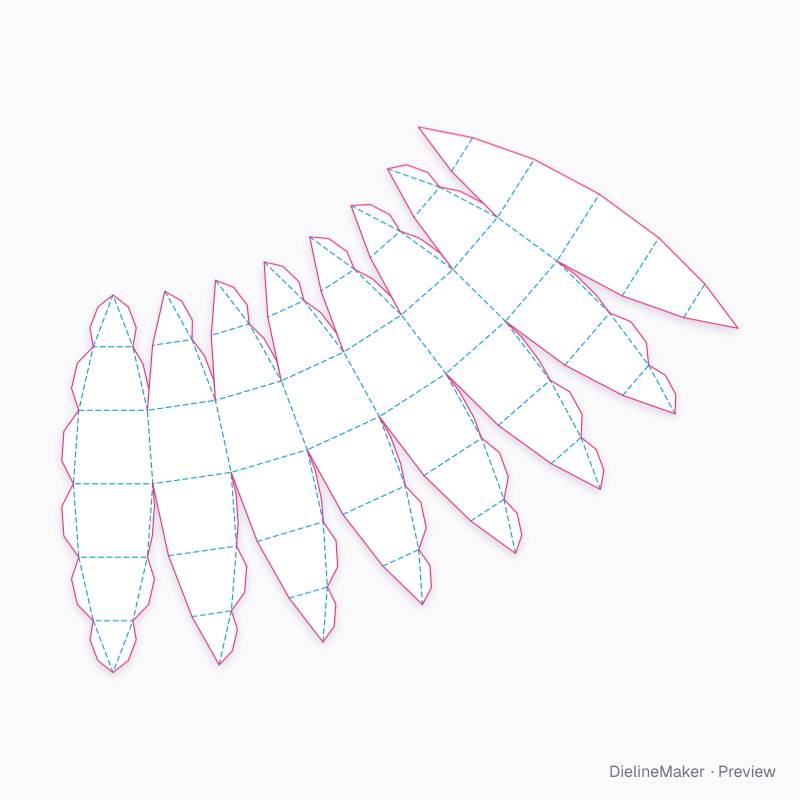

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this bauble box (12 columns) yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
