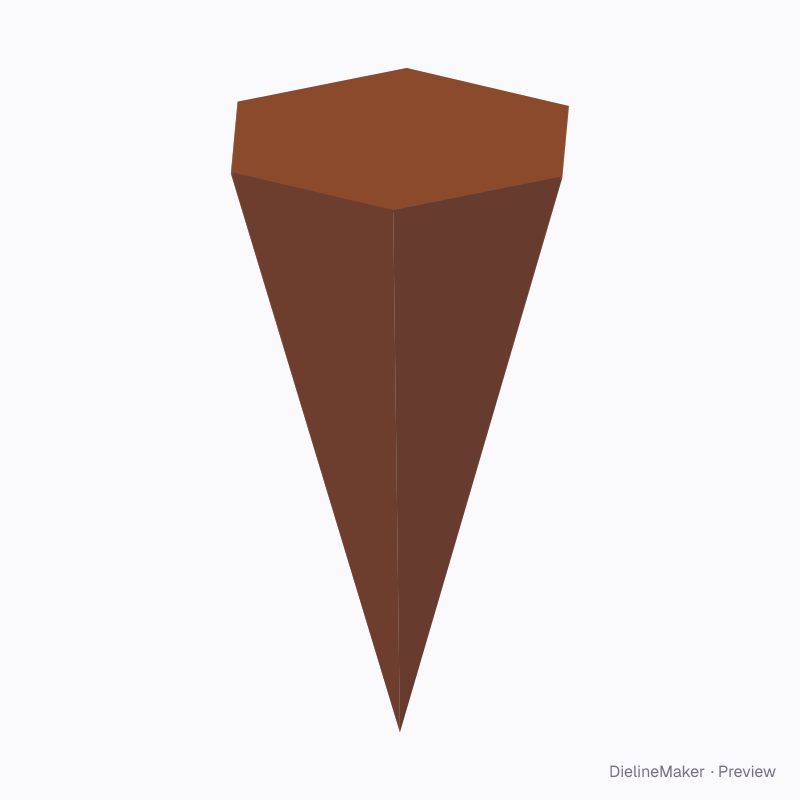

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-POINTED-CONE-CARTON-01Shapes
Pointed polygon cone carton with reclosable cap dieline
A pointed 3–8 sided cone carton whose polygon cap is hinged on one edge and recloses with tuck tabs on the others. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 90 × 150 mm
OutsideØ 91 × 151 mm
Flat blank212.1 × 266.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-POINTED-CONE-CARTON-01
- Inside size
- Rim width across corners 90 · Height (point to rim) 150 mm
- Size range
- Rim width across corners 40–300 · Height (point to rim) 40–400 mm
- Manufacturing
- Ø 90.5 × 150.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.031 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350FBB 400SBS 300SBS 18 pt
- Good for

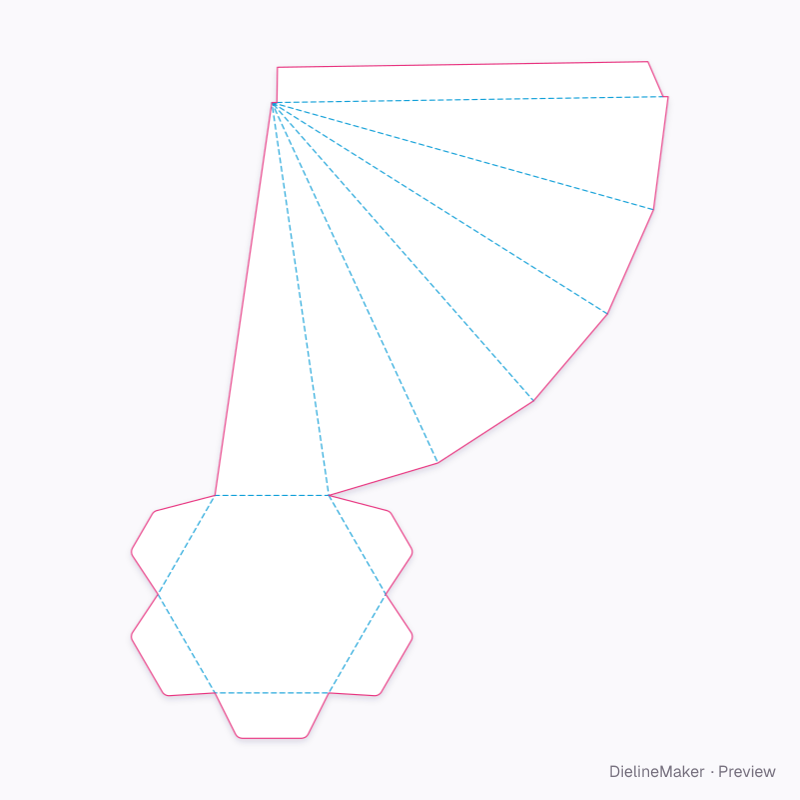

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Sidescount
- Cap tab depthmm
Ready-sized pointed polygon cone carton with reclosable cap presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset

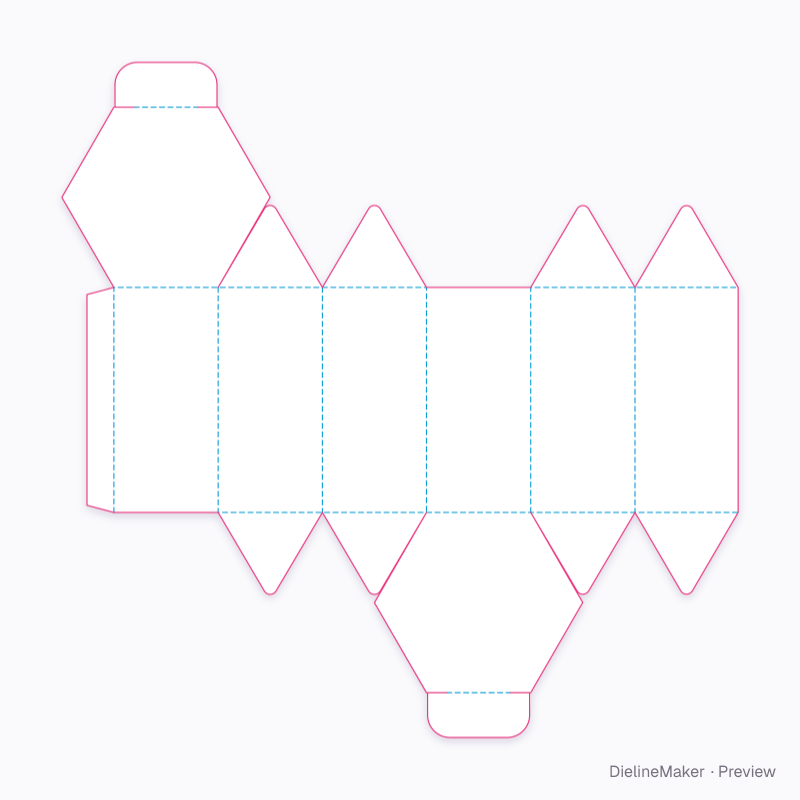

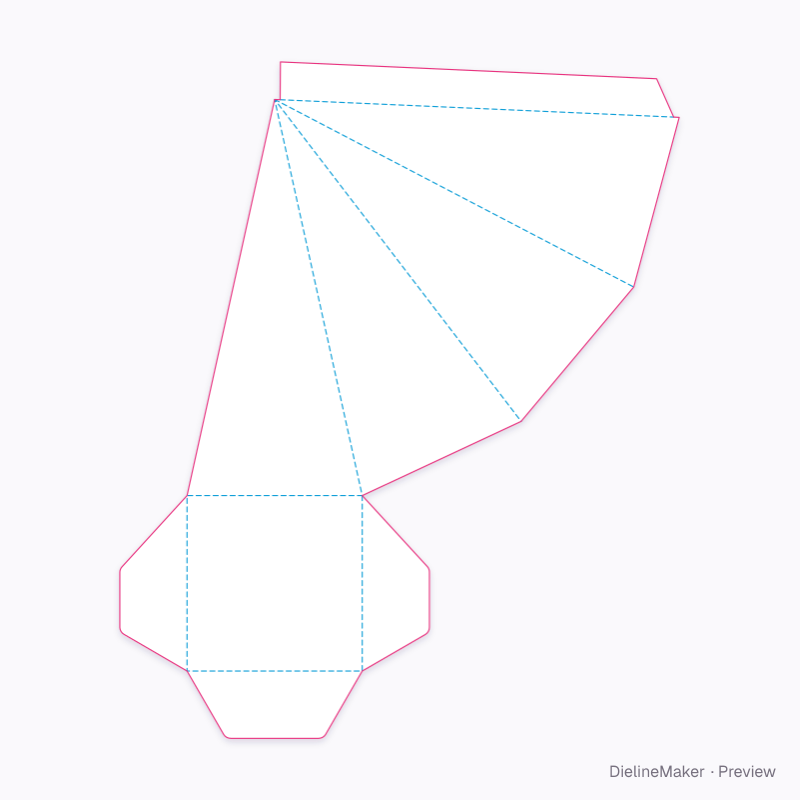

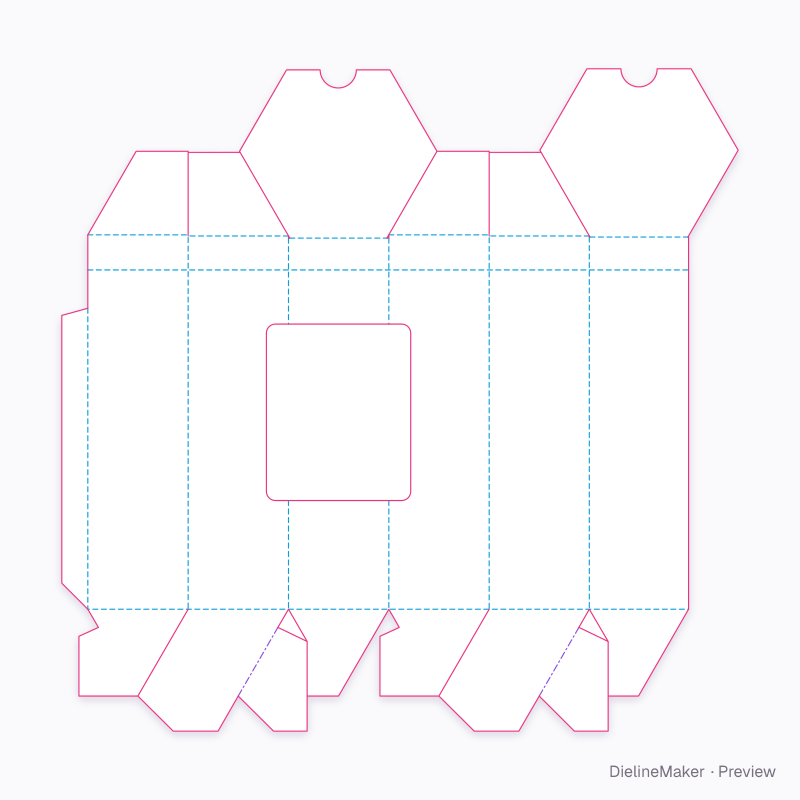

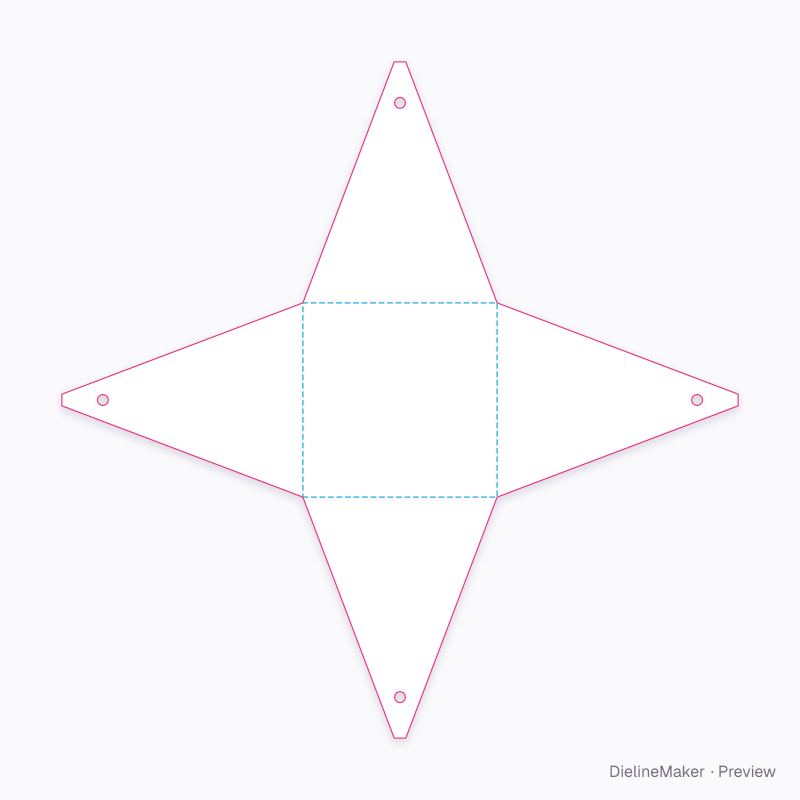

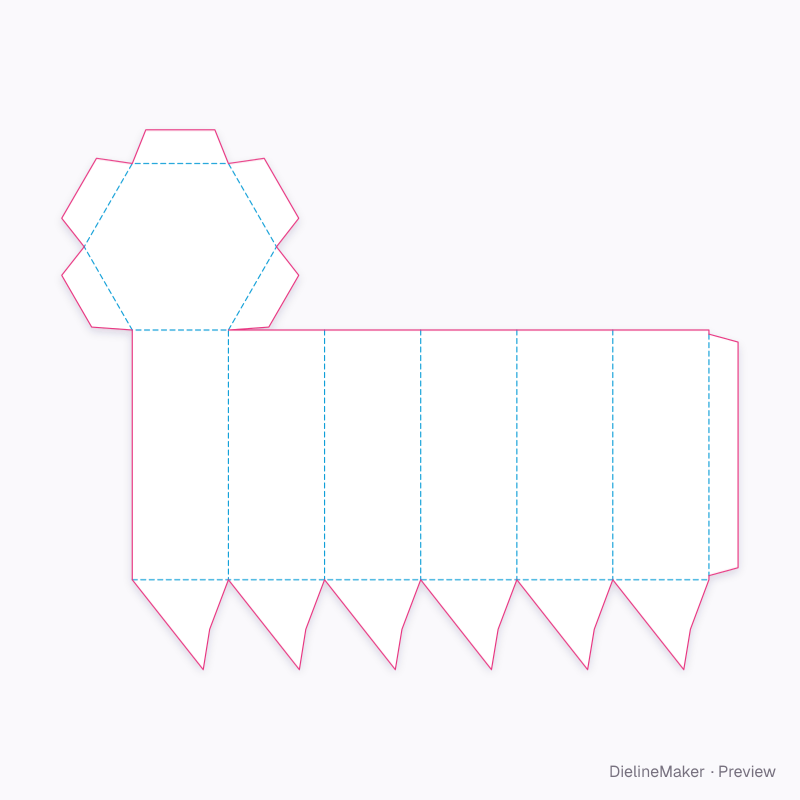

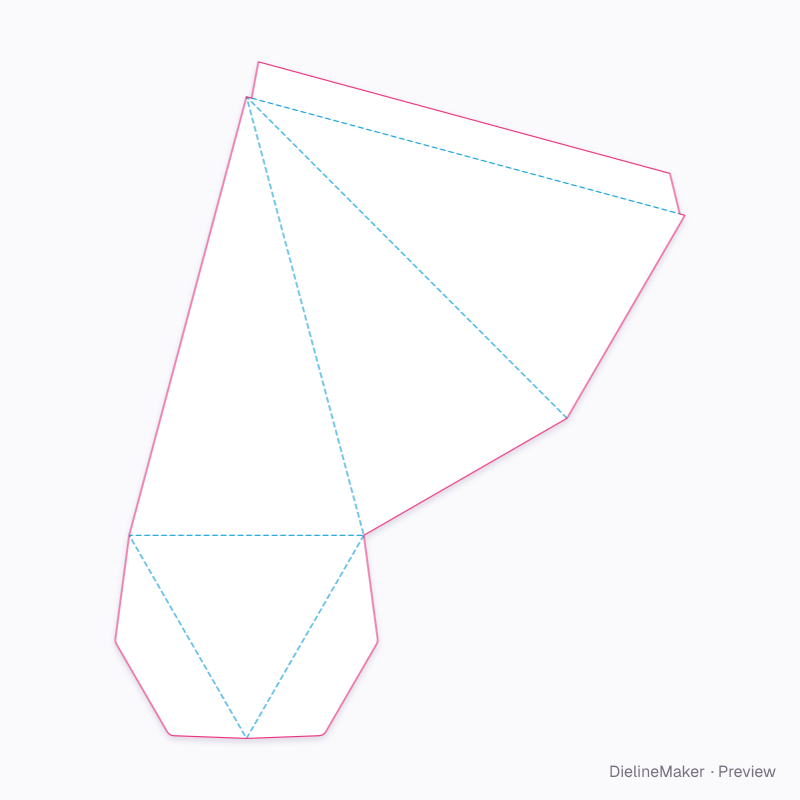

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this pointed polygon cone carton with reclosable cap yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
