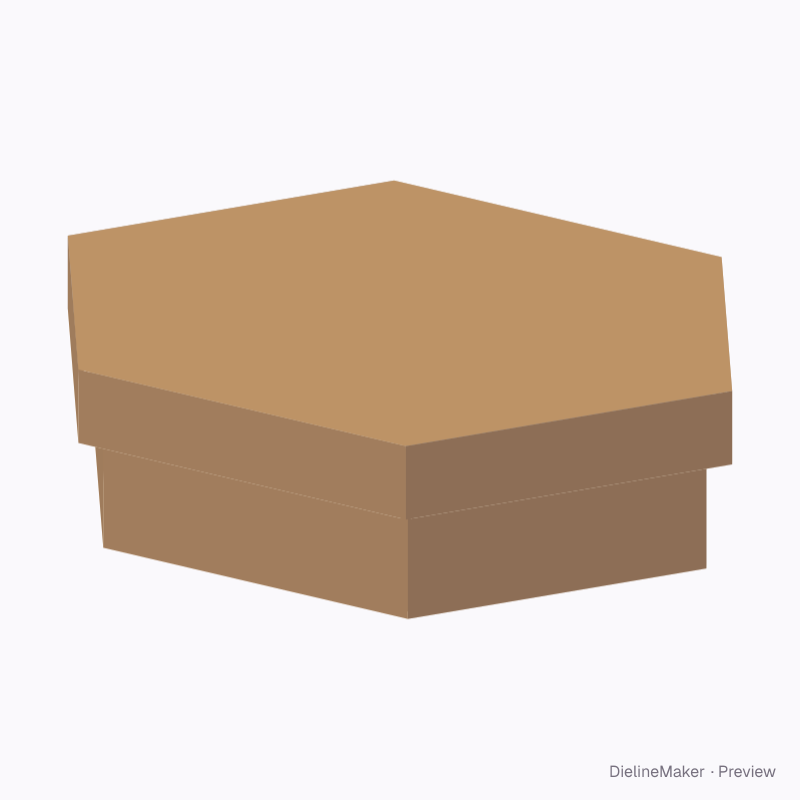

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0360Shipping
Six-piece hexagonal telescope dieline
Each half uses a hexagonal rolled cross, a separate plain liner and a six-panel collar trapped inside the walls. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 100 mm
Outside466.3 × 355.2 × 119.2 mm
Flat blank804.5 × 791.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0360
- Inside size
- Inside length 400 · Inside width 300 · Inside height 100 mm
- Size range
- Inside length 160–1000 · Inside width 120–800 · Inside height 25–240 mm
- Manufacturing
- 400 × 300 × 100 mm score to score · inside vs outside sizes
- Parts
- 6 parts — base rolled cross, base hexagonal liner, Base wall strip, lid rolled cross, lid hexagonal liner, Lid wall strip
- Board area
- 1.002 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for

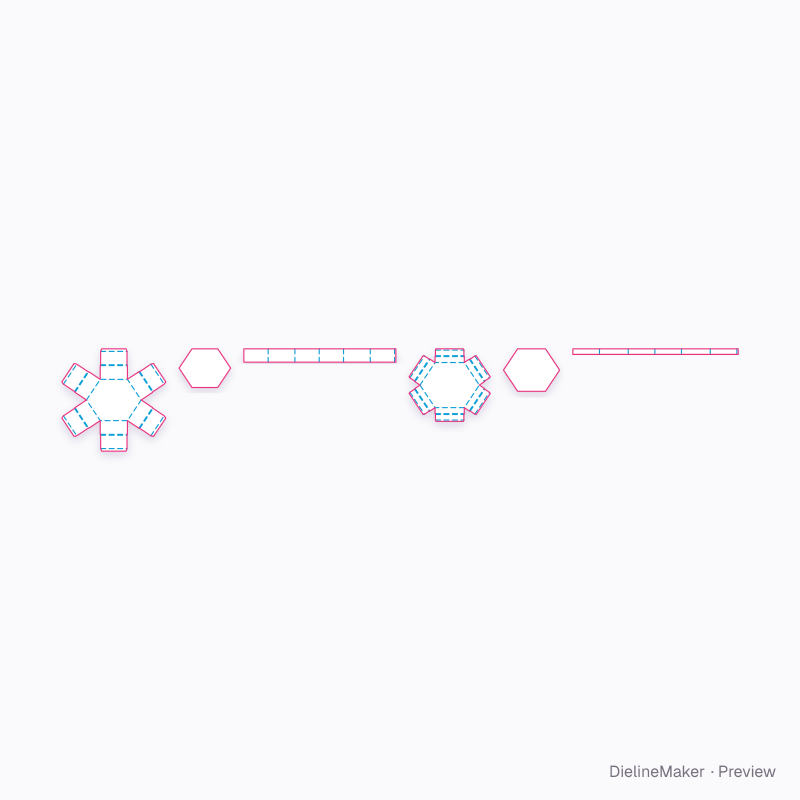

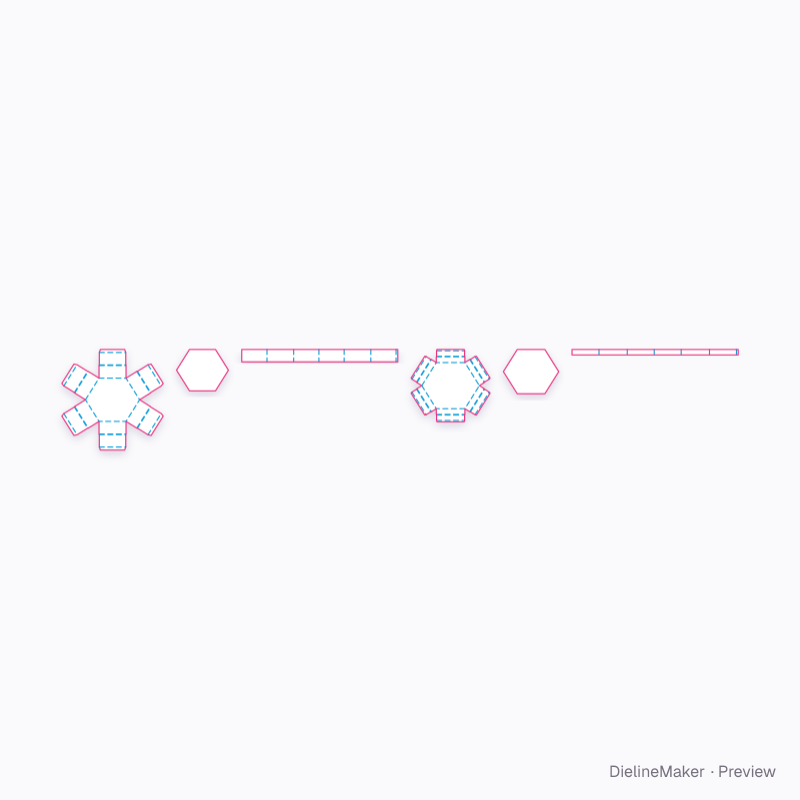

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0360 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floorbase rolled cross | 423.1 × 319.2 | – |
| Hexagonal rolled wall ×4base rolled cross | 106.4 × 191.8 | H + 2T × – |
| Hexagonal rolled wall roll ×4base rolled cross | 6.4 × 185.4 | – |
| Hexagonal rolled wall (inside) ×4base rolled cross | 103.2 × 185.4 | H + T × – |
| base foot 0base rolled cross | 20 × 185.4 | – |
| Hexagonal rolled wall ×2base rolled cross | 210.3 × 106.4 | – × H + 2T |
| Hexagonal rolled wall roll ×2base rolled cross | 203.9 × 6.4 | – |
| Hexagonal rolled wall (inside) ×2base rolled cross | 203.9 × 103.2 | – × H + T |
| base foot 1base rolled cross | 203.9 × 20 | – |
| base foot 2base rolled cross | 20 × 185.4 | – |
| base foot 3base rolled cross | 20 × 185.4 | – |
| base foot 4base rolled cross | 203.9 × 20 | – |
| base foot 5base rolled cross | 20 × 185.4 | – |
| Loose hexagonal linerbase hexagonal liner | 398.8 × 299 | – |
| Base wall ×4Base wall strip | 188 × 103.2 | – × H + T |
| Base wall ×2Base wall strip | 206.9 × 103.2 | – × H + T |
22 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Cover depthmm
- Cover clearance per sidemm
