Structural styles

FEFCO box codes and corrugated styles

Understand FEFCO structural codes and choose an editable corrugated box recipe with the right closure.

DielineMaker · Updated 26 October 2026

Illustration of packaging concepts. See the templates below for editable geometry.

FEFCO codes identify corrugated packaging constructions. The official 12th edition provides a shared vocabulary for discussing a box shape across suppliers and languages.

DielineMaker offers editable examples of supported constructions. A matching code describes a structure; it does not certify board strength, shipping performance or complete coverage of the official codebook.

Read the structure before choosing a size

Use the official drawing to confirm the flap arrangement and assembly sequence. Similar silhouettes can hide different joints, overlaps and locking details.

Reference	What it means	Design use

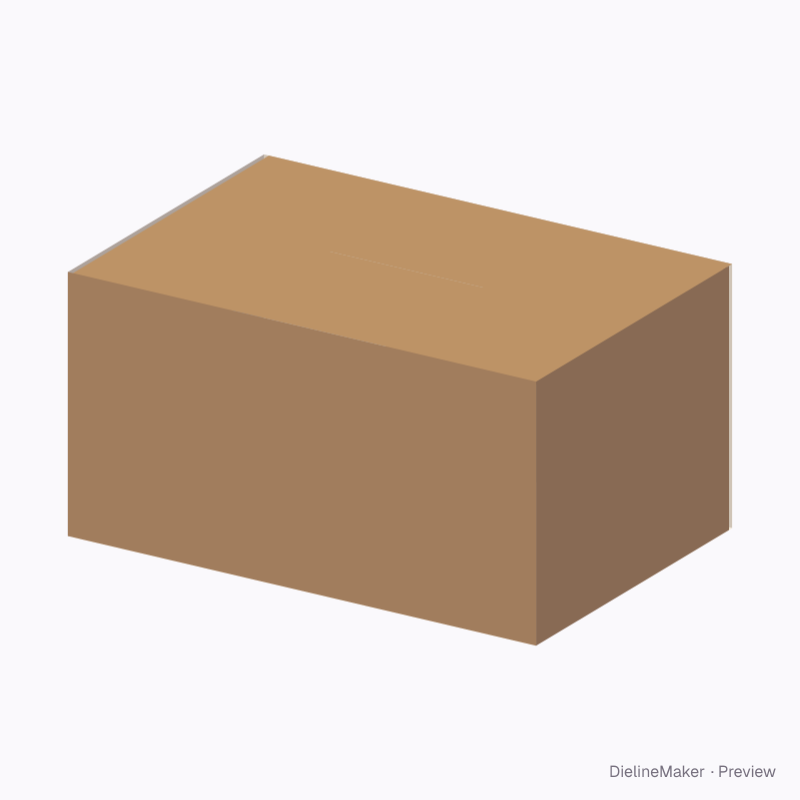

0201 / RSC	A slotted case with outer closing flaps meeting at the centre.	General shipping-box starting point.

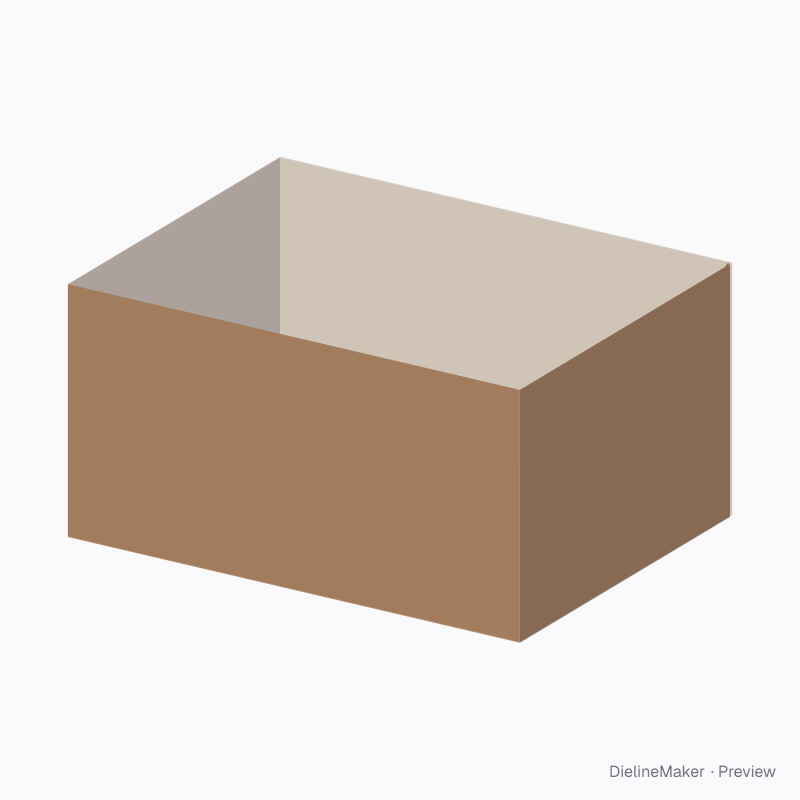

0200 / HSC	A half-slotted body with one open end.	Specify a separate cover when the shipment requires one.
0203 / full overlap	Outer closing flaps overlap across the opening.	Check closure thickness and sealing method.

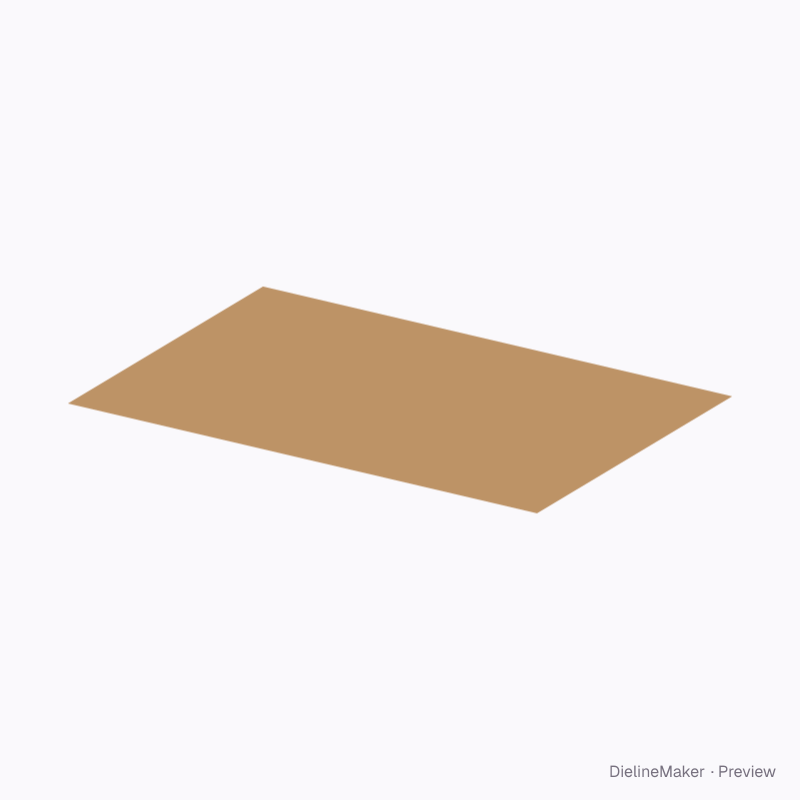

09 series	Interior packaging elements and fitments.	Plan protection alongside the outer case.

From code to converter brief

Record the style, internal product space, material and caliper, joint, closure and intended distribution route. Check the assembled sample with the real product before releasing tooling.

FEFCO code drawings and the native templates are separate references. Inspect the exported cut and crease geometry and obtain the converter’s production allowances.
