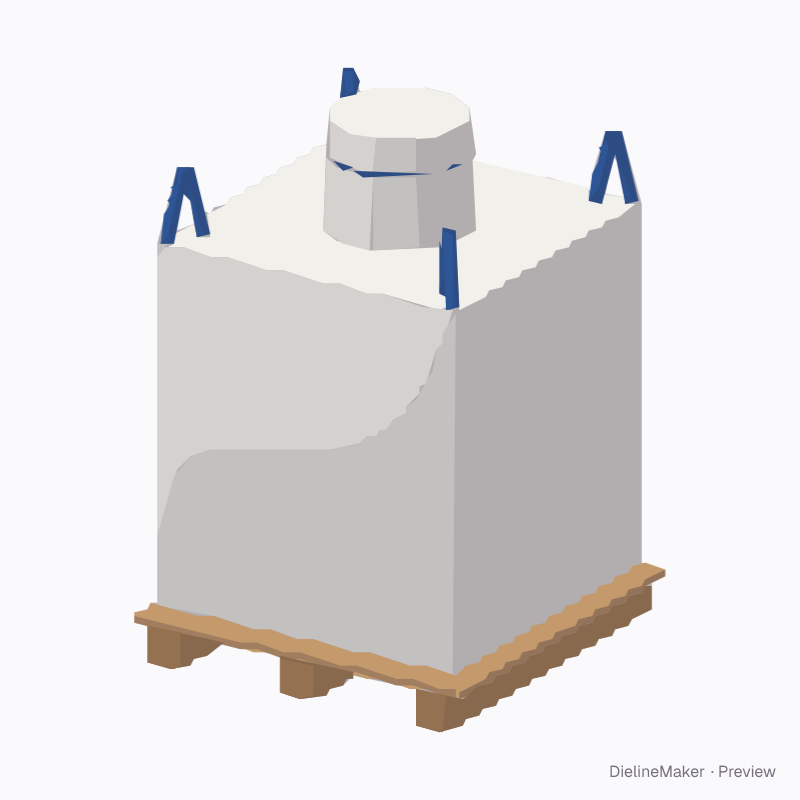

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FIBC-01Labels
FIBC bulk bag (big bag) dieline
A woven bulk bag with four corner lifting loops, top fill spout or duffle top and optional discharge spout, on a pallet. Print the front and side panels. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside900 × 1000 mm
Outside900 × 1000 mm
Flat blank756 × 760 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FIBC-01
- Inside size
- Base width 900 · Body height 1000 mm
- Size range
- Base width 500–1300 · Body height 500–2200 mm
- Manufacturing
- 900 × 1000 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Front panel, Right side panel
- Board area
- 1.149 m²
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Top3 options
- Bottom discharge spouton / off
- Palleton / off
- Fabric4 options
Ready-sized fibc bulk bag (big bag) presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this fibc bulk bag (big bag) yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
