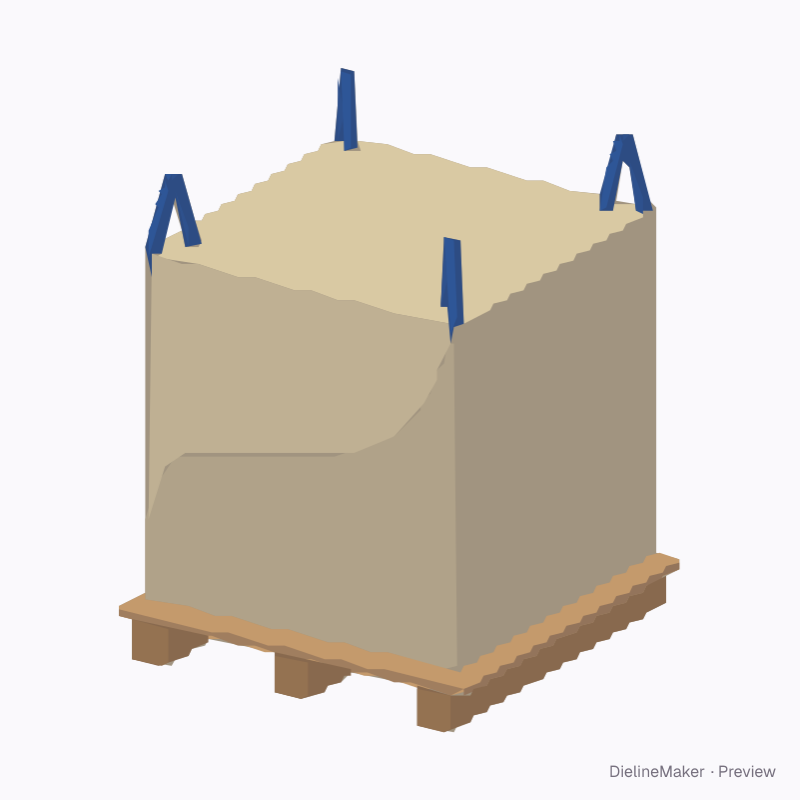

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FIBC-01Labels
Open-top bulk bag dieline
A woven bulk bag with four corner lifting loops, top fill spout or duffle top and optional discharge spout, on a pallet. Print the front and side panels. A ready-sized preset of the fibc bulk bag (big bag) — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside900 × 900 mm
Outside900 × 900 mm
Flat blank756 × 684 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FIBC-01
- Inside size
- Base width 900 · Body height 900 mm
- Size range
- Base width 500–1300 · Body height 500–2200 mm
- Manufacturing
- 900 × 900 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Front panel, Right side panel
- Board area
- 1.034 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Top3 options
- Bottom discharge spouton / off
- Palleton / off
- Fabric4 options
The fibc bulk bag (big bag) family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this open-top bulk bag yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
