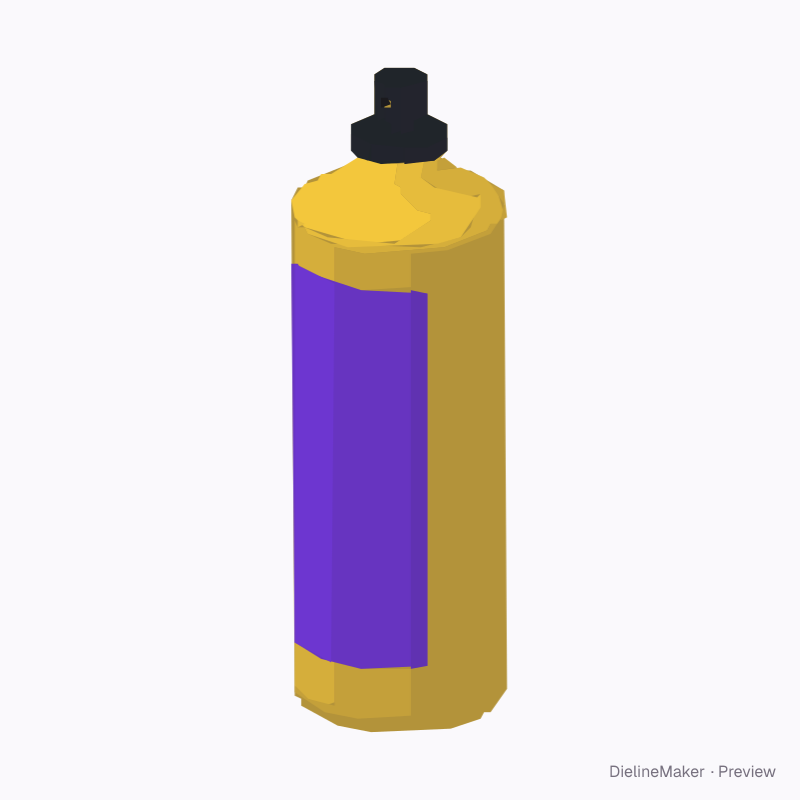

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Hair mist 150 ml label template
Fine-mist spray bottle with independently sized width and depth, shaped shoulders and a non-aerosol fine-mist actuator and clear protective overcap. Molded profiles support independent face recesses, with artwork that bridges the recesses, uses a smooth seat or follows their shape. Stepped rectangular bodies have broad upper and lower sections with separate labels on the narrower middle. A localized side waist narrows the side contours while retaining tall front and back labels. A long side handle leaves a real opening beside complementary notched labels. Export separate front and back labels, or one wrap label for compatible profiles; body dimensions are a visual starting point, not a mould drawing or certified capacity. A ready-sized preset of the fine-mist spray bottle — adjust the object dimensions and decoration area to preview your artwork at size.
Object size50 × 50 × 180 mm
Artwork area41 × 94.3 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Body width 50 · Body depth 50 · Overall height 180 mm
- Size range
- Body width 40–240 · Body depth 25–180 · Overall height 90–420 mm
- Parts
- 2 parts — Front label, Back label
- Artwork area
- 0.008 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 14 options; the template and 3D preview follow each change.
- Label width (0 = auto)mm
- Label height (0 = auto)mm
- Back labelon / off
- Body colour10 options
- Cap colour10 options
- Molded body profile8 options
- Bottle material3 options
- Blind grip recess3 options
- Molded side grip ribson / off
- Label seat insetmm
- Label construction2 options
- Label outline6 options
- Show overcapon / off
- Overcap shape9 options
The fine-mist spray bottle family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this hair mist 150 ml yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
