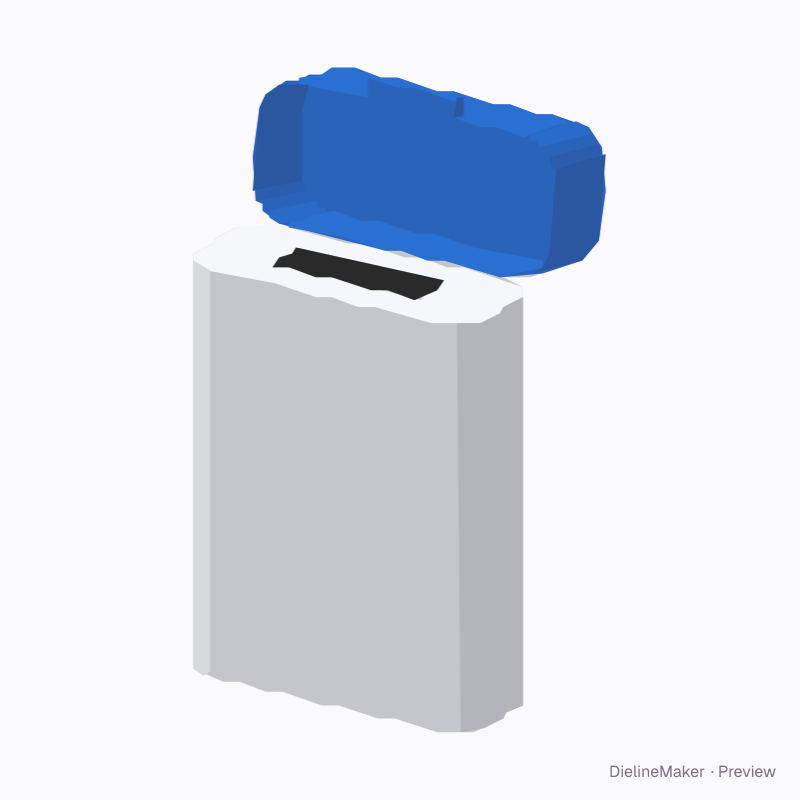

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FLIPDISP-01Labels
Pocket mint dispenser, open dieline
A small rounded-rectangle plastic or tin box with a broad flip-top lid and front lifting lip, for mints, gum and supplements. A ready-sized preset of the rectangular flip-top dispenser — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside45 × 18 × 70 mm
Outside45 × 18 × 70 mm
Flat blank116.7 × 53.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FLIPDISP-01
- Inside size
- Width 45 · Depth 18 · Height 70 mm
- Size range
- Width 25–120 · Depth 12–80 · Height 30–200 mm
- Manufacturing
- 45 × 18 × 70 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Body wrap, Lid top
- Board area
- 0.007 m² · about 96 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Lid open°
- Lid depth%
- Corner radius%
- Print2 options
- Material2 options
- Clear bodyon / off
- Body5 options
- Lid6 options
The rectangular flip-top dispenser family
The same structure with sizes, boards and options set for a use.

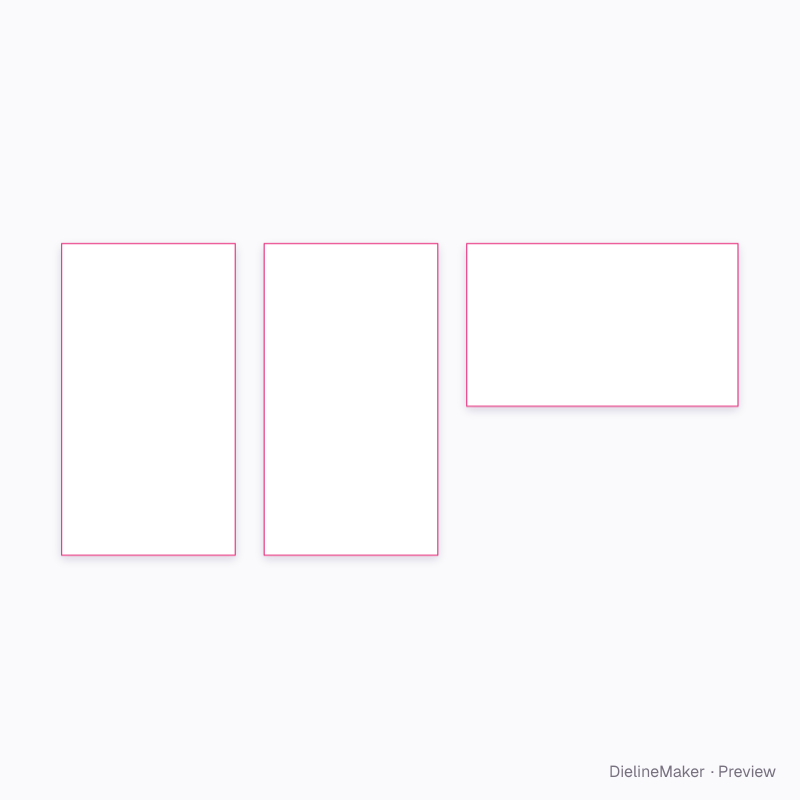

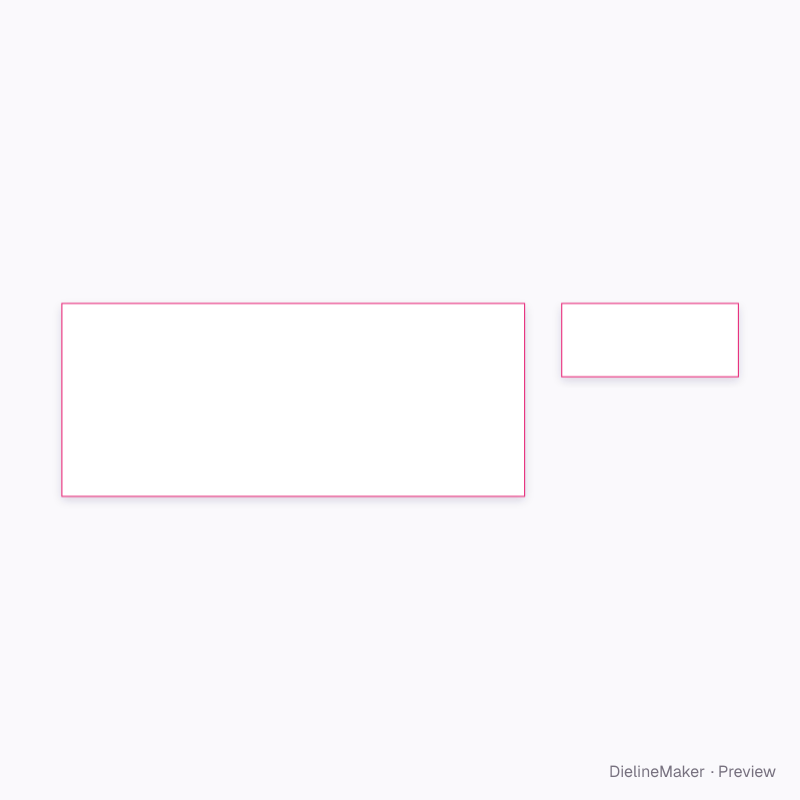

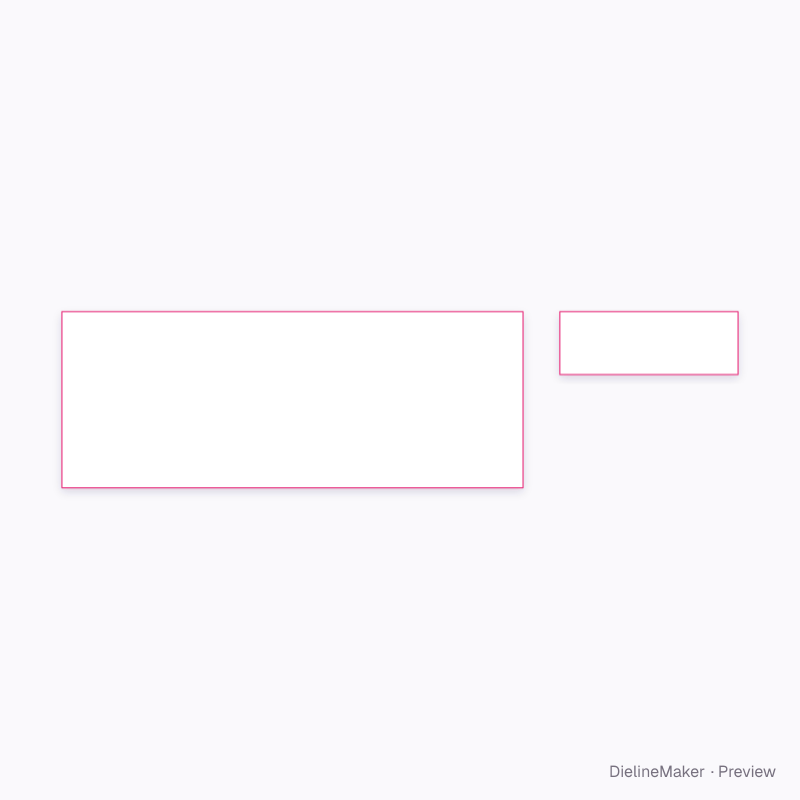

Preset
Preset
Preset

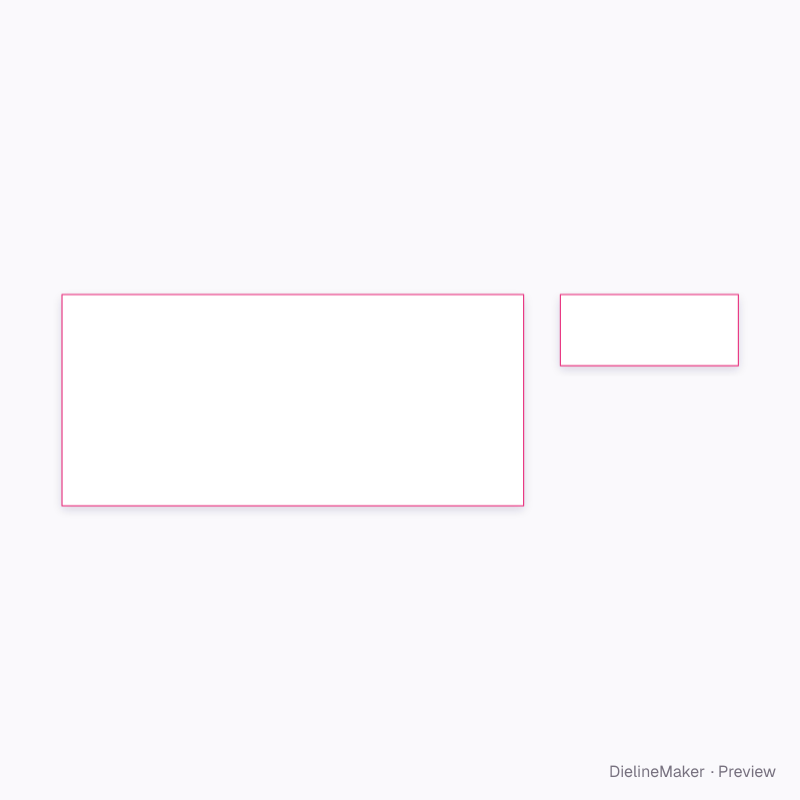

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this pocket mint dispenser, open yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
