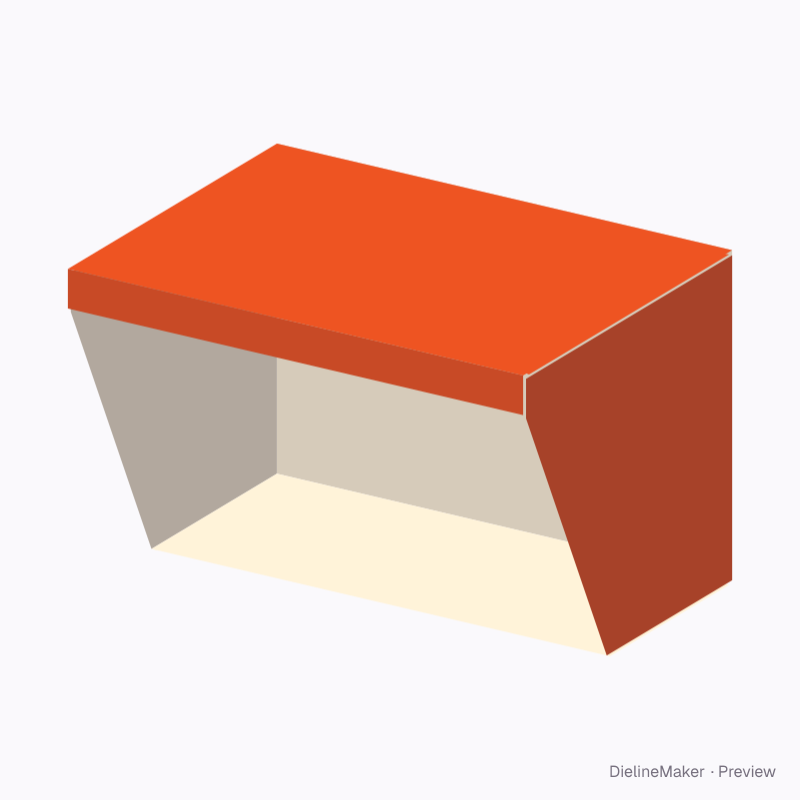

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PLATFORM-RISER-01Display
Folded platform riser dieline
One-blank counter risers: a high platform projecting forward on a back upright with sloping side braces, or a continuous stair strip between sloping cheeks. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 220 × 200 mm
Outside303.2 × 223.2 × 201.6 mm
Flat blank738.6 × 578.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PLATFORM-RISER-01
- Inside size
- Width 300 · Depth 220 · Height 200 mm
- Size range
- Width 80–1200 · Depth 60–800 · Height 60–1200 mm
- Manufacturing
- 301.6 × 221.6 × 200 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.259 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KB-fluteFBB 400
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-PLATFORM-RISER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back | 301.6 × 200 | L + T × H |
| Platform | 301.6 × 221.6 | L + T × W + T |
| Base | 301.6 × 133 | L + T × – |
| Left brace | 218.5 × 196.9 | – |
| Right brace | 218.5 × 196.9 | – |
| Front lip | 301.6 × 24 | L + T × – |
| Glue flap ×2 | 212.3 × 20 | – |
| Glue flap ×2 | 126.8 × 20 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Construction2 options
- Base depthmm
- Front lipmm

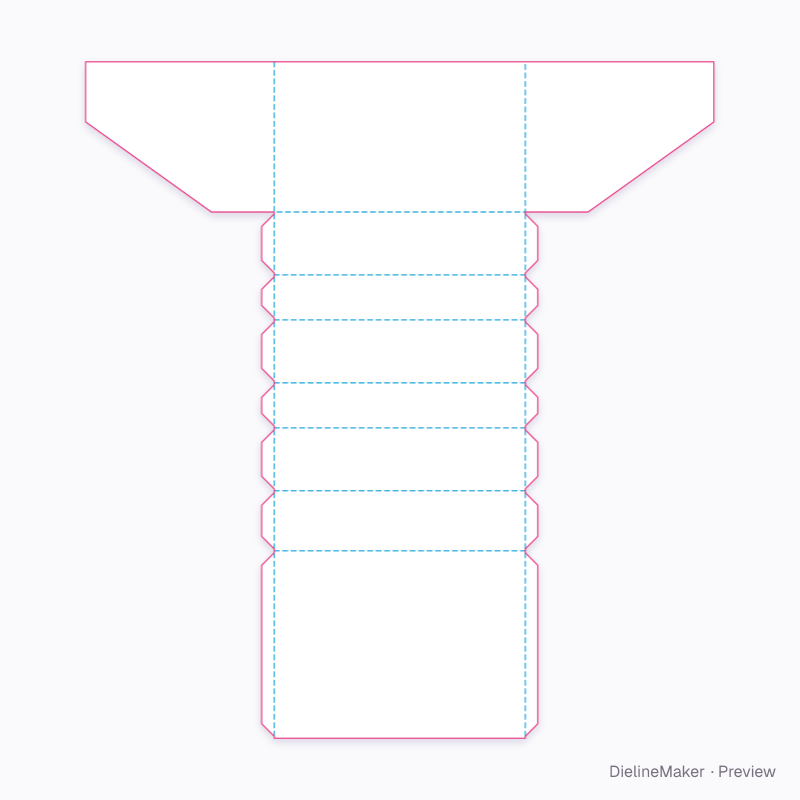

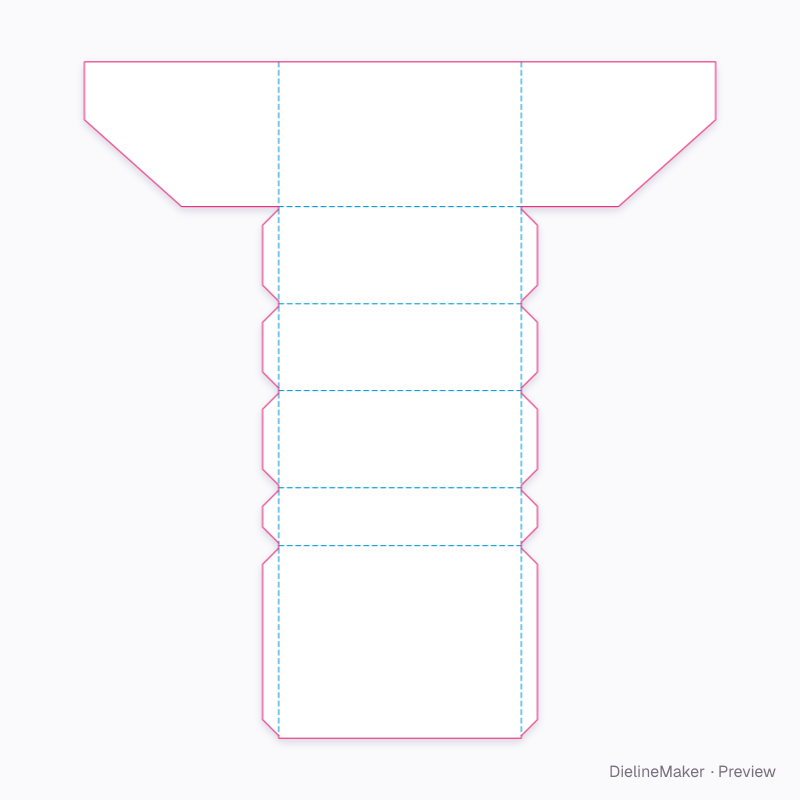

Ready-sized folded platform riser presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset

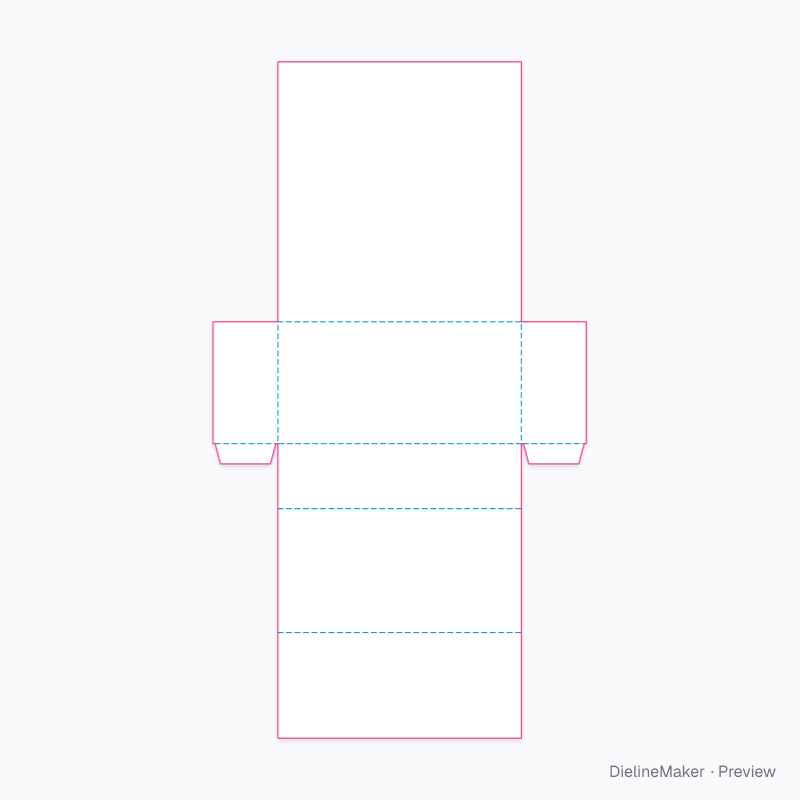

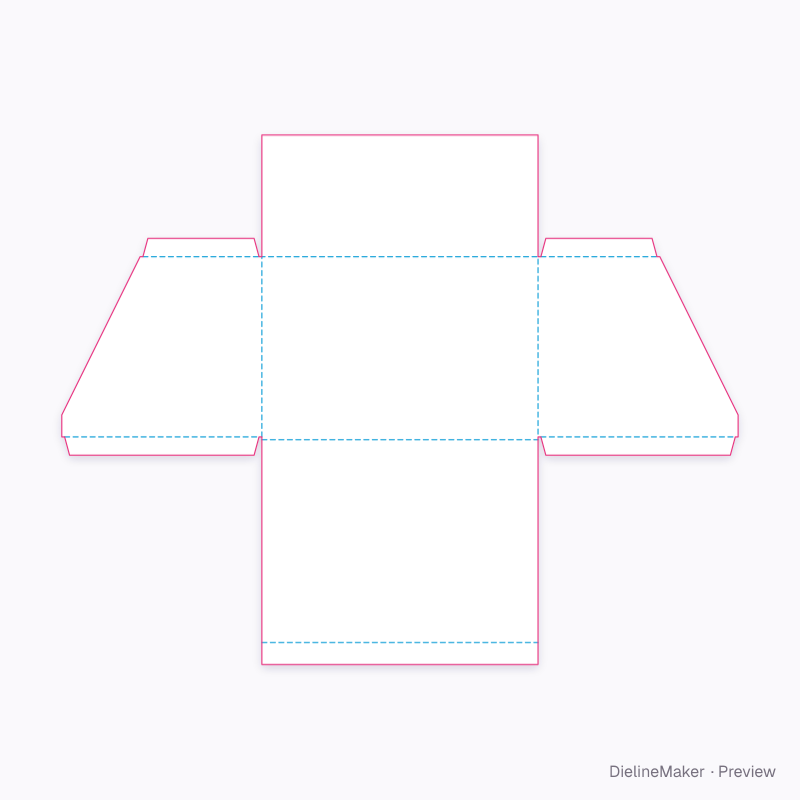

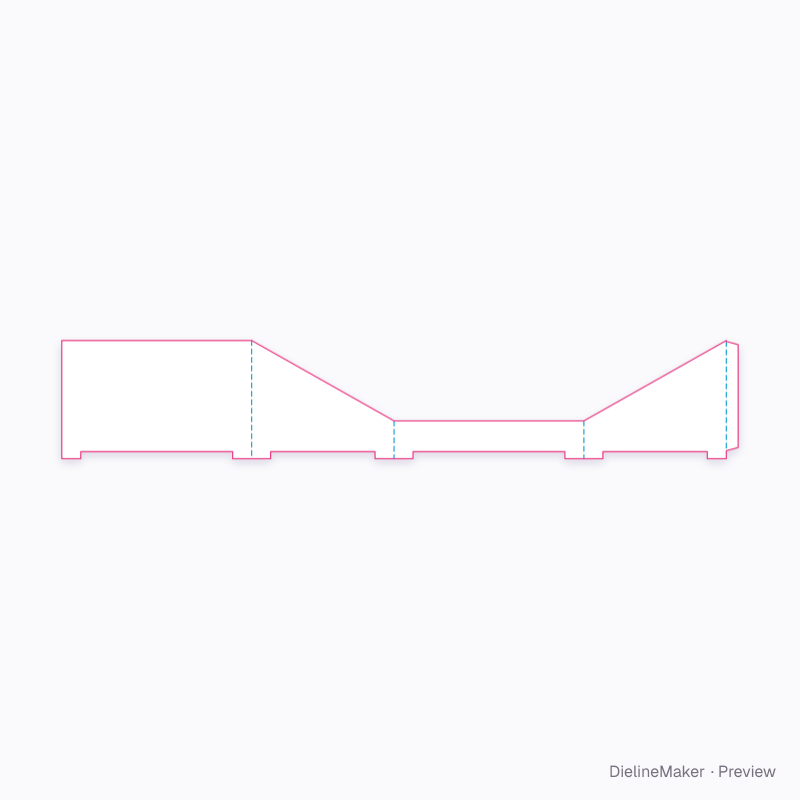

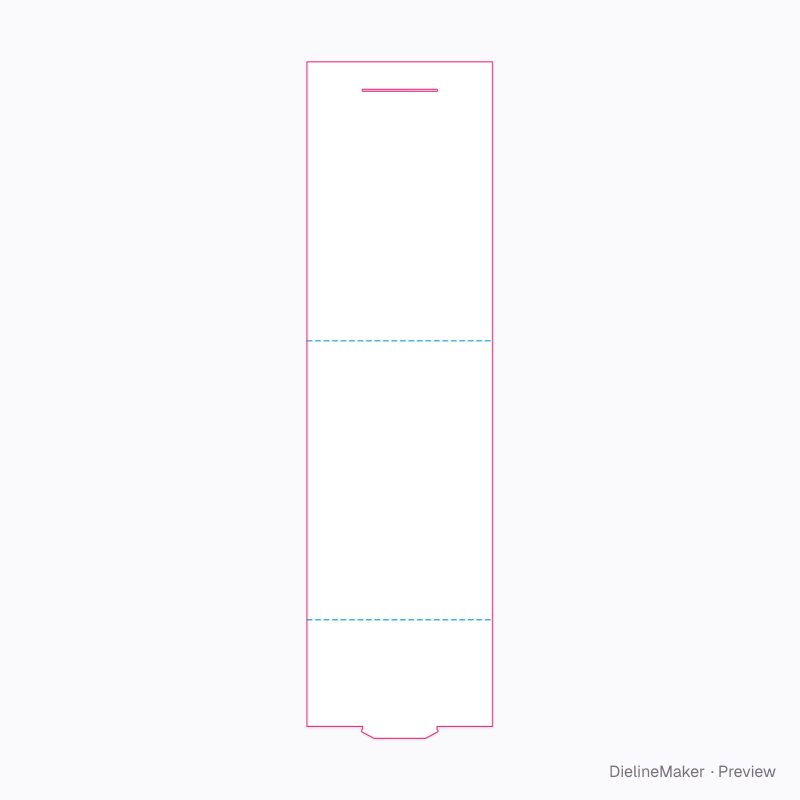

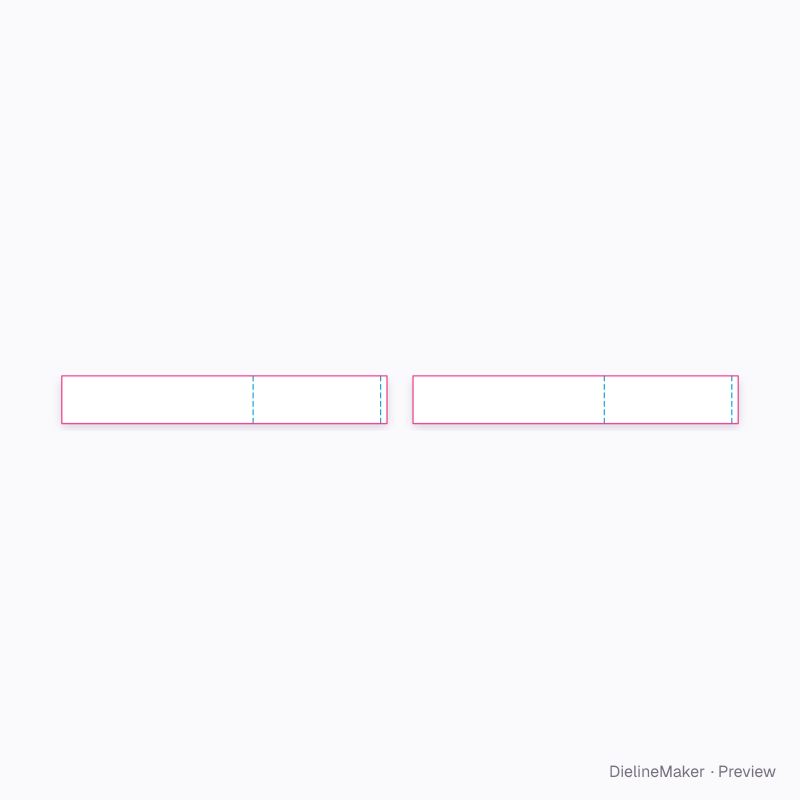

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this folded platform riser yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
