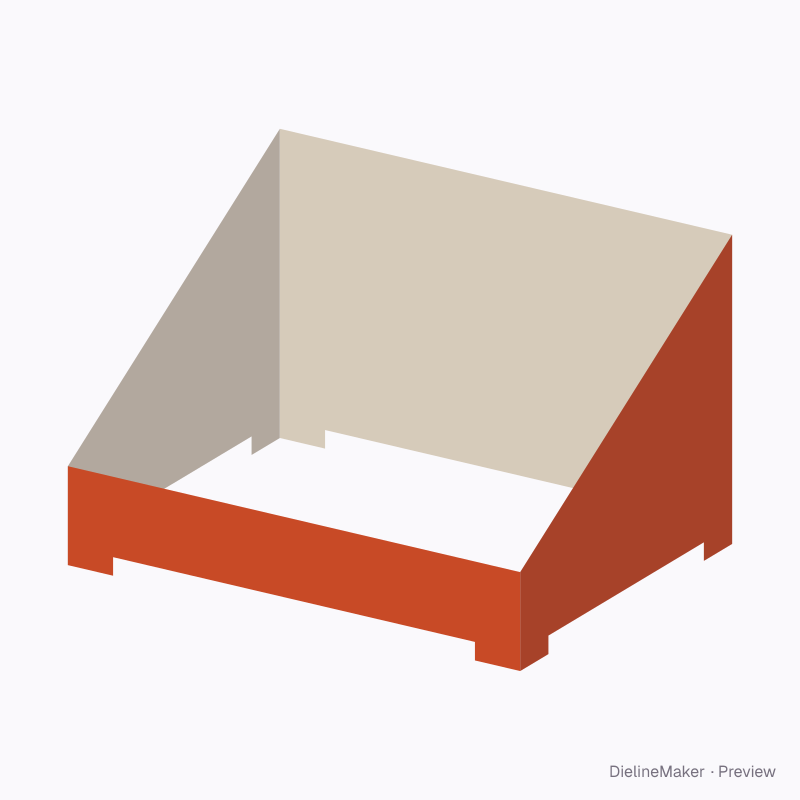

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FOOTED-PLINTH-01Display
Retail cutaway plinth 400×300×250 dieline
An open-bottom display shell with a deep sloped front cutaway and notched feet along its lower edges. A ready-sized preset of the footed cutaway display plinth — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 250 mm
Outside403.2 × 303.2 × 253.2 mm
Flat blank1425 × 250 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FOOTED-PLINTH-01
- Inside size
- Length 400 · Depth 300 · Back height 250 mm
- Size range
- Length 100–1000 · Depth 80–800 · Back height 60–800 mm
- Manufacturing
- 401.6 × 301.6 × 251.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.220 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WB-fluteE-flute KSBS 350SBS 18 pt
- Good for
The flat dieline

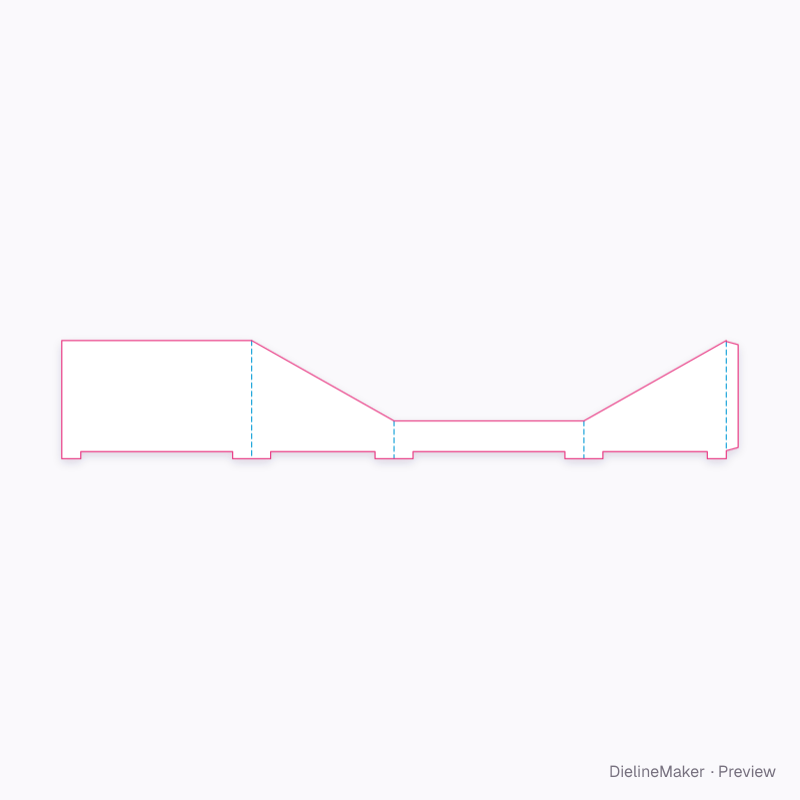

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-FOOTED-PLINTH-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back | 400 × 250 | L × H |
| Left side | 300 × 250 | W × H |
| Cut-away front | 400 × 80 | L × – |
| Right side | 300 × 80 | W × – |
| Glue flap | 25 × 231 | – |
