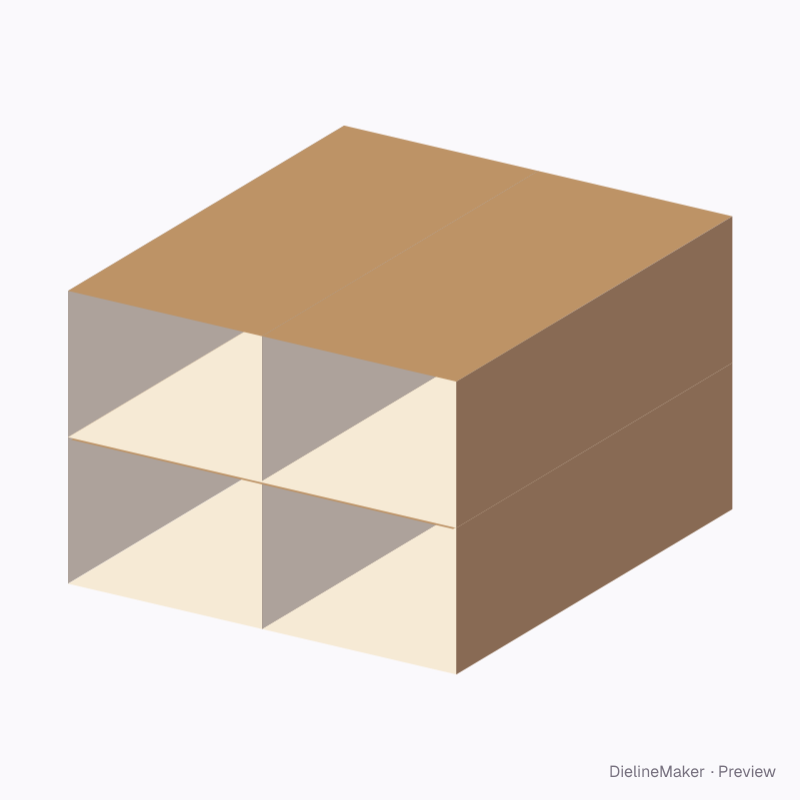

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-FOUR-CHANNEL-01Shipping
Four-channel insert dieline
One connected blank rolls into four open-ended rectangular channels in a 2 × 2 block. Integral return liners glue to two joined bases; no separate dividers are needed. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside122 × 140 × 84 mm
Outside123 × 140 × 85 mm
Flat blank536 × 280 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FOUR-CHANNEL-01
- Inside size
- Inside width (both columns) 122 · Open channel length 140 · Inside height (both rows) 84 mm
- Size range
- Inside width (both columns) 50–600 · Open channel length 40–600 · Inside height (both rows) 45–400 mm
- Manufacturing
- 123 × 140 × 85 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.150 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350F-fluteE-flute WE-flute KSBS 18 pt
- Good for

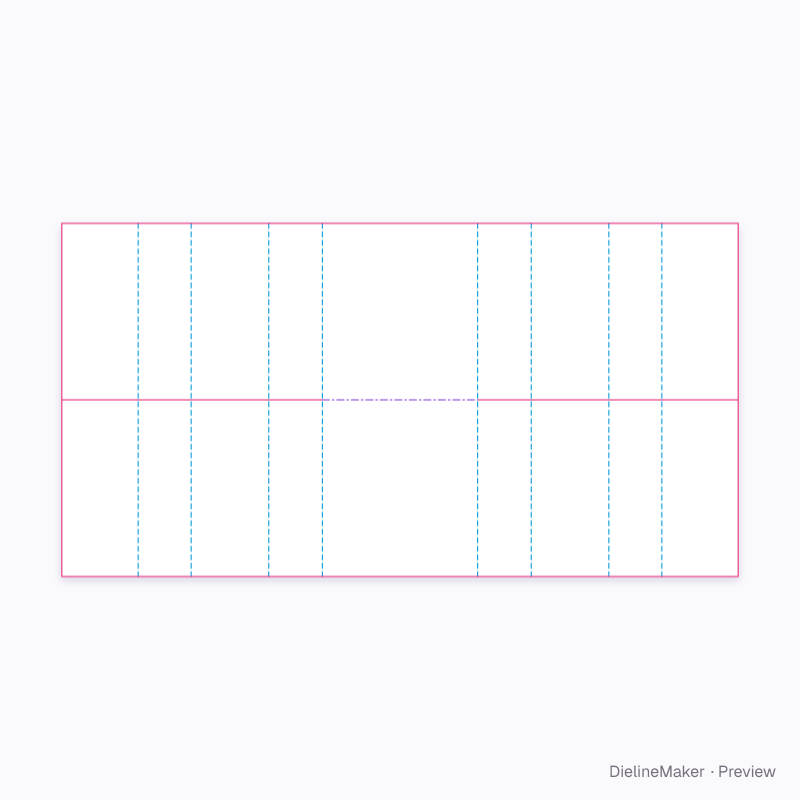

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-FOUR-CHANNEL-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Upper central base | 123 × 140 | L + 2T × W |
| Upper left outer wall | 42.5 × 140 | – × W |
| Upper left roof | 61.5 × 140 | – × W |
| Upper left centre divider | 42 × 140 | – × W |
| Upper left return liner | 60.5 × 140 | – × W |
| Upper right outer wall | 42.5 × 140 | – × W |
| Upper right roof | 61.5 × 140 | – × W |
| Upper right centre divider | 42 × 140 | – × W |
| Upper right return liner | 60.5 × 140 | – × W |
| Lower central base | 123 × 140 | L + 2T × W |
| Lower left outer wall | 42.5 × 140 | – × W |
| Lower left roof | 61.5 × 140 | – × W |
| Lower left centre divider | 42 × 140 | – × W |
| Lower left return liner | 60.5 × 140 | – × W |
| Lower right outer wall | 42.5 × 140 | – × W |
| Lower right roof | 61.5 × 140 | – × W |
2 more panels are listed in the editor’s structure step.
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this four-channel insert yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
