FEFCO 0901Shipping

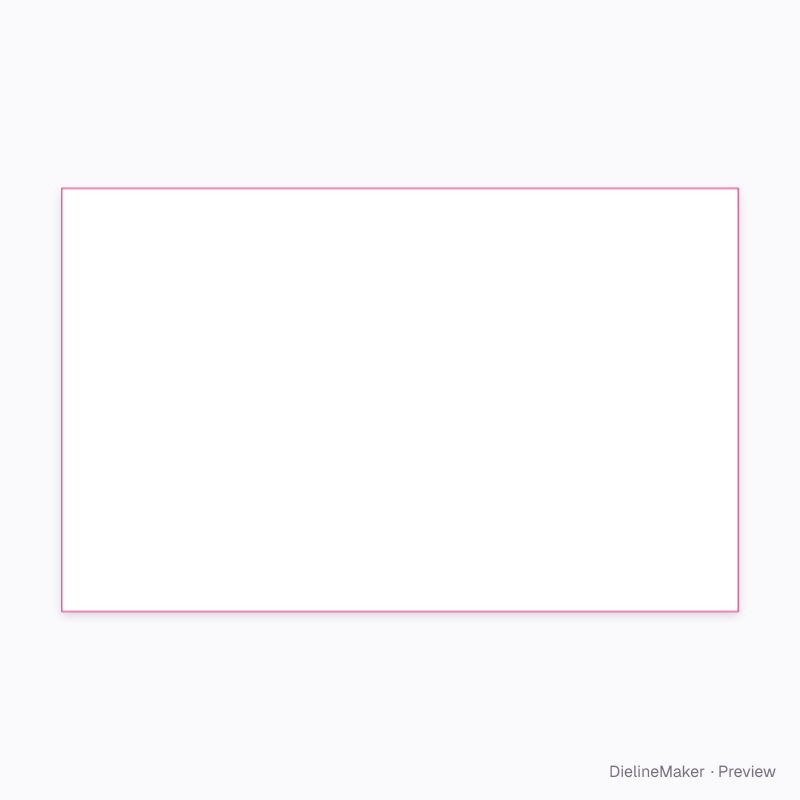

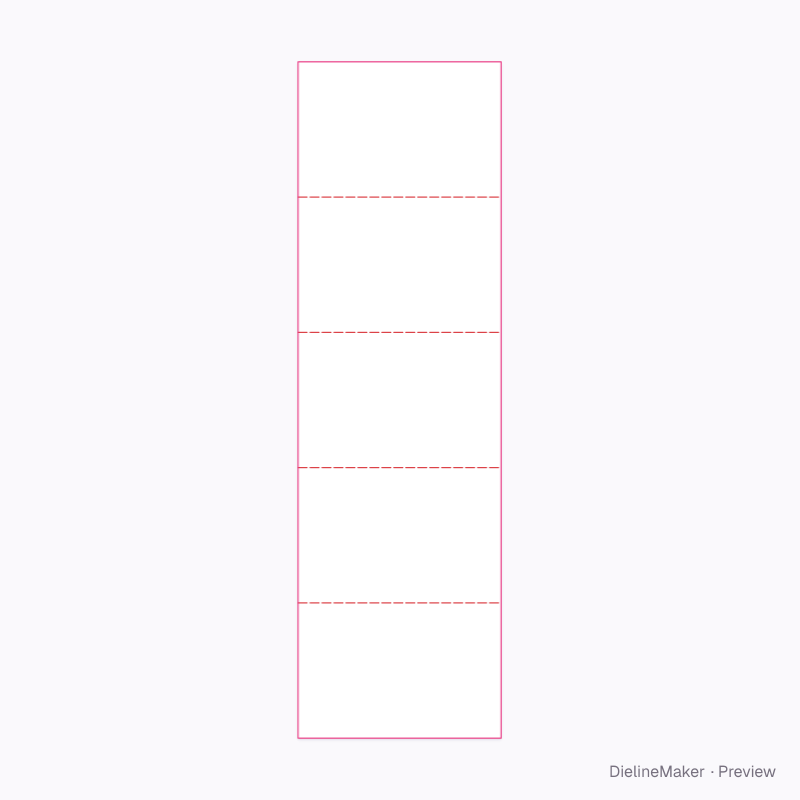

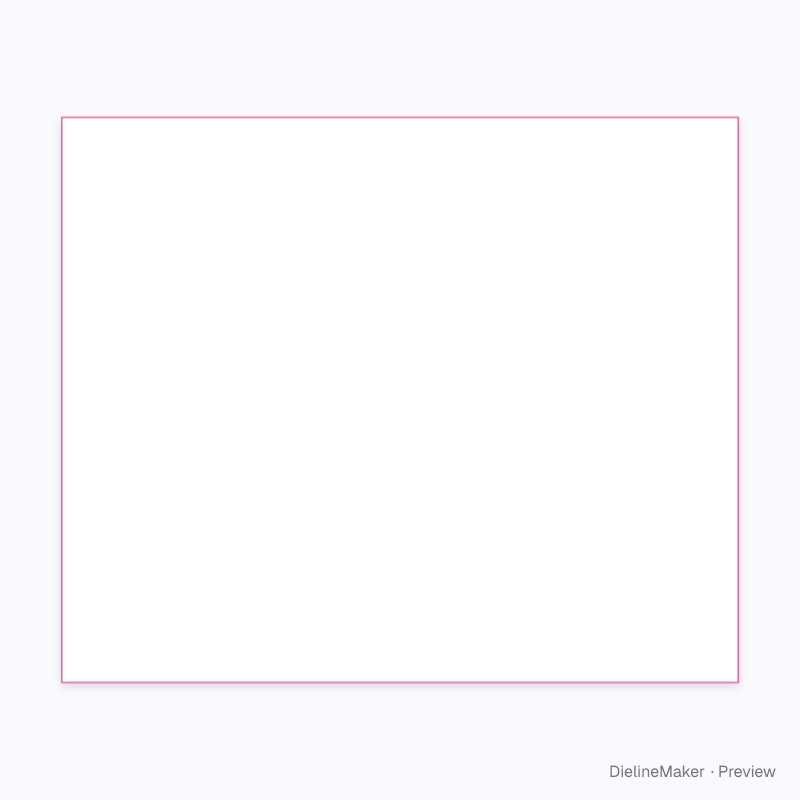

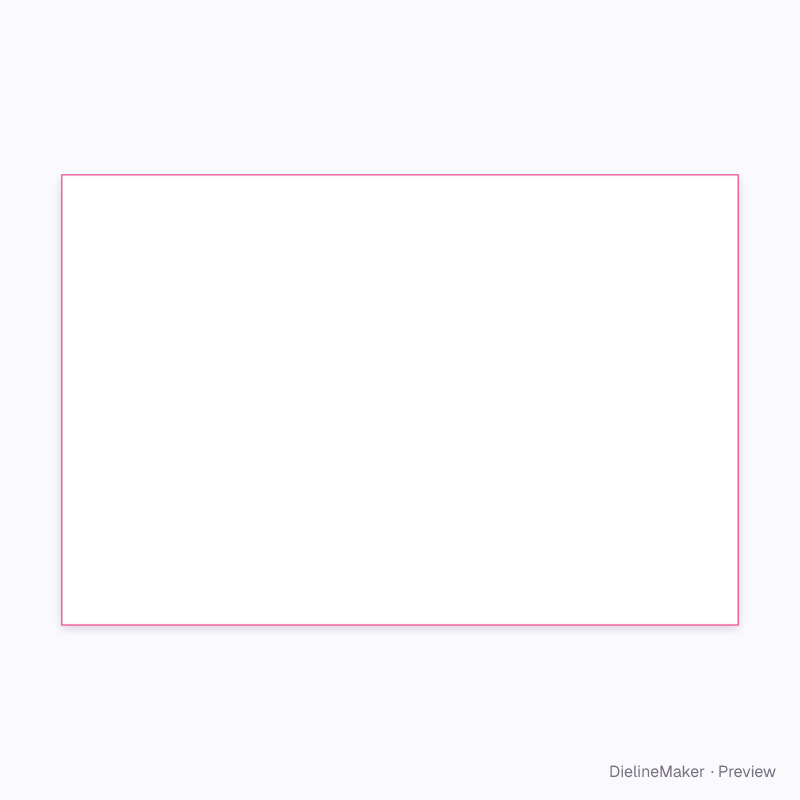

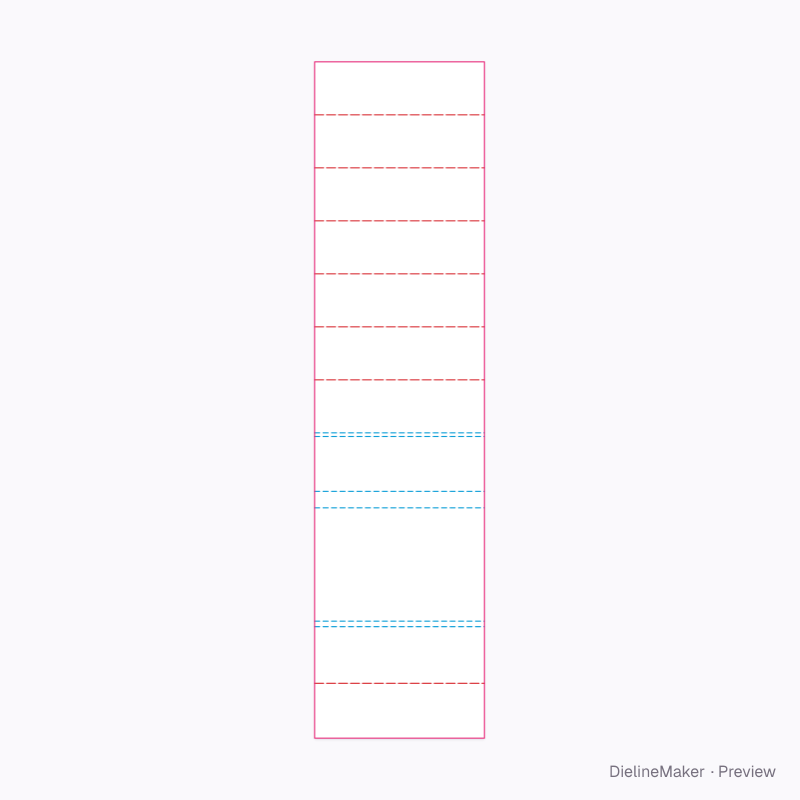

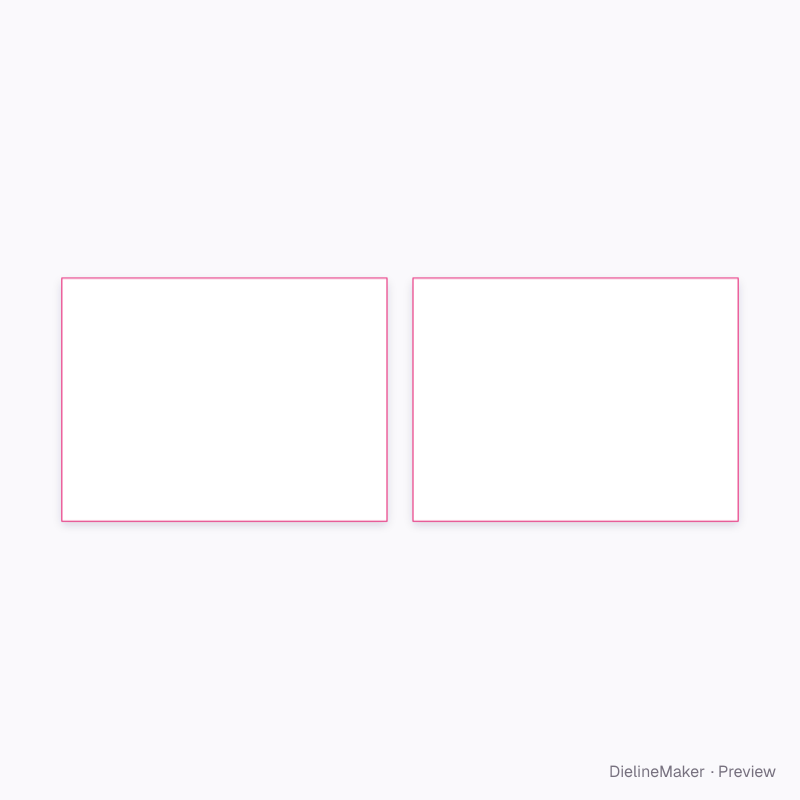

Interior pad dieline
Corrugated pads sized to the case they go in: top and bottom pads, a layer pad, upright pads across or along the case, and pads folded from one creased strip for extra cushioning. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside400 × 300 × 250 mm
Outside400 × 300 × 250 mm
Flat blank398 × 298 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0901
- Inside size
- Case inside length 400 · Case inside width 300 · Case inside height 250 mm
- Size range
- Case inside length 40–2000 · Case inside width 30–1500 · Case inside height 10–1500 mm
- Manufacturing
- 400 × 300 × 250 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.119 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB doubleF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Pad9 options
- Pliescount
Ready-sized interior pad presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this interior pad yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
