French / cross-fold brochure dieline
One sheet is halved, then halved at right angles to make four physical panels/eight print faces. Choose which direction folds first. The perpendicular scores retain all four connected quadrants; exports contain a complete uncut sheet with actual fold guides on both directions. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside148.5 × 105 mm
Outside148.5 × 105 mm
Flat blank297 × 210 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Quarter-fold finished width 148.5 · Quarter-fold finished height 105 mm
- Size range
- Quarter-fold finished width 45–350 · Quarter-fold finished height 60–350 mm
- Manufacturing
- 148.5 × 105 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.062 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 350SBS 18 pt
- Good for
The flat dieline

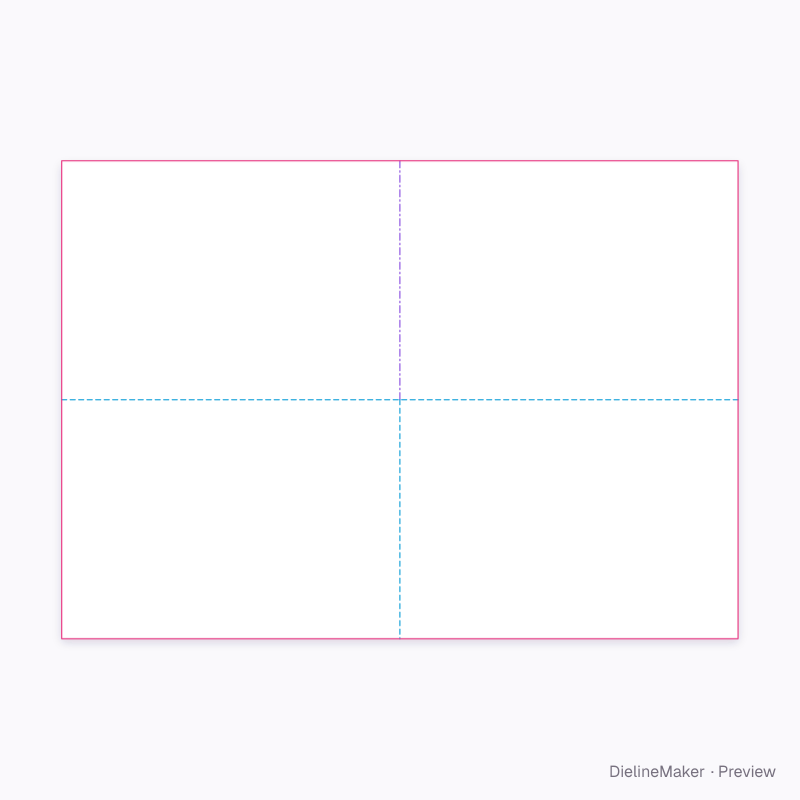

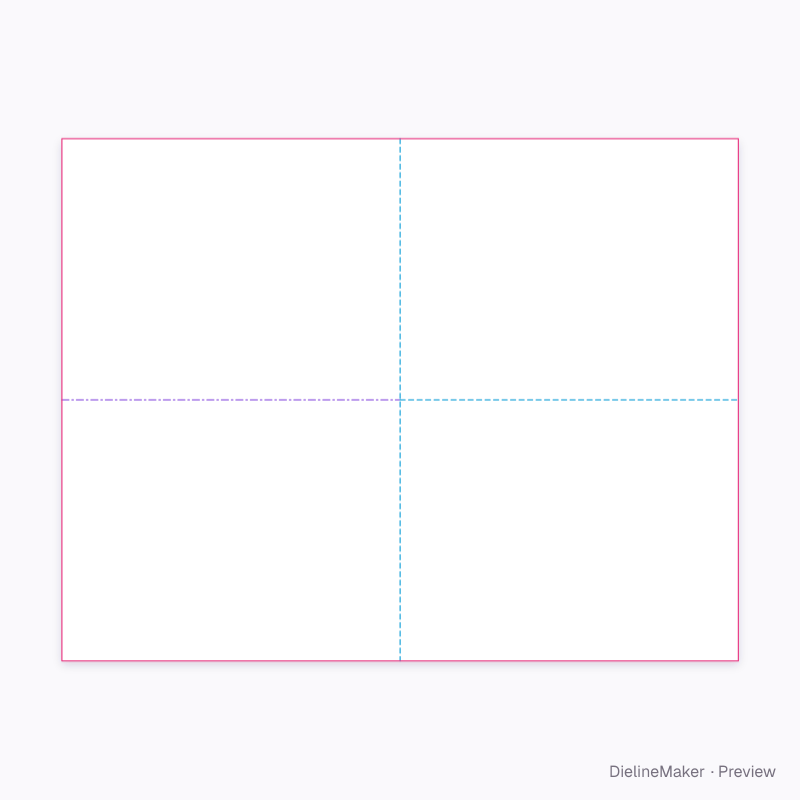

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front cover / lower right | 148.5 × 105 | L × H |
| Upper panel 2 | 148.5 × 105 | L × H |
| Lower panel 1 | 148.5 × 105 | L × H |
| Upper panel 1 | 148.5 × 105 | L × H |
