The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Window gift card holder dieline
The card’s art shows through a window in the cover. A ready-sized preset of the gift card holder — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside110 × 80 mm
Outside110 × 80 mm
Flat blank220 × 80 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 110 · Height 80 mm
- Size range
- Width 96–220 · Height 64–230 mm
- Manufacturing
- 110 × 80 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.018 m² · about 33 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 300SBS 18 pt
- Good for

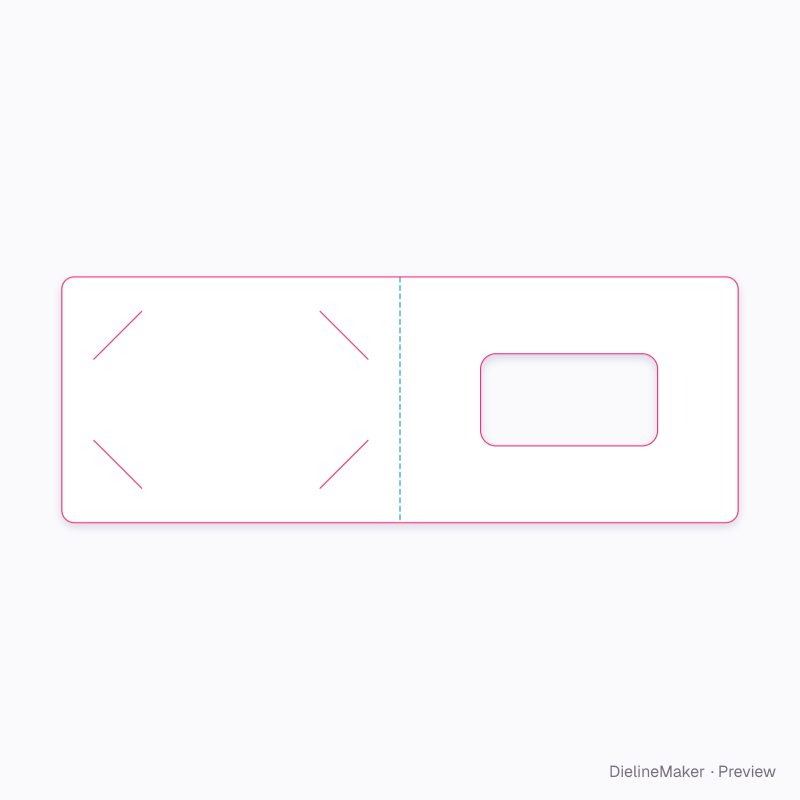

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Cover | 110 × 80 | W × H |
| Inside panel | 110 × 80 | W × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Card positionmm
- Cover windowon / off
- Corner radiusmm
The gift card holder family
The same structure with sizes, boards and options set for a use.

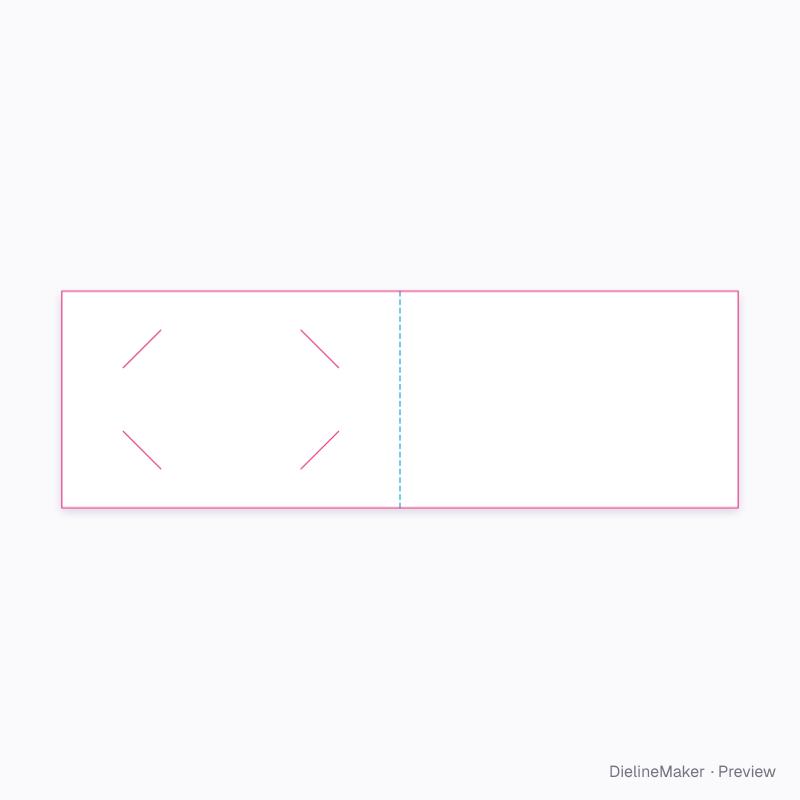

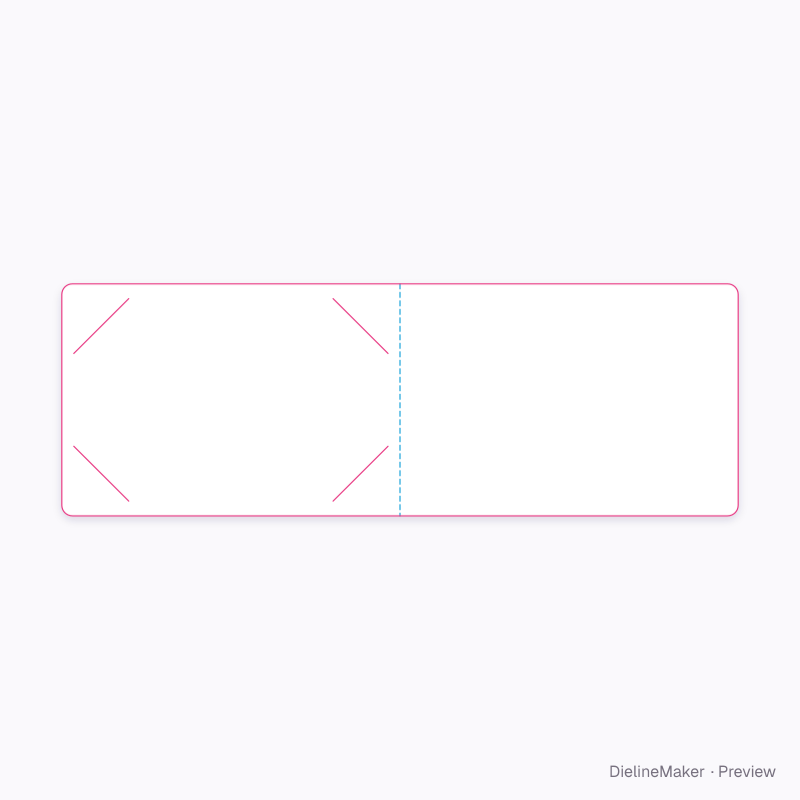

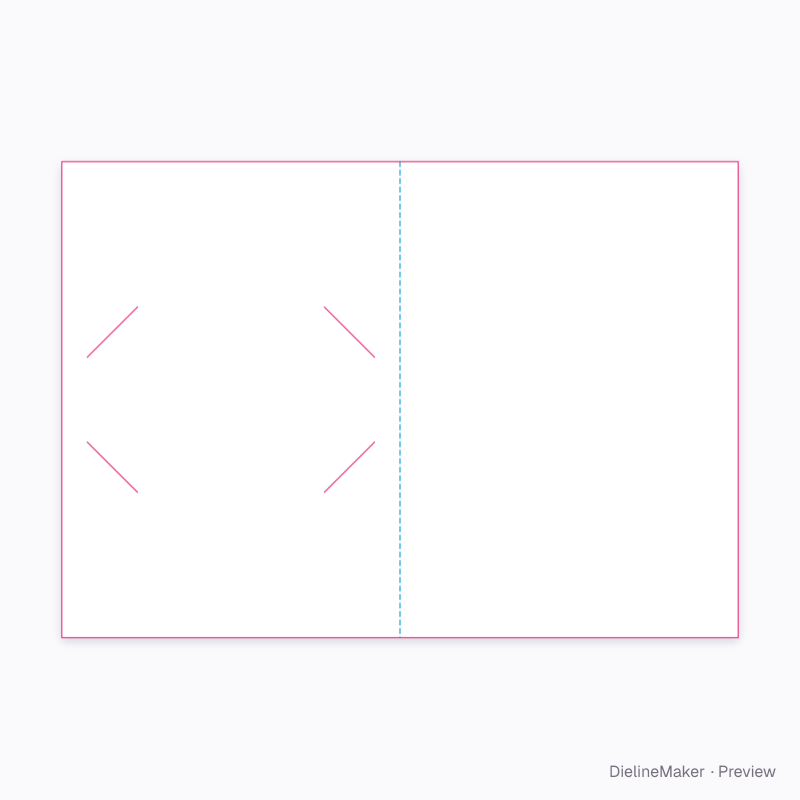

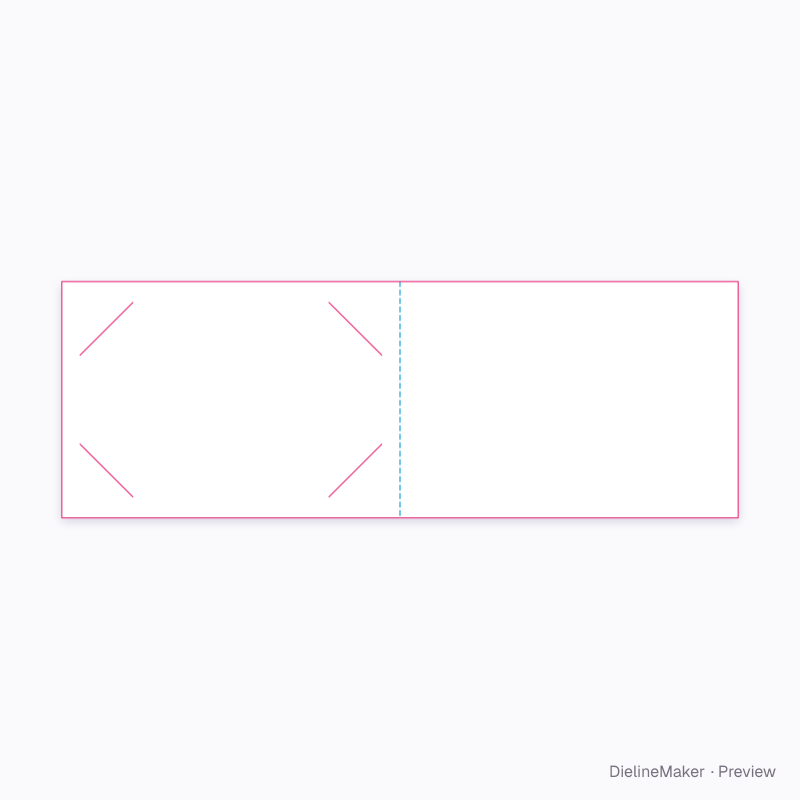

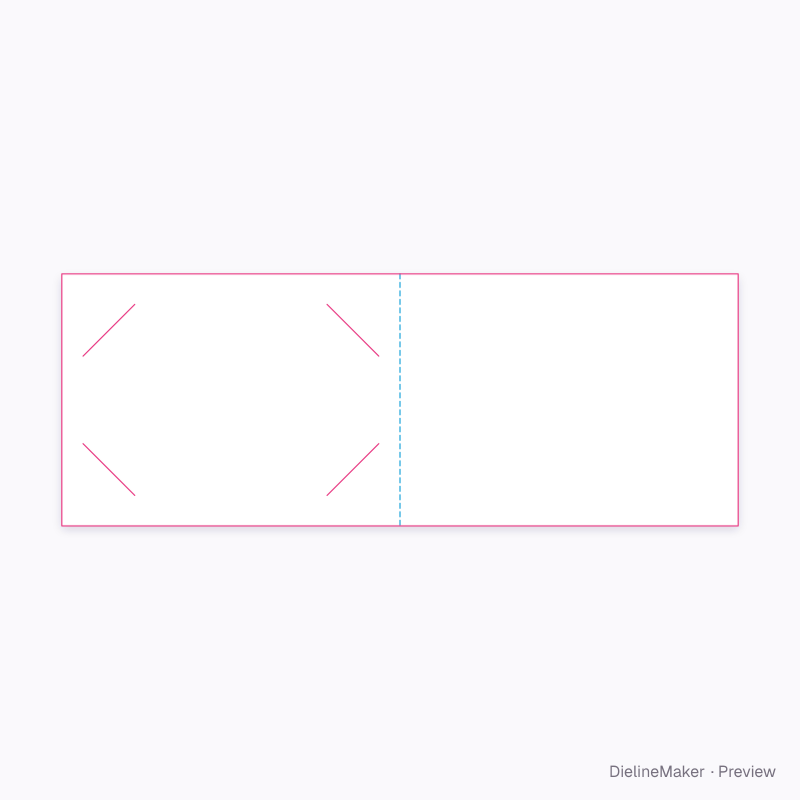

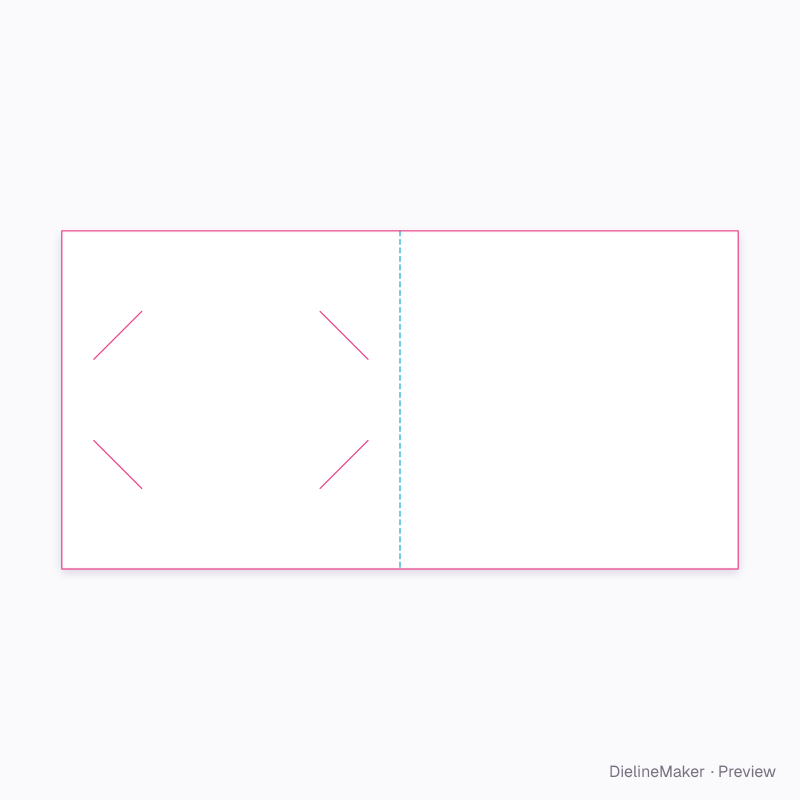

Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this window gift card holder yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
