DM-TEATIN-01Labels
Tea tin with handle, 100 g dieline

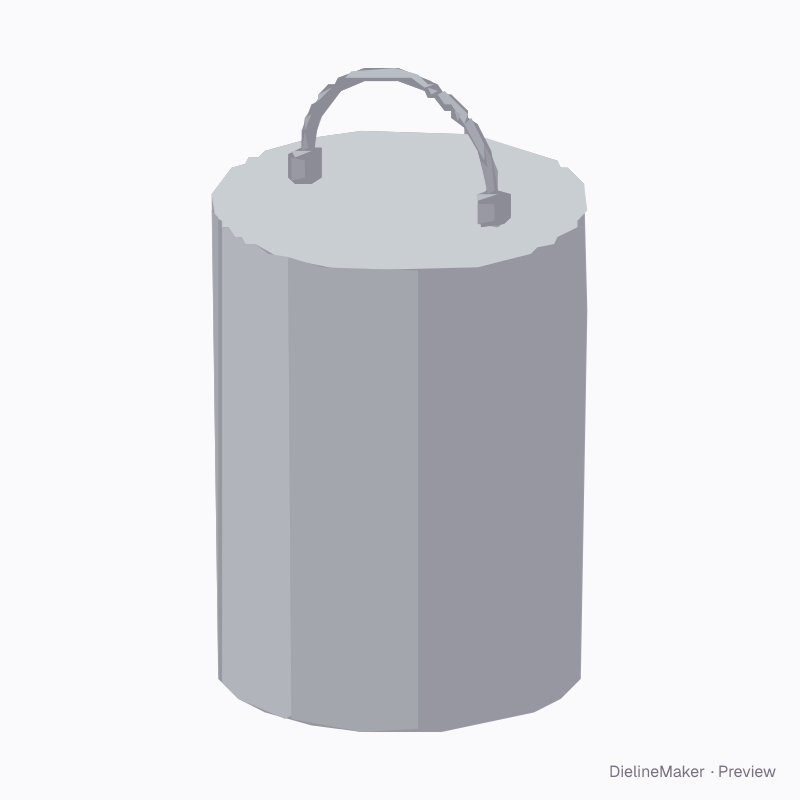

A round tea tin with a deep slip lid and an arched handle on the lid: wire bail or flat strap. Print the body wrap and the lid band. A ready-sized preset of the tea tin with lid handle — change its size and the cut outline, bleed and safe area are redrawn to match.
InsideØ 90 × 120 mm
OutsideØ 90 × 120 mm
Flat blank282.7 × 87.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TEATIN-01
- Inside size
- Diameter 90 · Body height 120 mm
- Size range
- Diameter 50–200 · Body height 50–250 mm
- Manufacturing
- Ø 90 × 120 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Body wrap (below the lid), Lid band
- Board area
- 0.031 m² · about 21 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
