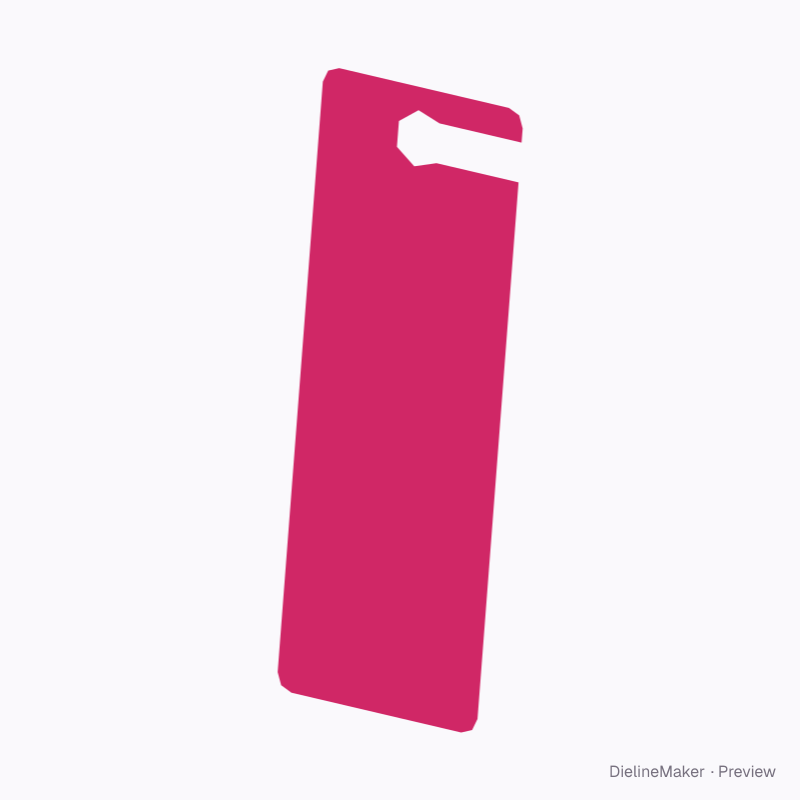

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-HOOK-MOUTH-01Cards & tags
Open-hook hang tag dieline
A narrow 40 × 110 mm tag whose 10 mm hole opens to the side, so it hooks onto a rail, bar or handle without string. A ready-sized preset of the hang tag — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside40 × 110 mm
Outside40 × 110 mm
Flat blank40 × 110 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-HOOK-MOUTH-01
- Inside size
- Width 40 · Height 110 mm
- Size range
- Width 20–150 · Height 30–250 mm
- Manufacturing
- 40 × 110 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.004 m² · about 132 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 300GD2 350PET 0.3SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Shape3 options
- Corner radiusmm
- String holeon / off
- Hole sizemm
- Hole from leftmm
- Hole from topmm
- Hanging aperture3 options
- Hook mouth widthmm
- Layers3 options
The hang tag family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this open-hook hang tag yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
