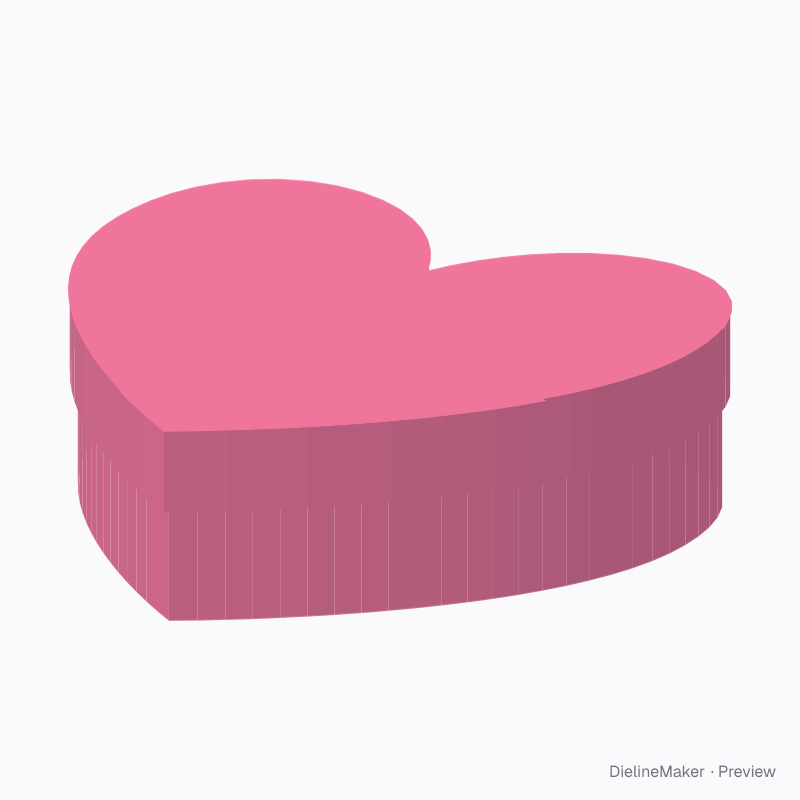

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Heart jewellery gift dieline
A heart-shaped paperboard gift box with a fitted lift-off lid. Separate curved wall strips have bonding tabs for the shaped base and lid caps. A ready-sized preset of the heart gift box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 85 × 28 mm
Outside93.2 × 88.2 × 29.3 mm
Flat blank303 × 35.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 90 · Length 85 · Height 28 mm
- Size range
- Width 70–350 · Length 60–350 · Height 20–140 mm
- Manufacturing
- 90.5 × 85.5 × 28.5 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Lid cap, Base wall strip, Base cap, Lid wall strip
- Board area
- 0.027 m² · about 51 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Gift box lidLid cap | 78.7 × 100 | – |
| Pose rigLid cap | 35 × 100 | – |
| Base wall ×2Base wall strip | 3.1 × 28.8 | – × H + 1.5T |
| Cap bonding tab ×2Base wall strip | 3.1 × 6.8 | – |
| Base wall ×6Base wall strip | 3.7 × 28.8 | – × H + 1.5T |
| Cap bonding tab ×6Base wall strip | 3.7 × 6.8 | – |
| Base wall ×8Base wall strip | 3.7 × 28.8 | – × H + 1.5T |
| Cap bonding tab ×8Base wall strip | 3.7 × 6.8 | – |
| Base wall ×10Base wall strip | 3.8 × 28.8 | – × H + 1.5T |
| Cap bonding tab ×10Base wall strip | 3.8 × 6.8 | – |
| Base wall ×8Base wall strip | 3.8 × 28.8 | – × H + 1.5T |
| Cap bonding tab ×8Base wall strip | 3.8 × 6.8 | – |
| Base wall ×4Base wall strip | 3.8 × 28.8 | – × H + 1.5T |
| Cap bonding tab ×4Base wall strip | 3.8 × 6.8 | – |
| Base wall ×2Base wall strip | 3.8 × 28.8 | – × H + 1.5T |
| Cap bonding tab ×2Base wall strip | 3.8 × 6.8 | – |
61 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Lid depthmm
- Heart profile2 options
- Inner and outer cap sheetson / off
The heart gift box family
The same structure with sizes, boards and options set for a use.

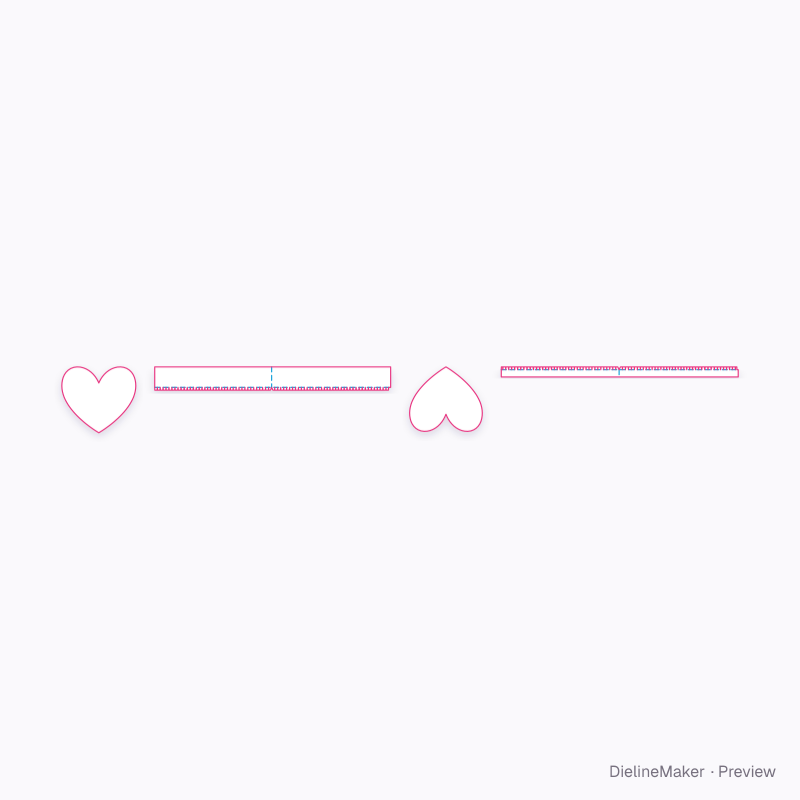

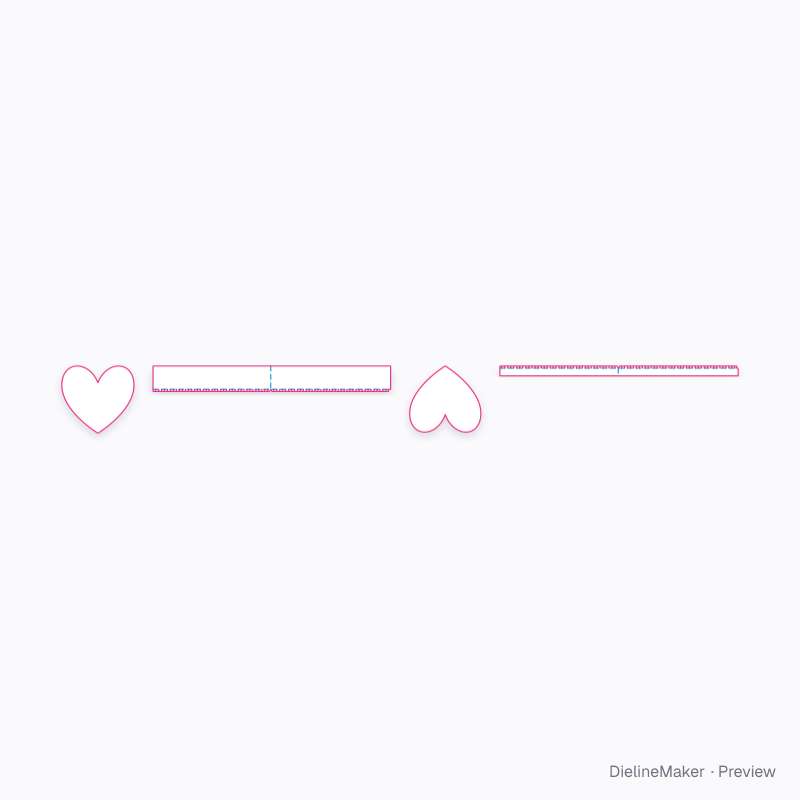

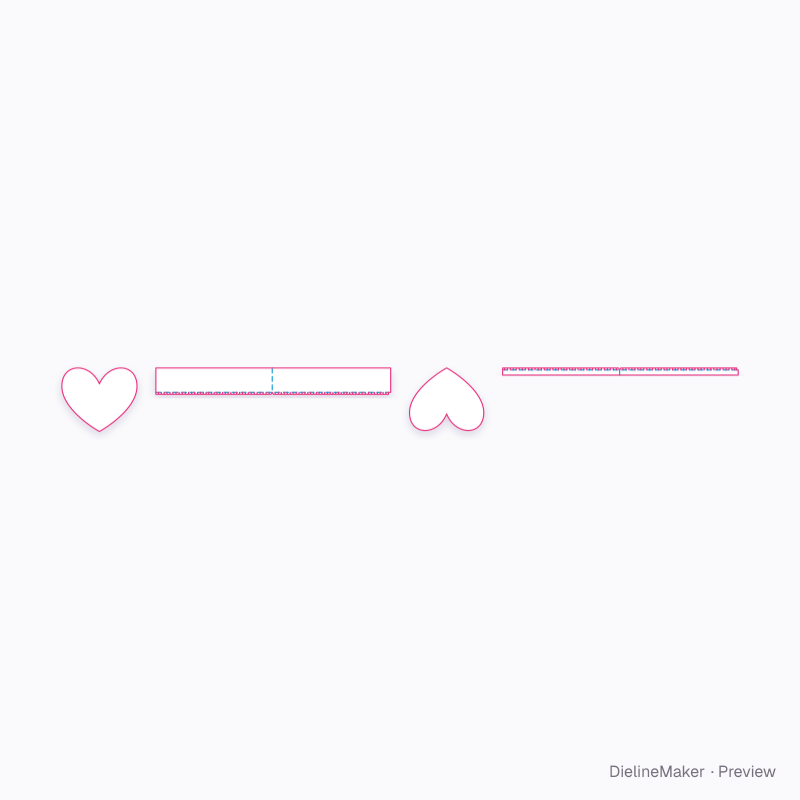

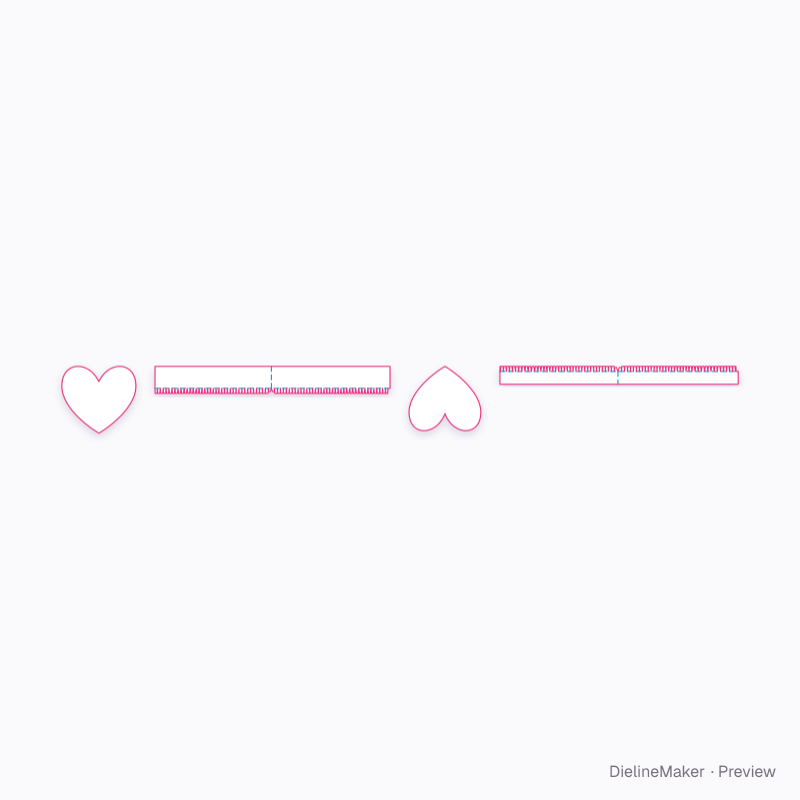

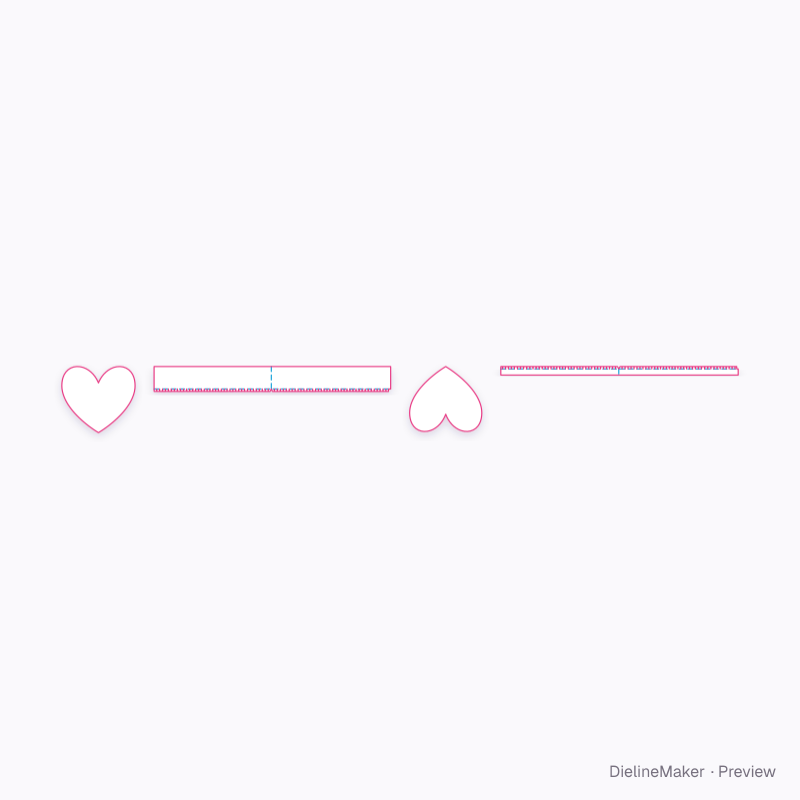

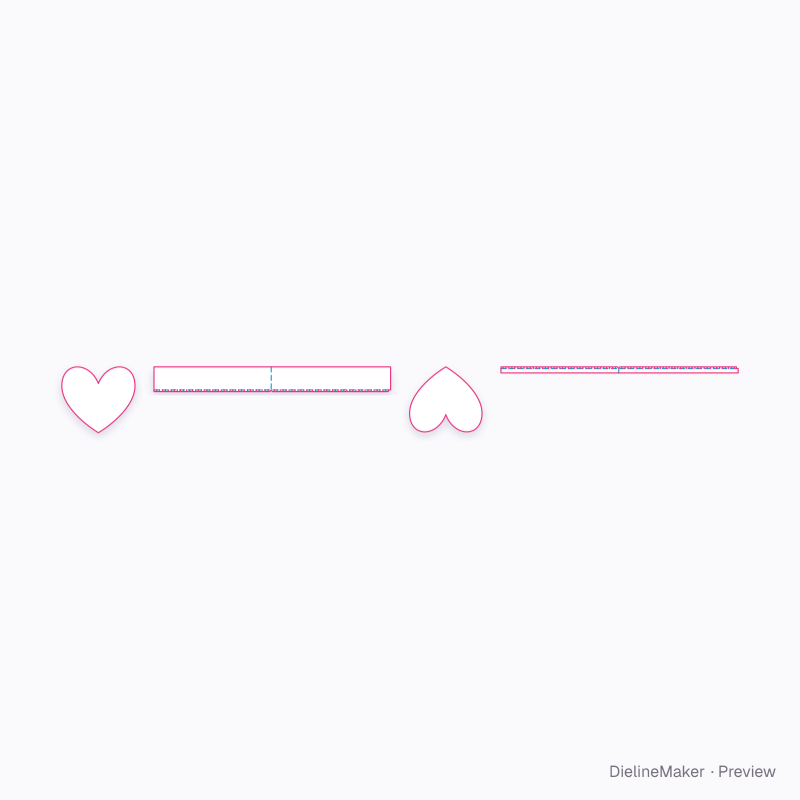

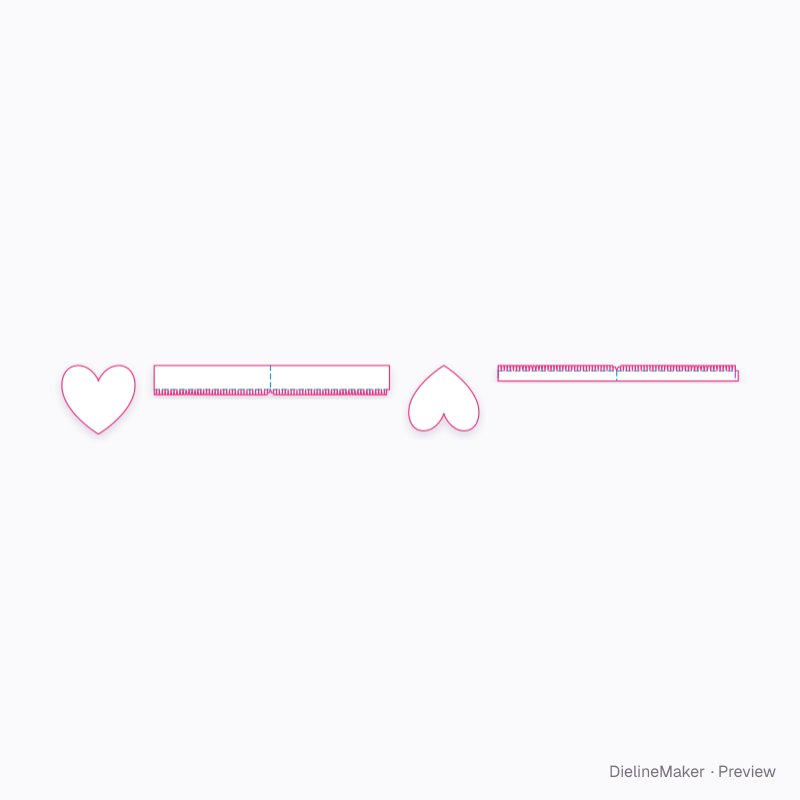

Preset
