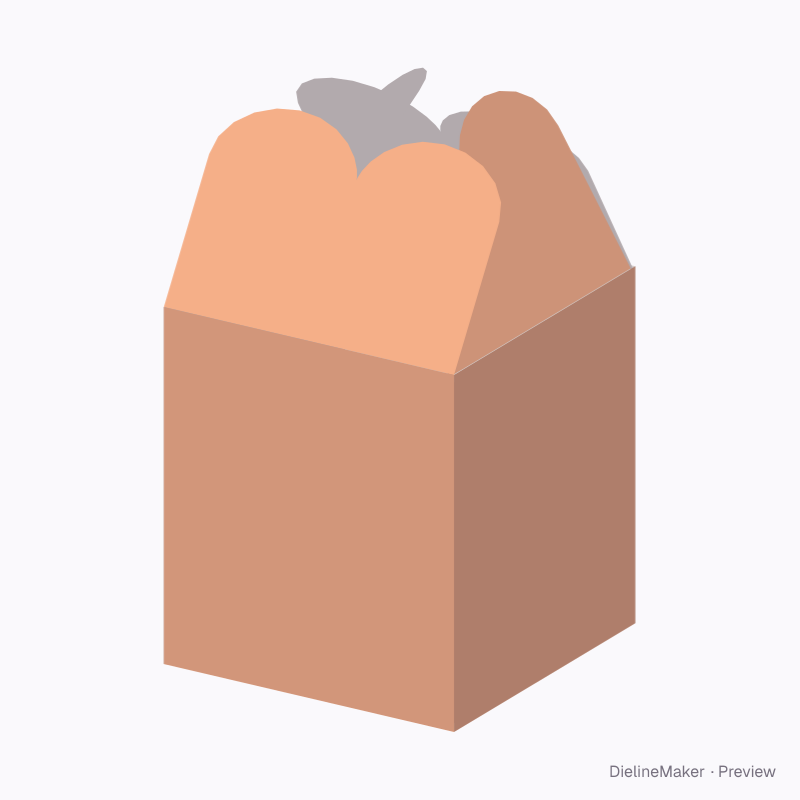

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-HEART-PETAL-ROOF-01Tuck end
Heart-petal roof carton dieline
A square carton whose four walls rise into heart-shaped petals that slot together over the top. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside80 × 90 mm
Outside81 × 91 mm
Flat blank332 × 222.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-HEART-PETAL-ROOF-01
- Inside size
- Width 80 · Wall height 90 mm
- Size range
- Width 40–250 · Wall height 30–300 mm
- Manufacturing
- 80.5 × 90.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.053 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 300SBS 18 pt
- Good for

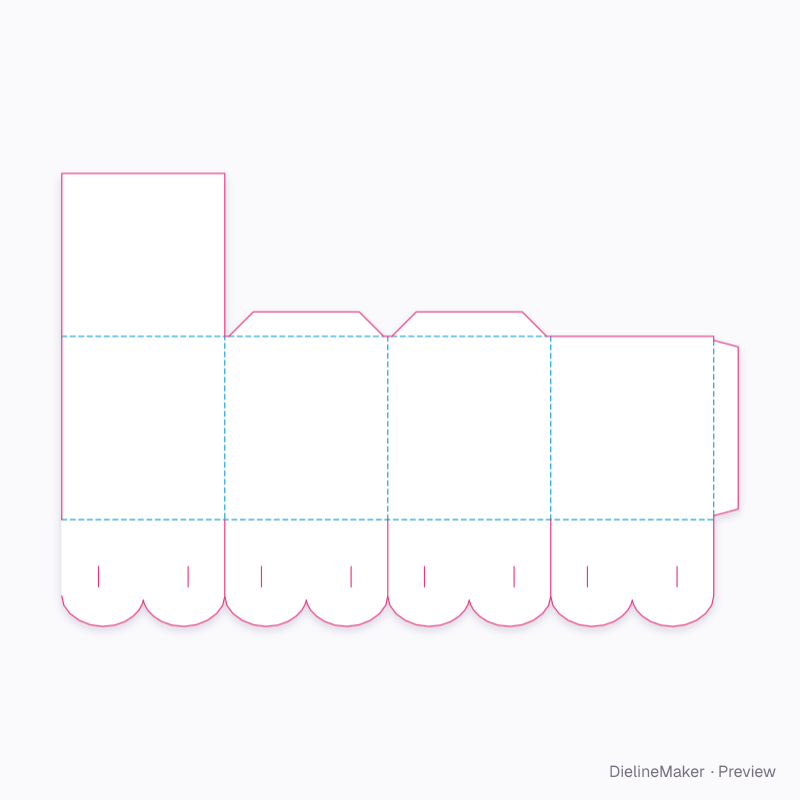

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-HEART-PETAL-ROOF-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Wall ×4 | 80 × 90 | L × H |
| Heart petal ×4 | 80 × 52.4 | L × – |
| Base | 80 × 80 | L × L |
| Glue flap ×2 | 76 × 12 | – |
| Glue flap | 12 × 86 | – |
