ECMA A55.20.01.03Tuck end
Snap-lock bottom dieline
A bottom you close by hand in three moves — sides, back flap, then the front tongue snaps in. Holds more weight than a tuck, with no pre-gluing. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 70 × 110 mm
Outside91 × 71 × 111 mm
Flat blank333.5 × 240.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A55.20.01.03
- Inside size
- Length 90 · Width 70 · Height 110 mm
- Size range
- Length 30–400 · Width 20–300 · Height 30–500 mm
- Manufacturing
- 90.5 × 70.5 × 110.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.059 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350Black 350F-fluteE-flute WE-flute KSBS 18 pt

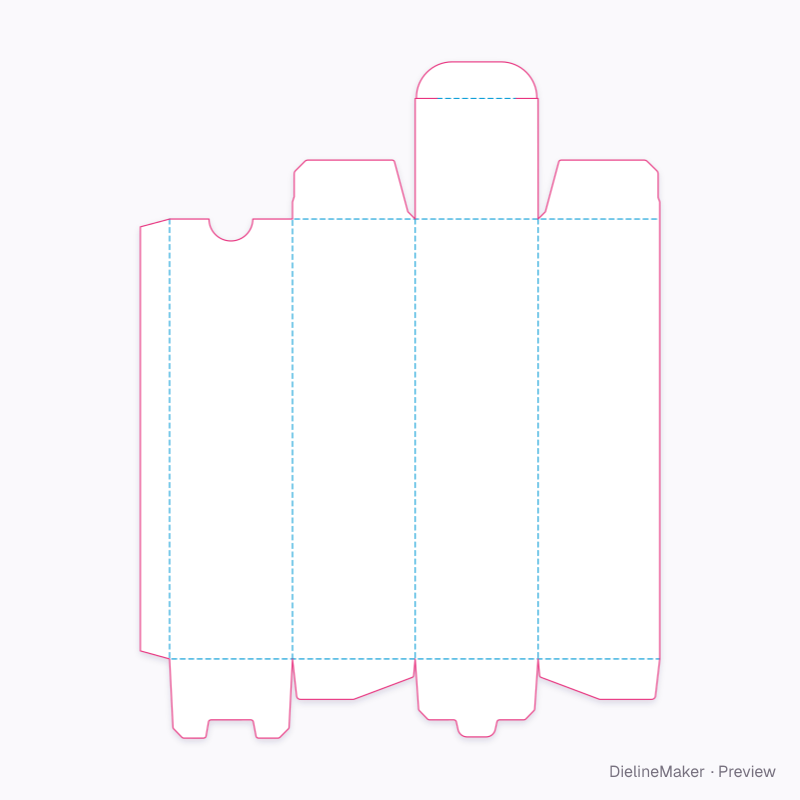

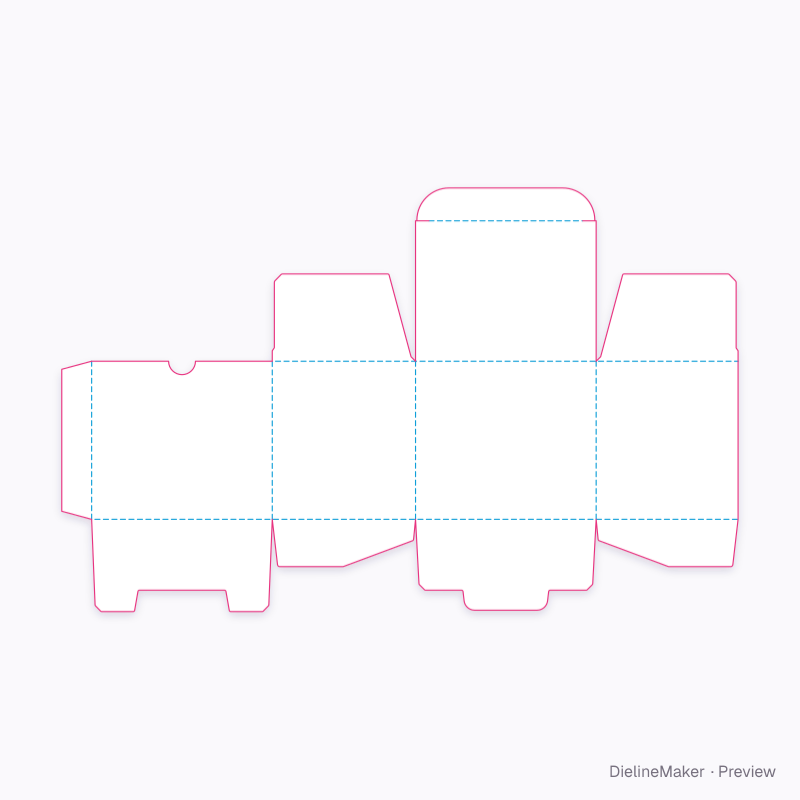

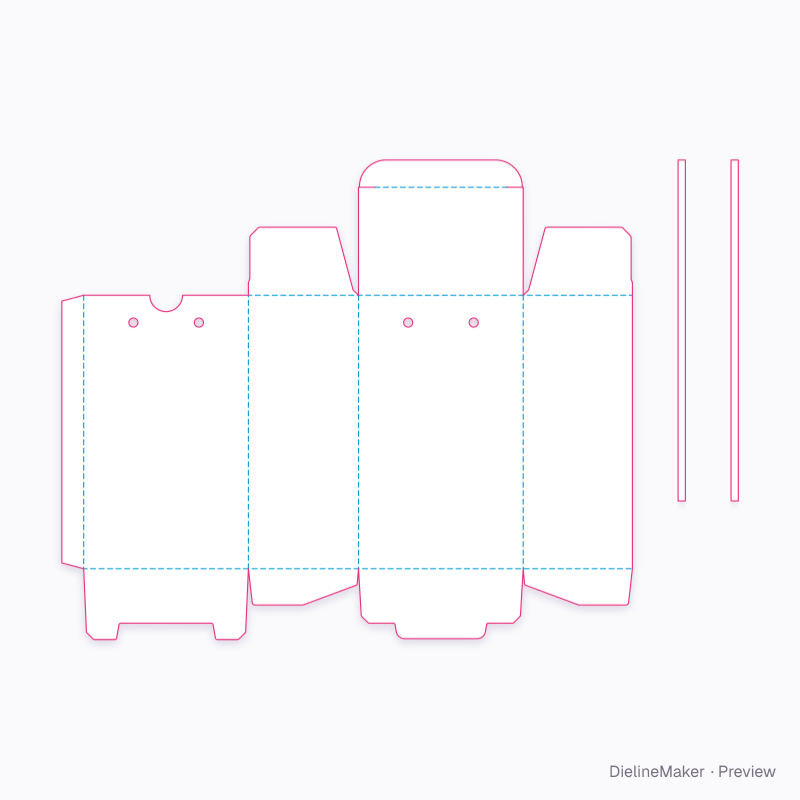

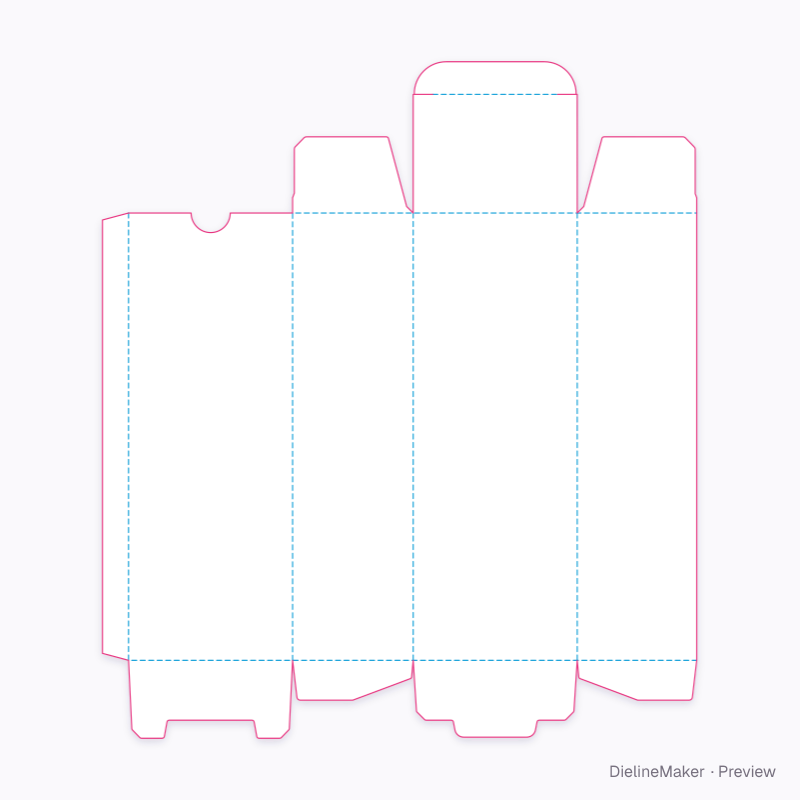

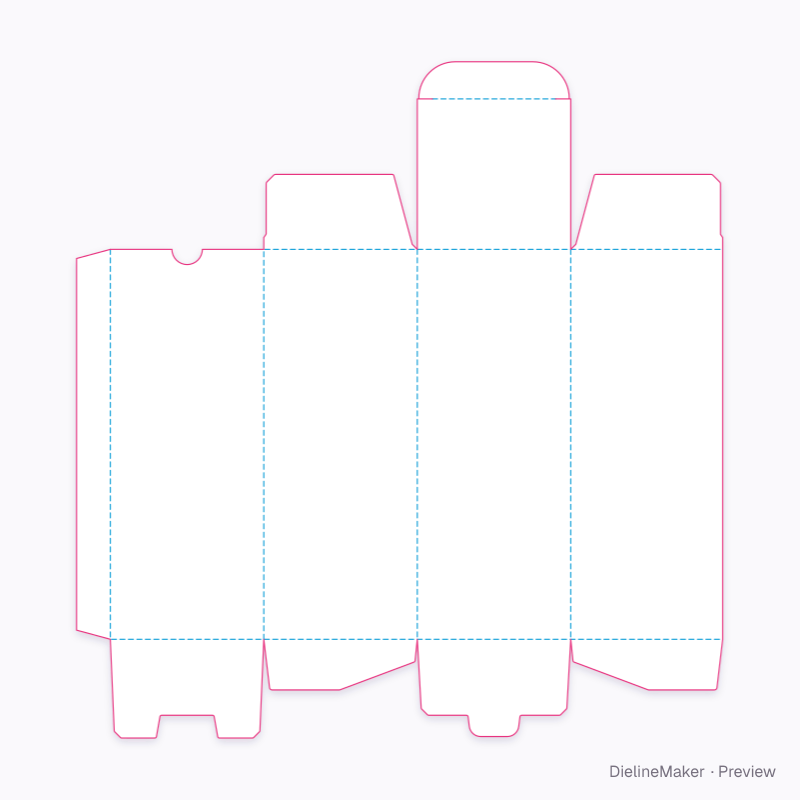

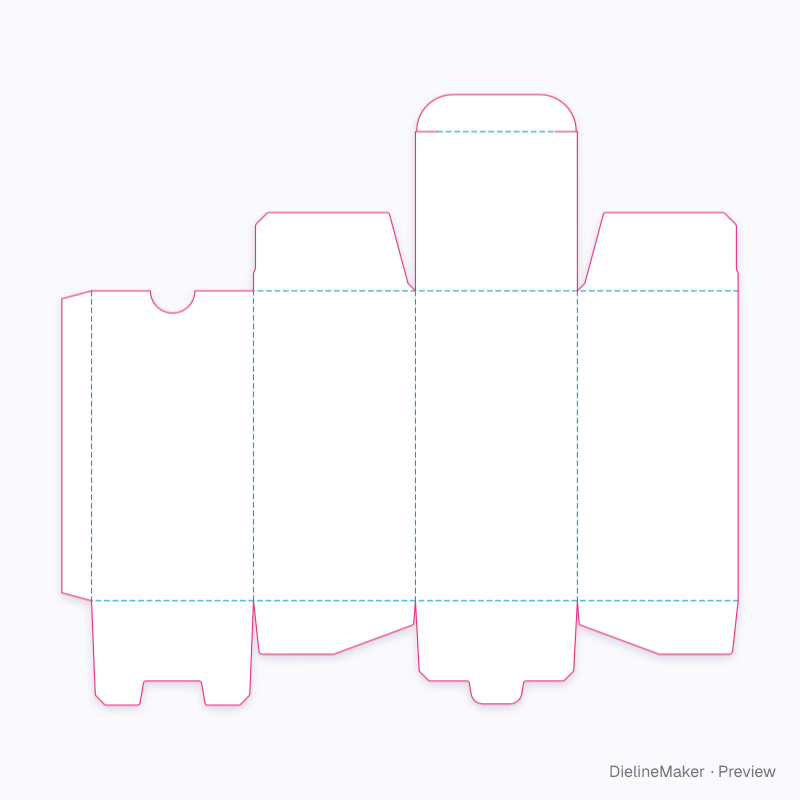

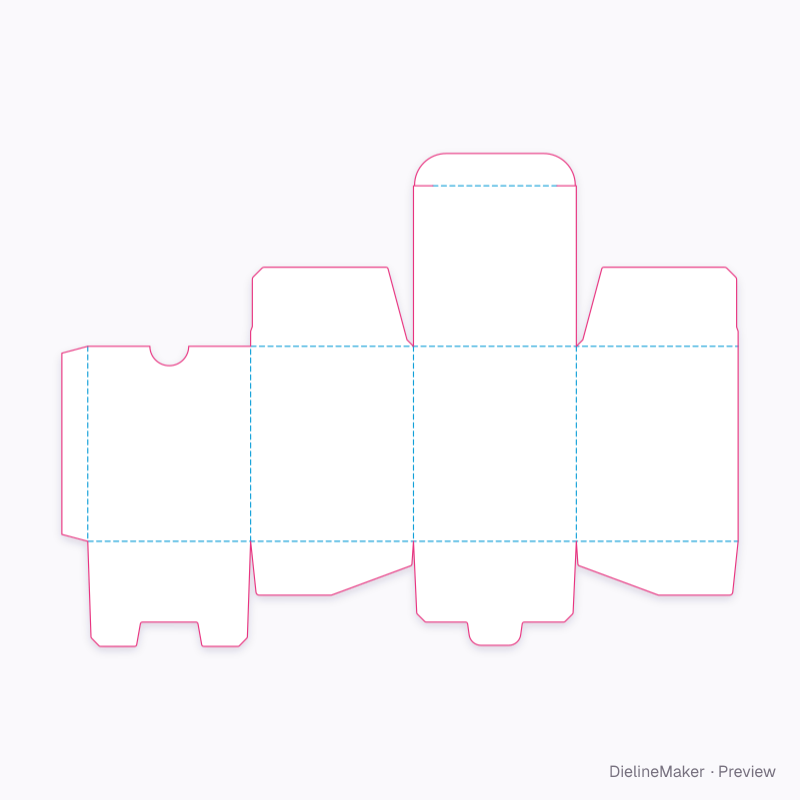

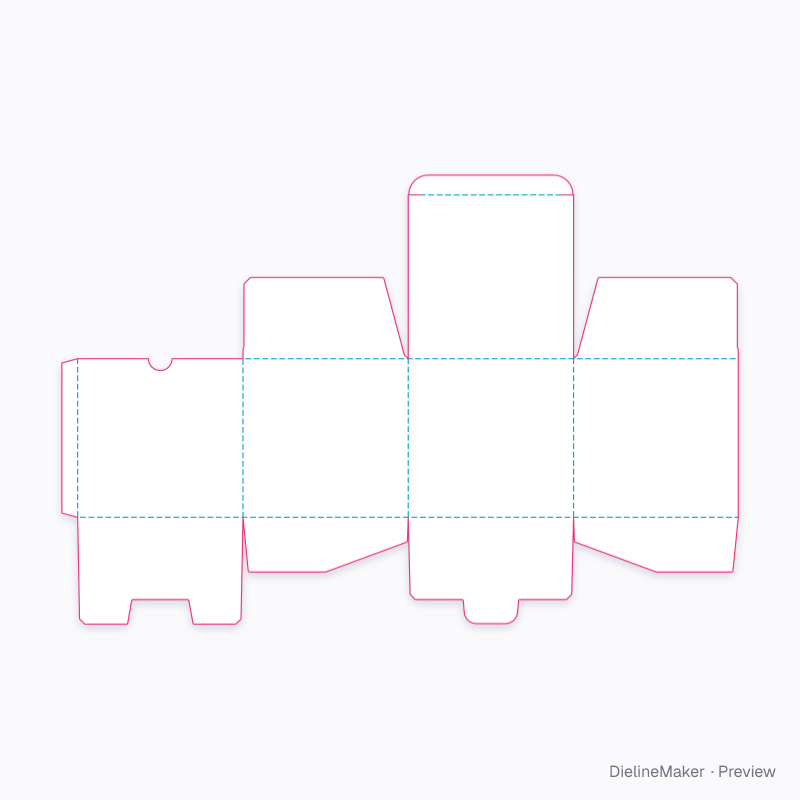

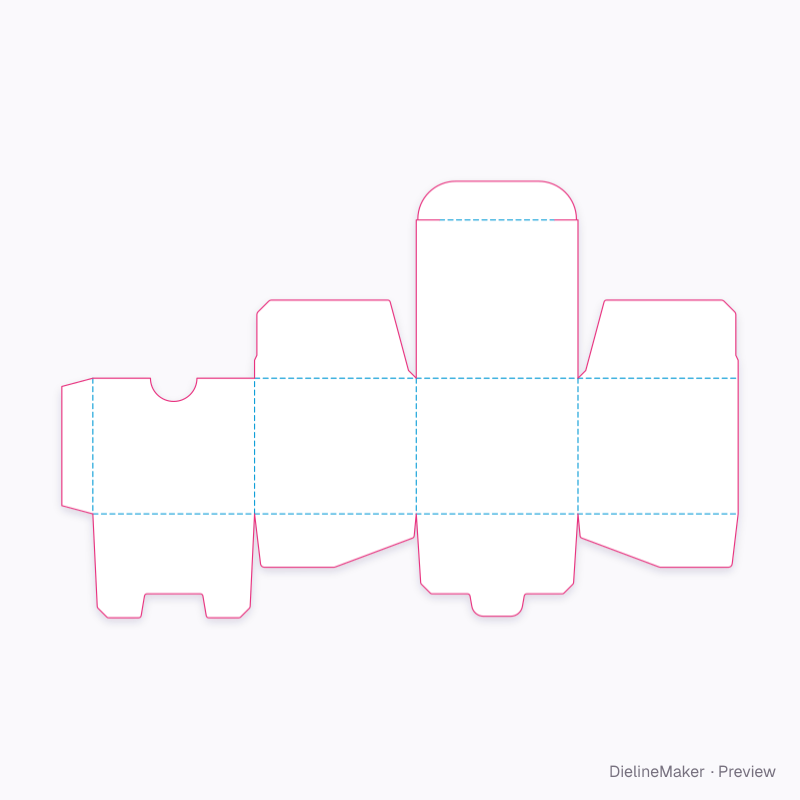

- Good for

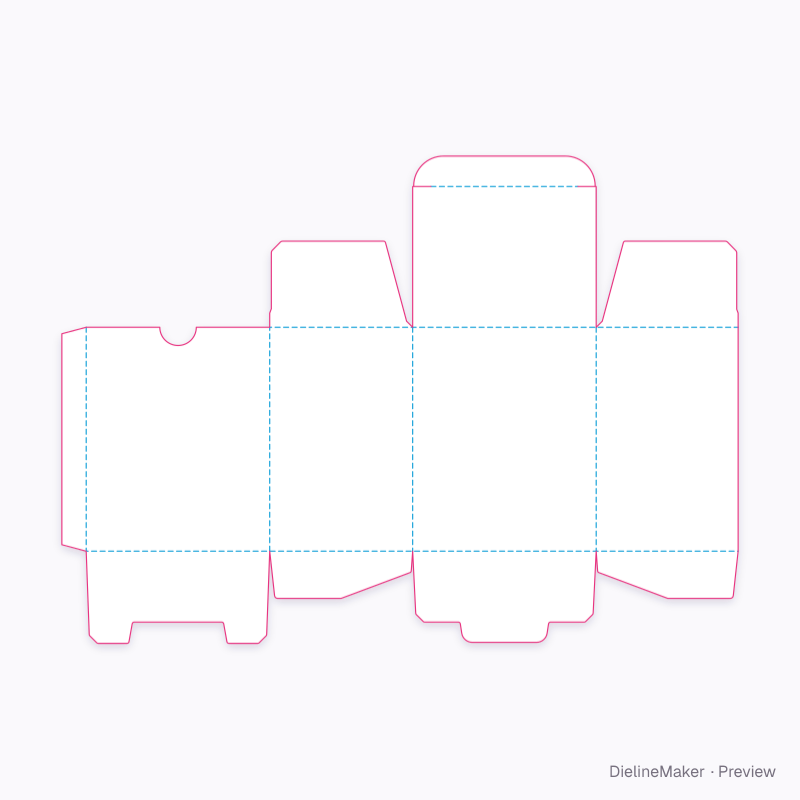

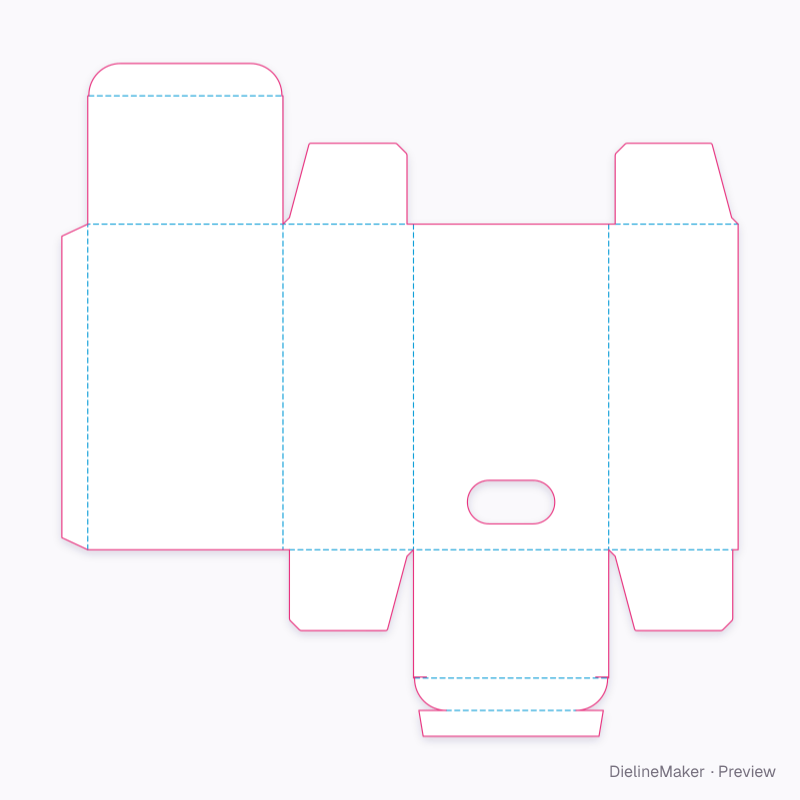

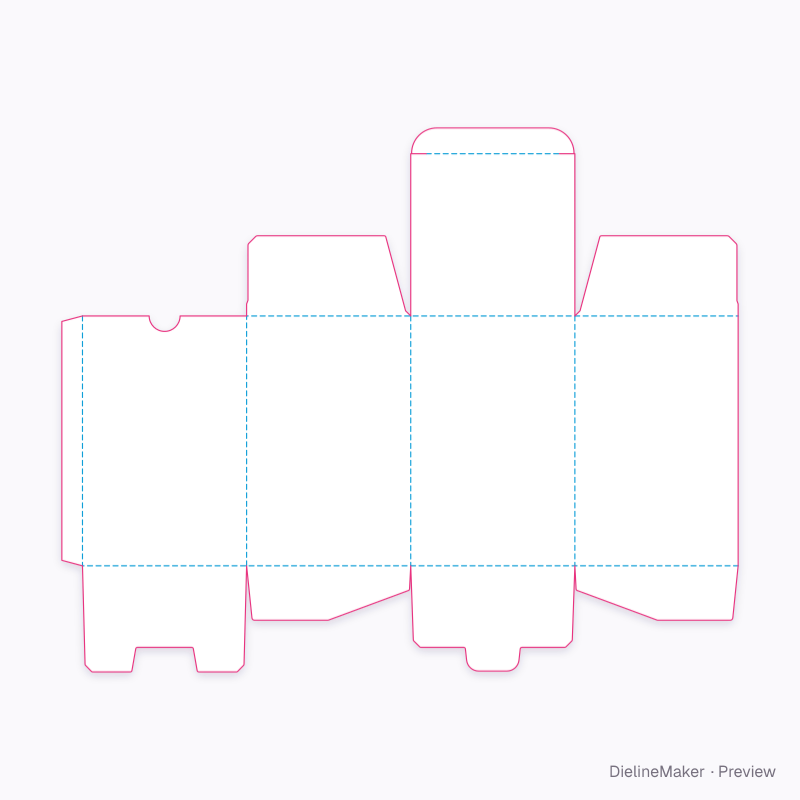

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A55.20.01.03 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 90.5 × 110.5 | L + T × H + T |
| Left side | 70.5 × 110.5 | W + T × H + T |
| Back | 90.5 × 110.5 | L + T × H + T |
| Right side | 70 × 110.5 | W × H + T |
| Glue flap | 12 × 110.5 | – × H + T |
| Top closure | 90.5 × 69.5 | L + T × W − T |
| Top tuck | 89.5 × 15 | L − T × – |
| Top dust flap | 70.5 × 42.5 | W + T × – |
| Top dust flap | 70 × 42.5 | W × – |
| Snap end | 70.5 × 23.3 | W + T × – |
| Snap end | 70 × 23.3 | W × – |
| Snap bottom | 90.5 × 45.5 | L + T × – |
| Snap tuck | 90.5 × 45 | L + T × – |
