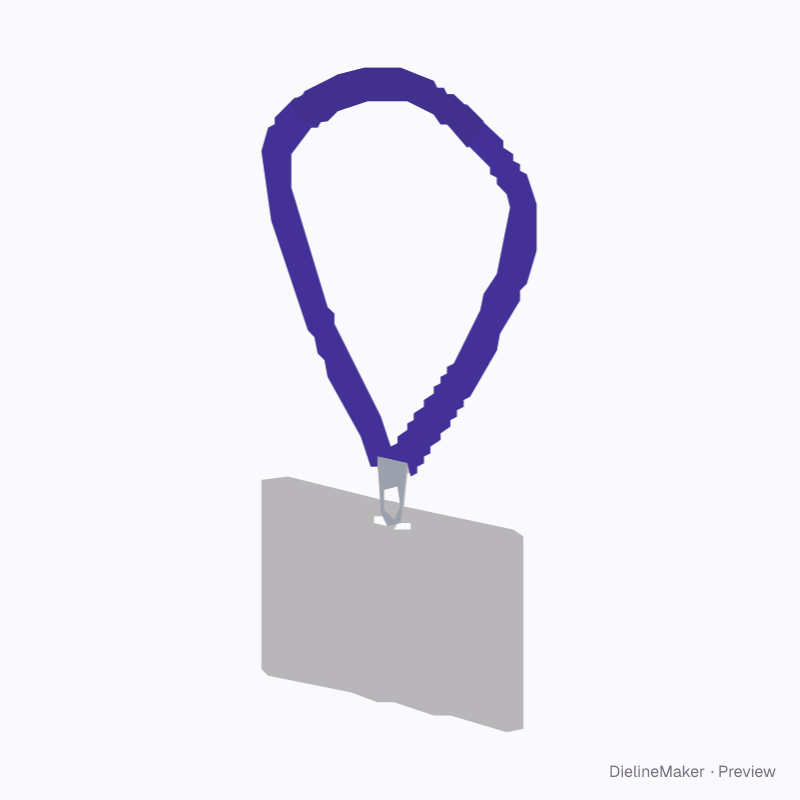

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Landscape event badge dieline
A rounded event card with a real lanyard slot, metal clip and fabric neck loop. Export the card’s trim and slot; the lanyard and clip are visual references. The sample identity is fictional and editable. A ready-sized preset of the id badge + lanyard — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside100 × 70 mm
Outside100 × 70 mm
Flat blank100 × 70 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Badge width 100 · Badge height 70 mm
- Size range
- Badge width 50–130 · Badge height 65–160 mm
- Manufacturing
- 100 × 70 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.007 m² · about 78 up on a 720 × 1020 mm sheet
- Default board
- Opaque white PVC card 0.76 mm · 0.76 mm caliper
- Board options
- PVC 0.76SBS 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Visible lanyard dropmm
The id badge + lanyard family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this landscape event badge yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
