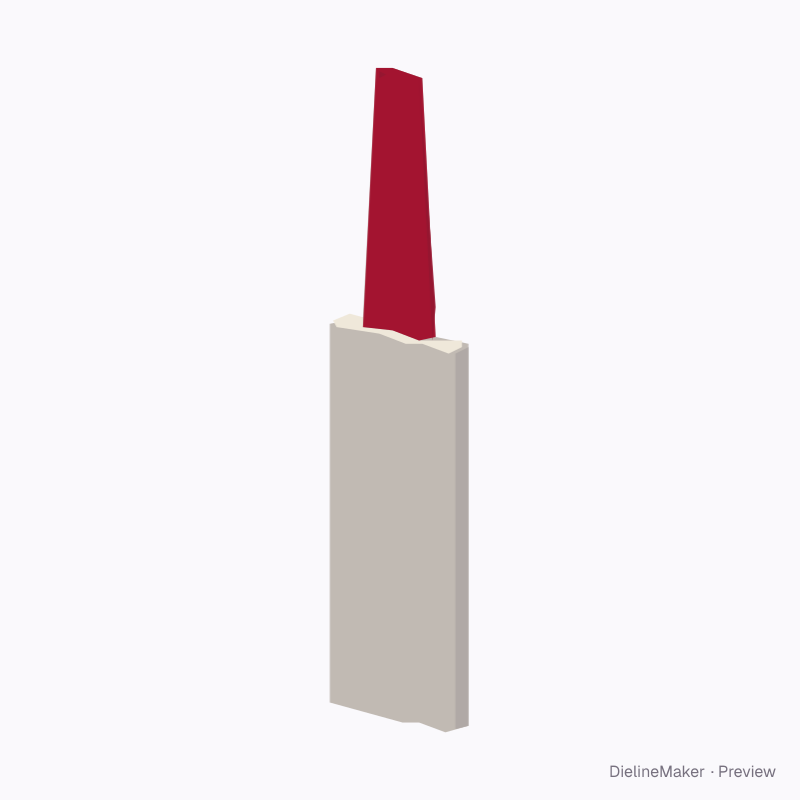

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-INCENSE-01Labels
Incense sleeve pack dieline
A bundle of incense sticks in a capped paper tube, a flat paper sleeve or standing in a holder. Print the tube wrap or the sleeve front. A ready-sized preset of the incense sticks (tube, sleeve or holder) — change its size and the cut outline, bleed and safe area are redrawn to match.
InsideØ 50 × 230 mm
OutsideØ 50 × 230 mm
Flat blank50 × 138 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-INCENSE-01
- Inside size
- Pack width / tube diameter 50 · Stick length 230 mm
- Size range
- Pack width / tube diameter 15–80 · Stick length 100–400 mm
- Manufacturing
- Ø 50 × 230 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.007 m² · about 84 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for

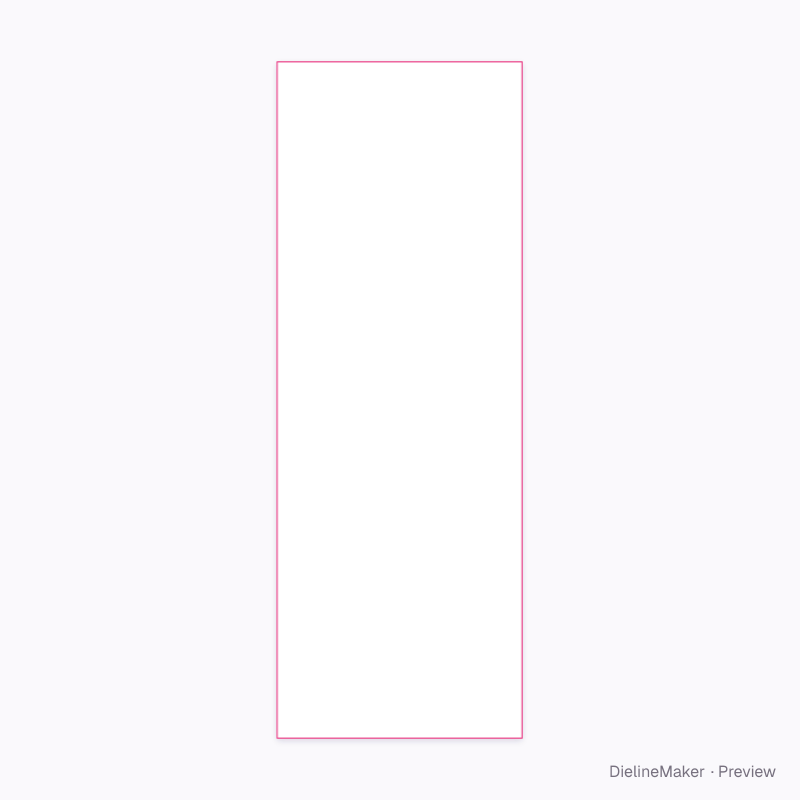

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Pack3 options
- Visible stickscount
- Stick colour5 options

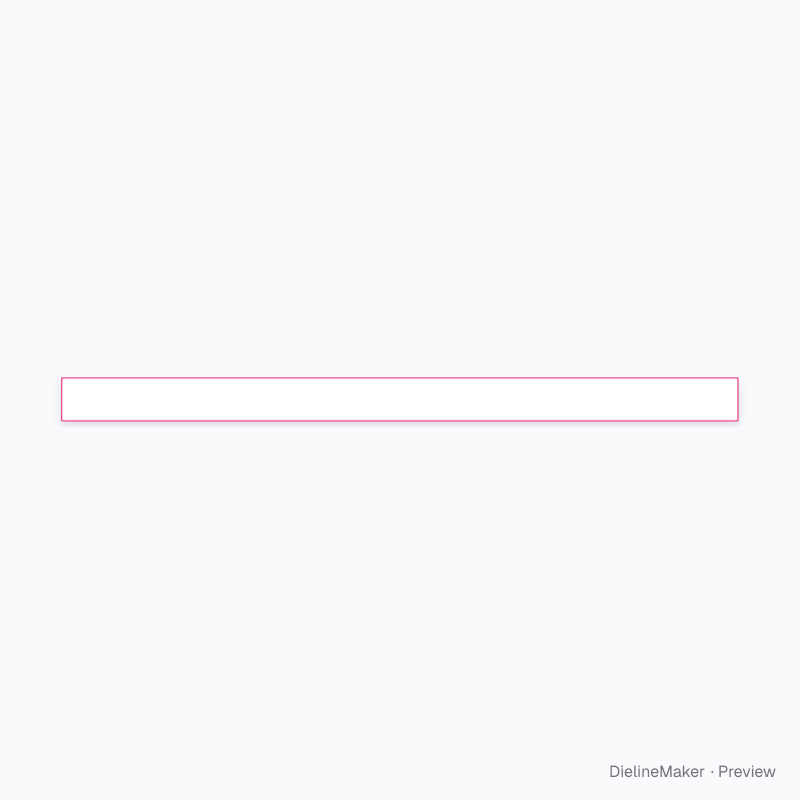

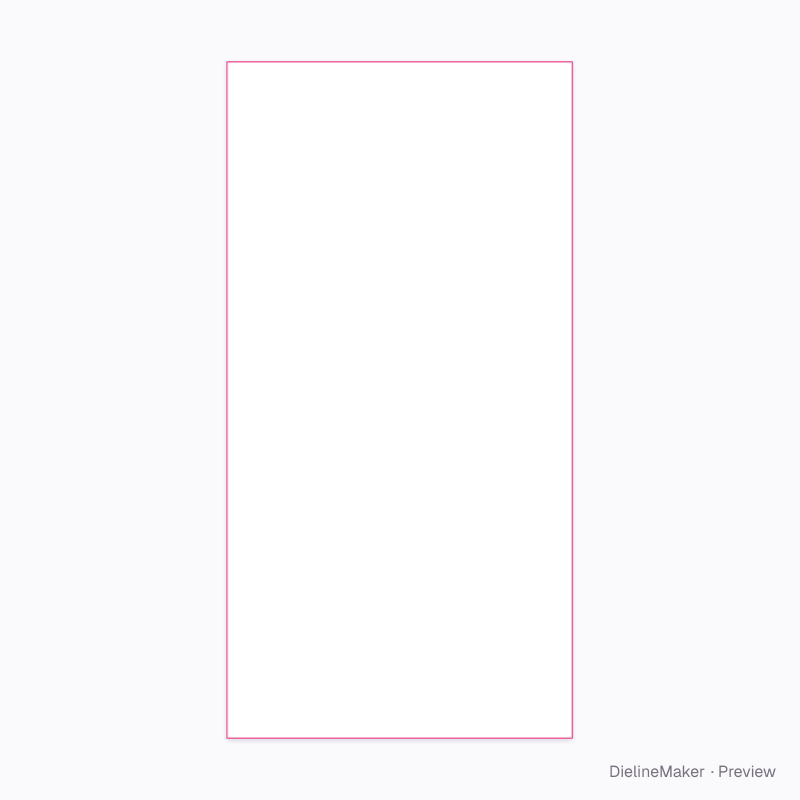

The incense sticks (tube, sleeve or holder) family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this incense sleeve pack yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
